Toyota Lexus RC Series

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

21 part groups · 5 illustrations

Illustrations

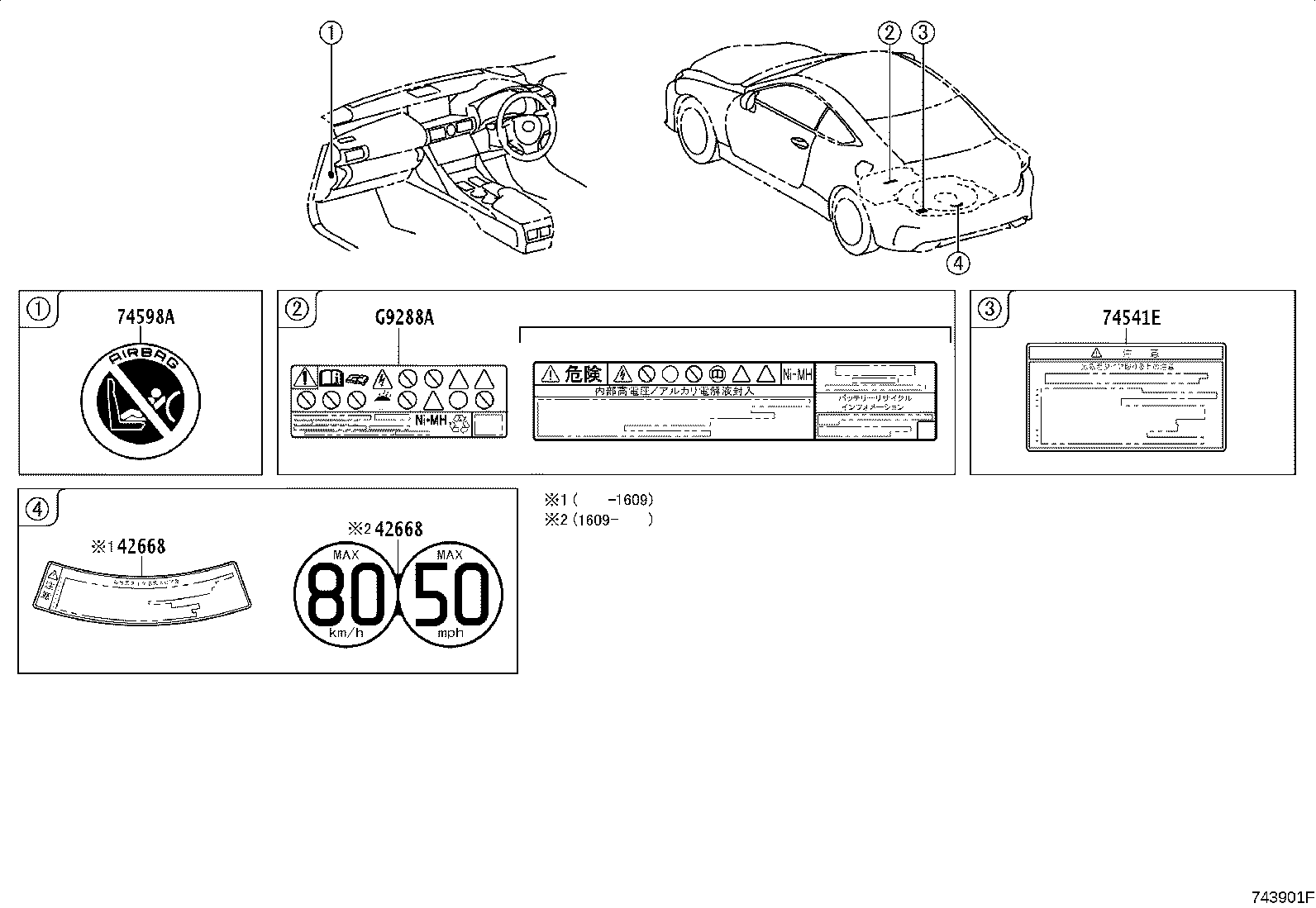

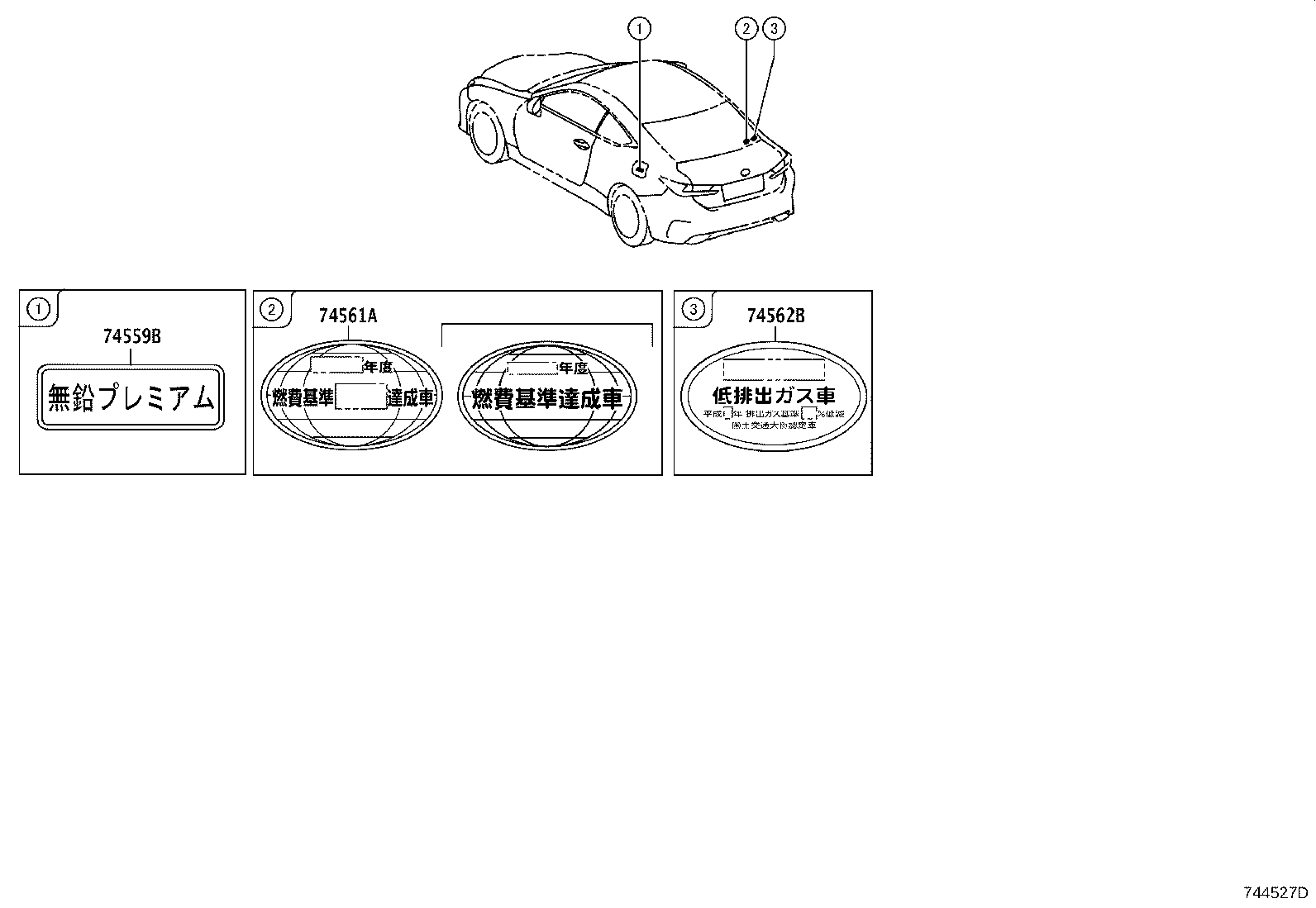

Figure 745796A 745796A 2014-09 → — Figure 743900F 743900F 2014-09 → — Figure 746240A 746240A 2014-09 → — Figure 744527D 744527D 2014-09 → — Figure 743901F 743901F 2014-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11286B Plate, Engine Specification
11293D Label, Engine Caution
11295B Label, Engine Service Notice, NO.1
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
42668 Label, Compact Spare Tire Caution
45248A Label, Steering Actuator Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74532A Plate, Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
82685D Plate, Caution
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
