Toyota Lexus RC Series

2014-09 → present · chassis ASC10,AVC10,GSC10 · catalogue 245120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

6 part groups · 3 illustrations

Illustrations

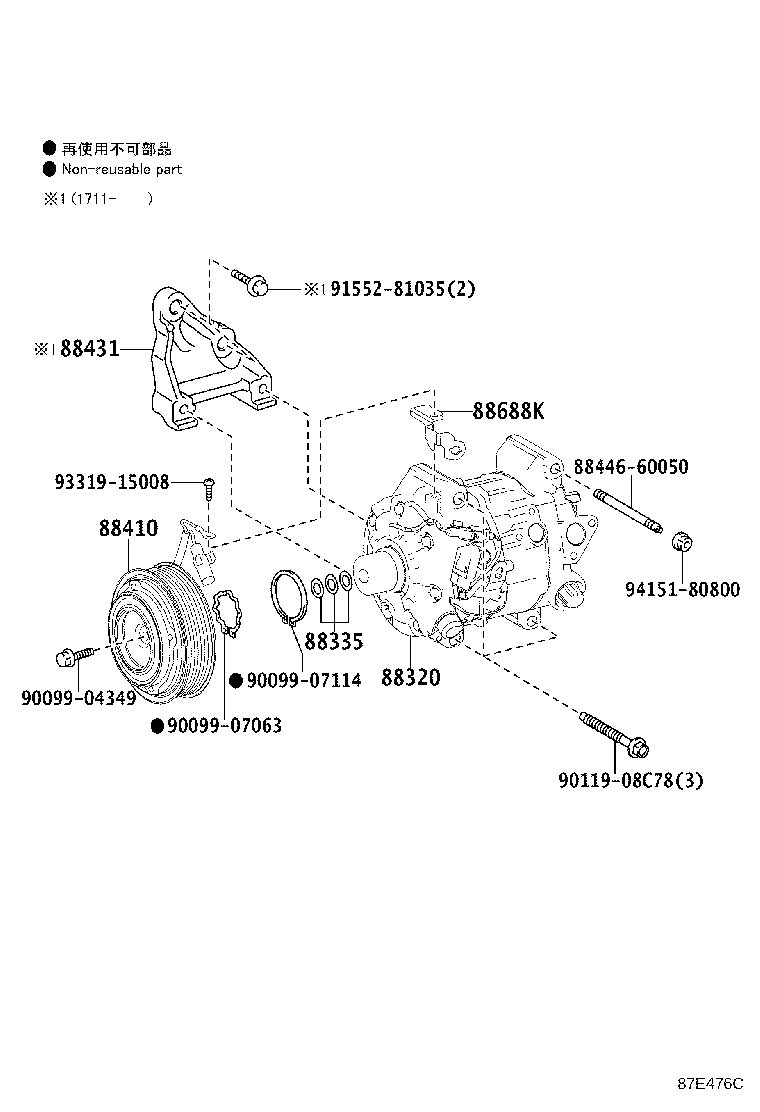

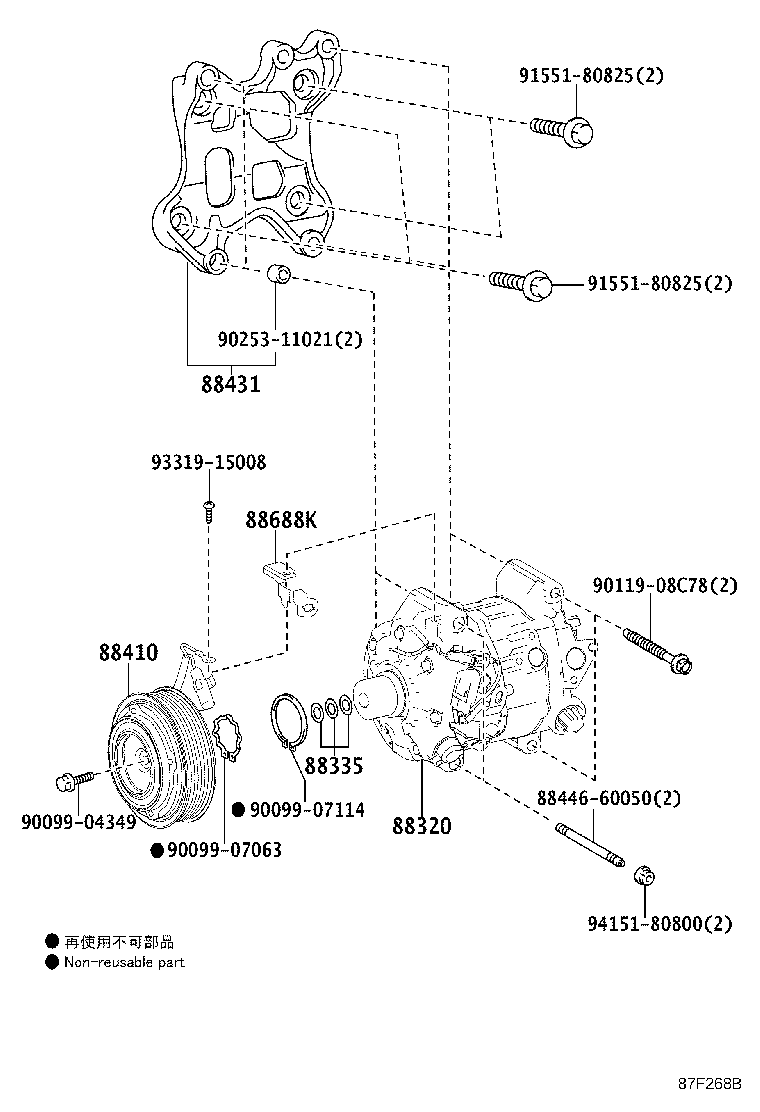

Figure 87E477A 87E477A 2014-09 → — Figure 87E476C 87E476C 2014-09 → — Figure 87F268B 87F268B 2015-10 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
