Toyota Lexus IS250C/350C

2009-04 → 2014-08 · chassis GSE2# · catalogue 246110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

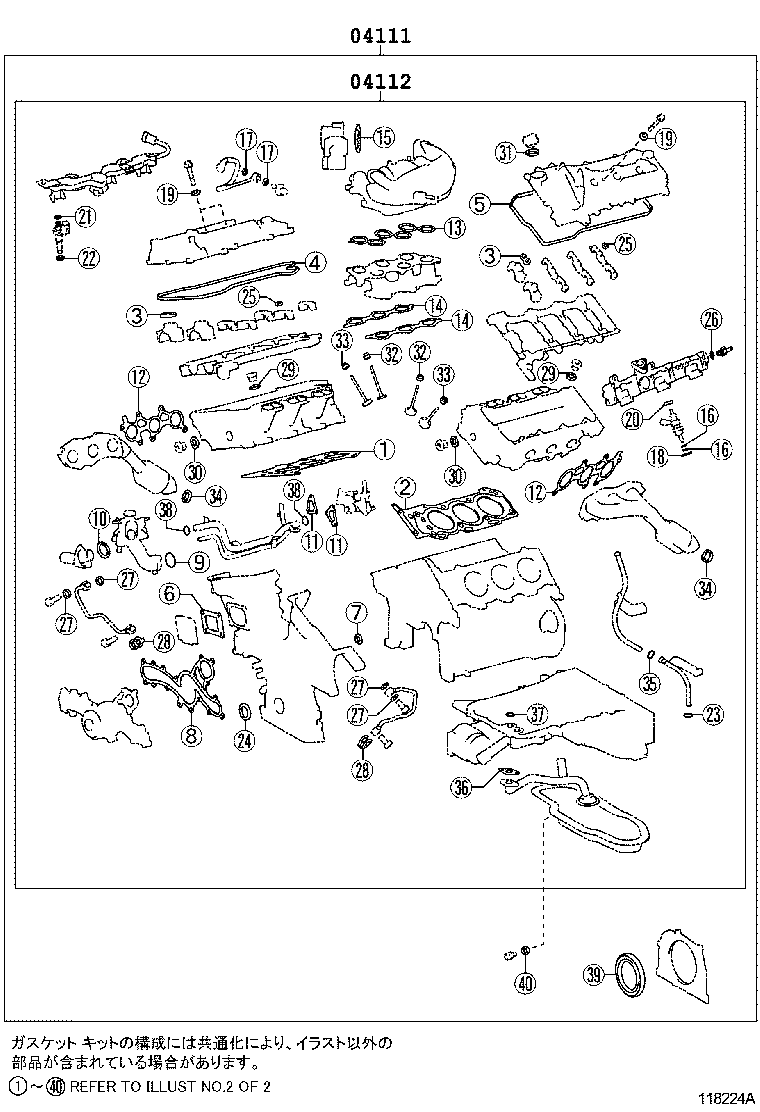

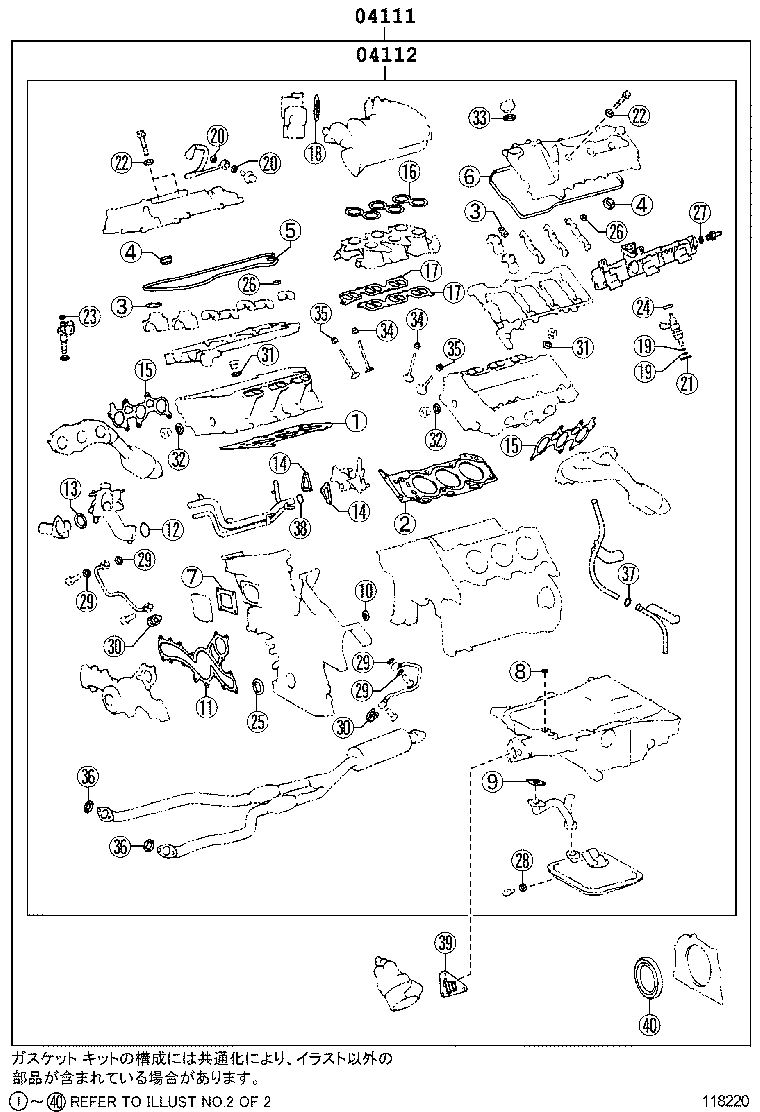

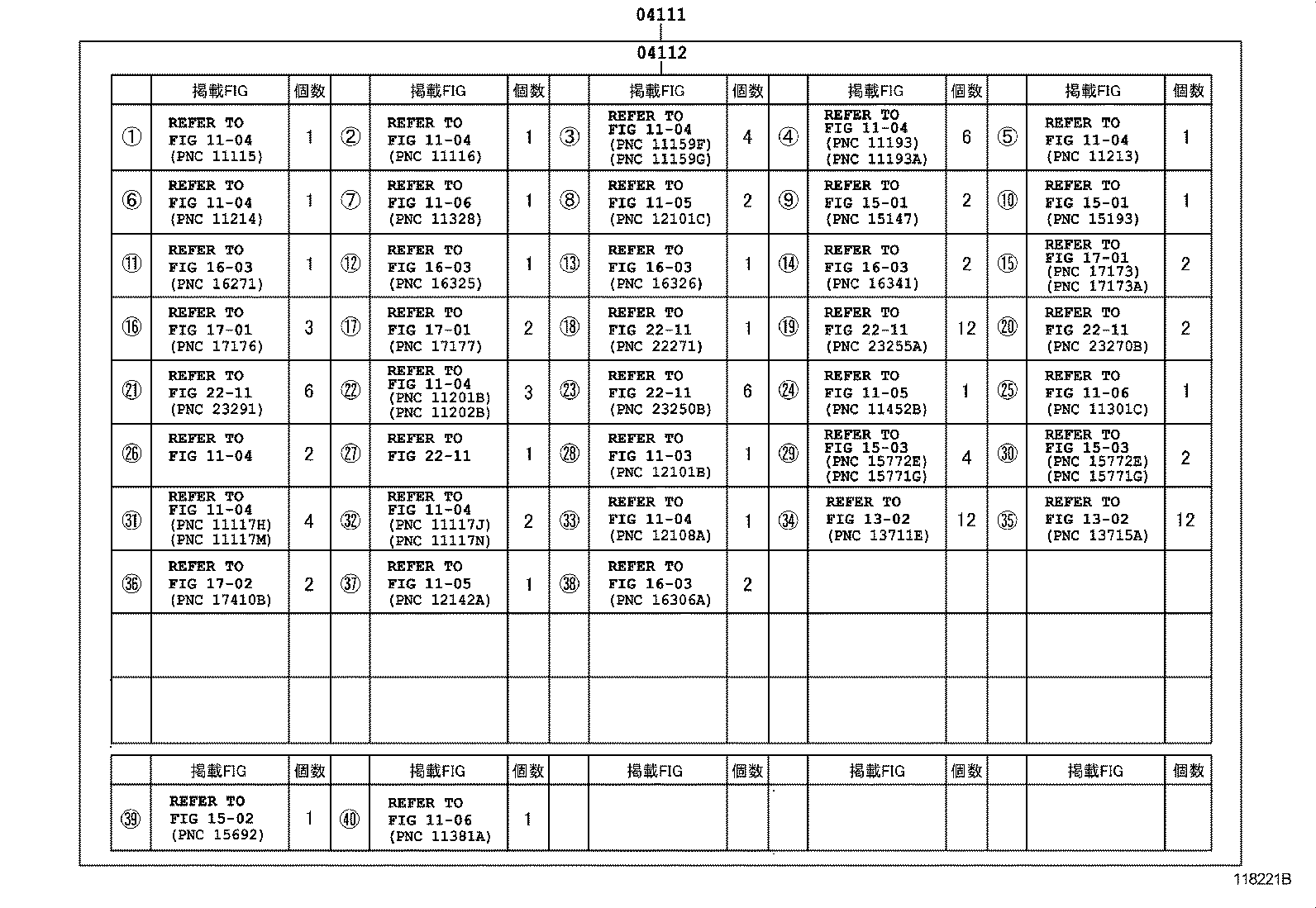

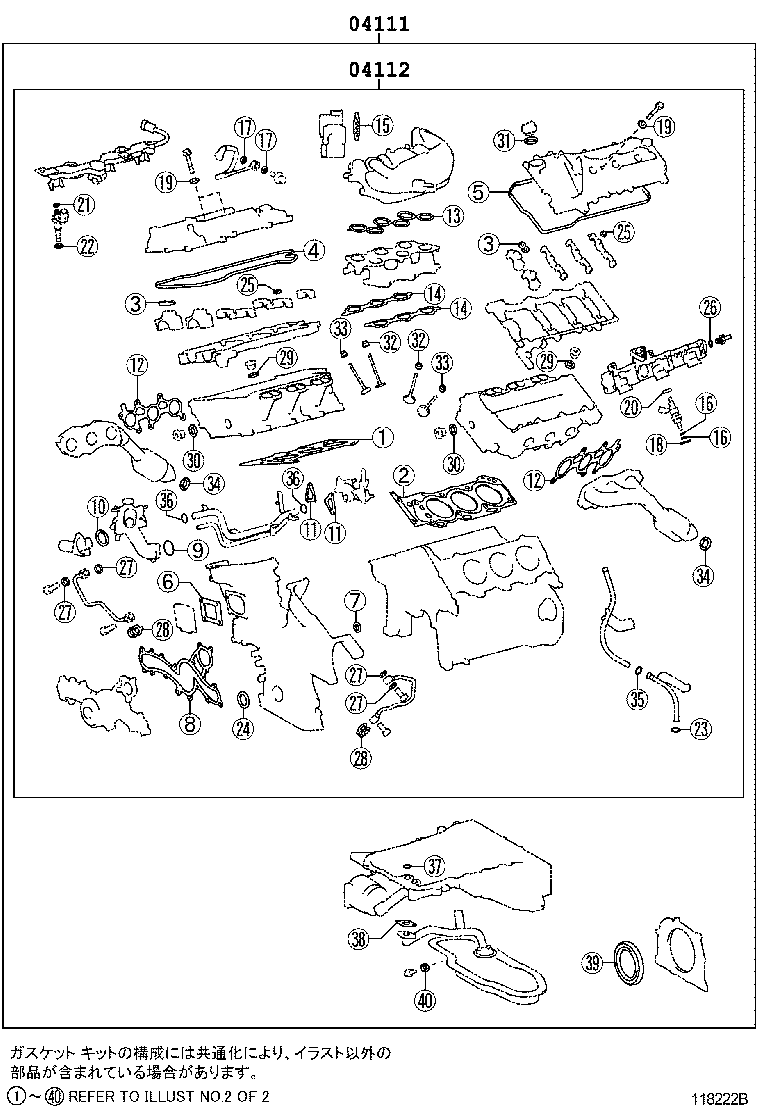

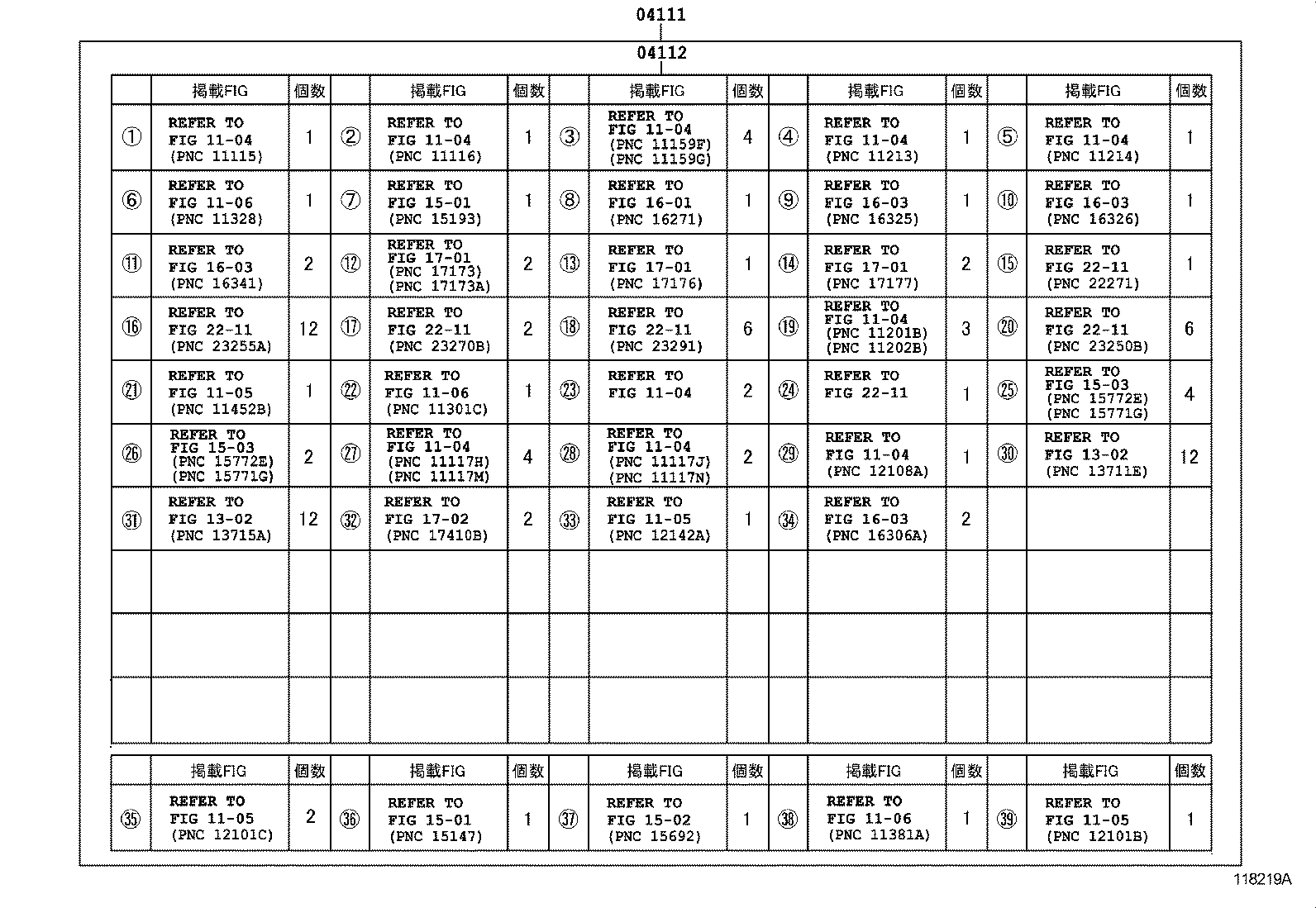

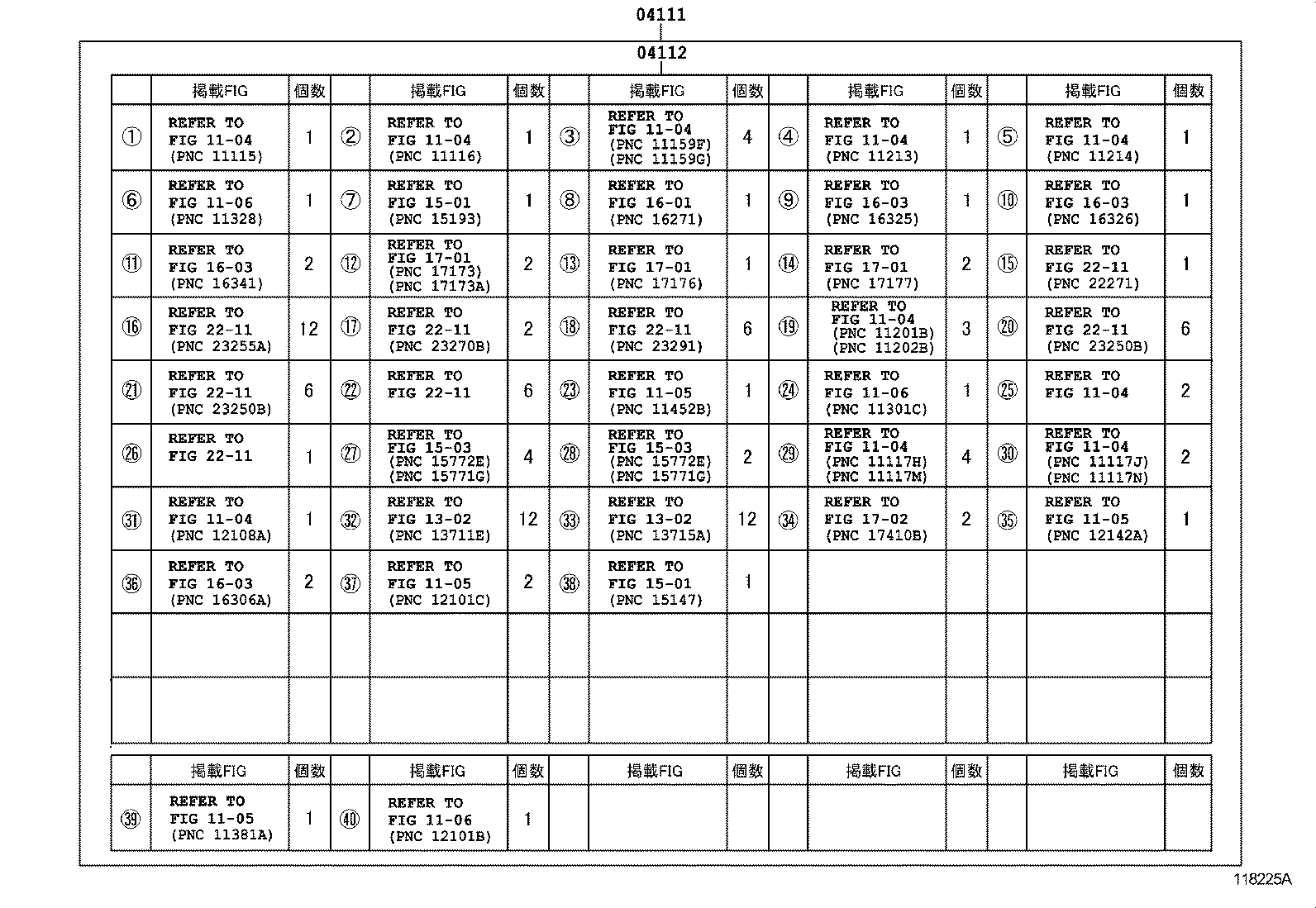

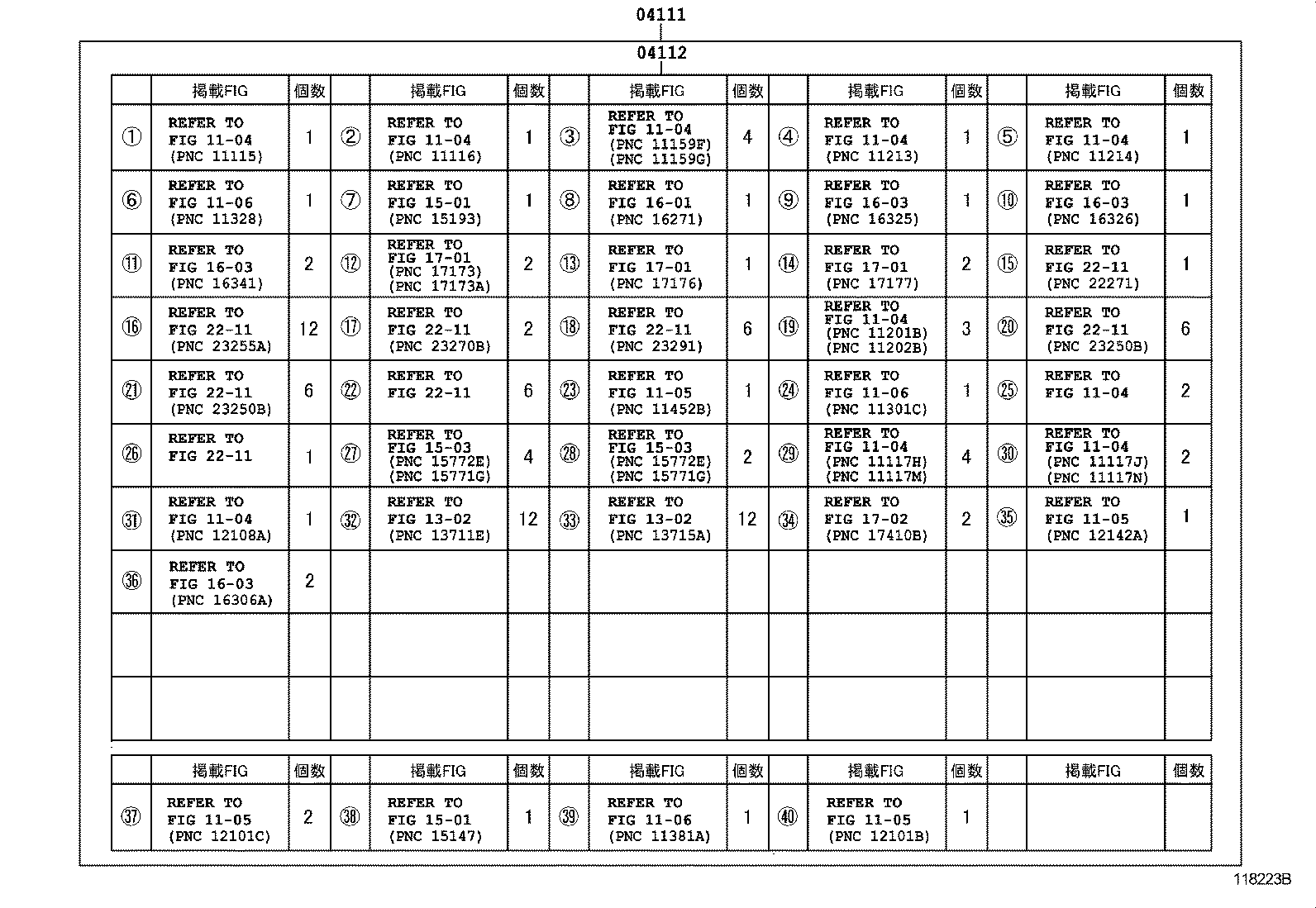

Figure 118218 118218 2009-04 → 2011-08 Figure 118219A 118219A 2009-04 → 2011-08 Figure 118220 118220 2011-08 → — Figure 118221B 118221B 2011-08 → — Figure 118222B 118222B 2010-08 → 2011-08 Figure 118223B 118223B 2010-08 → 2011-08 Figure 118224A 118224A 2011-08 → — Figure 118225A 118225A 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
