Toyota Lexus IS250C/350C

2009-04 → 2014-08 · chassis GSE2# · catalogue 246110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 2 illustrations

Illustrations

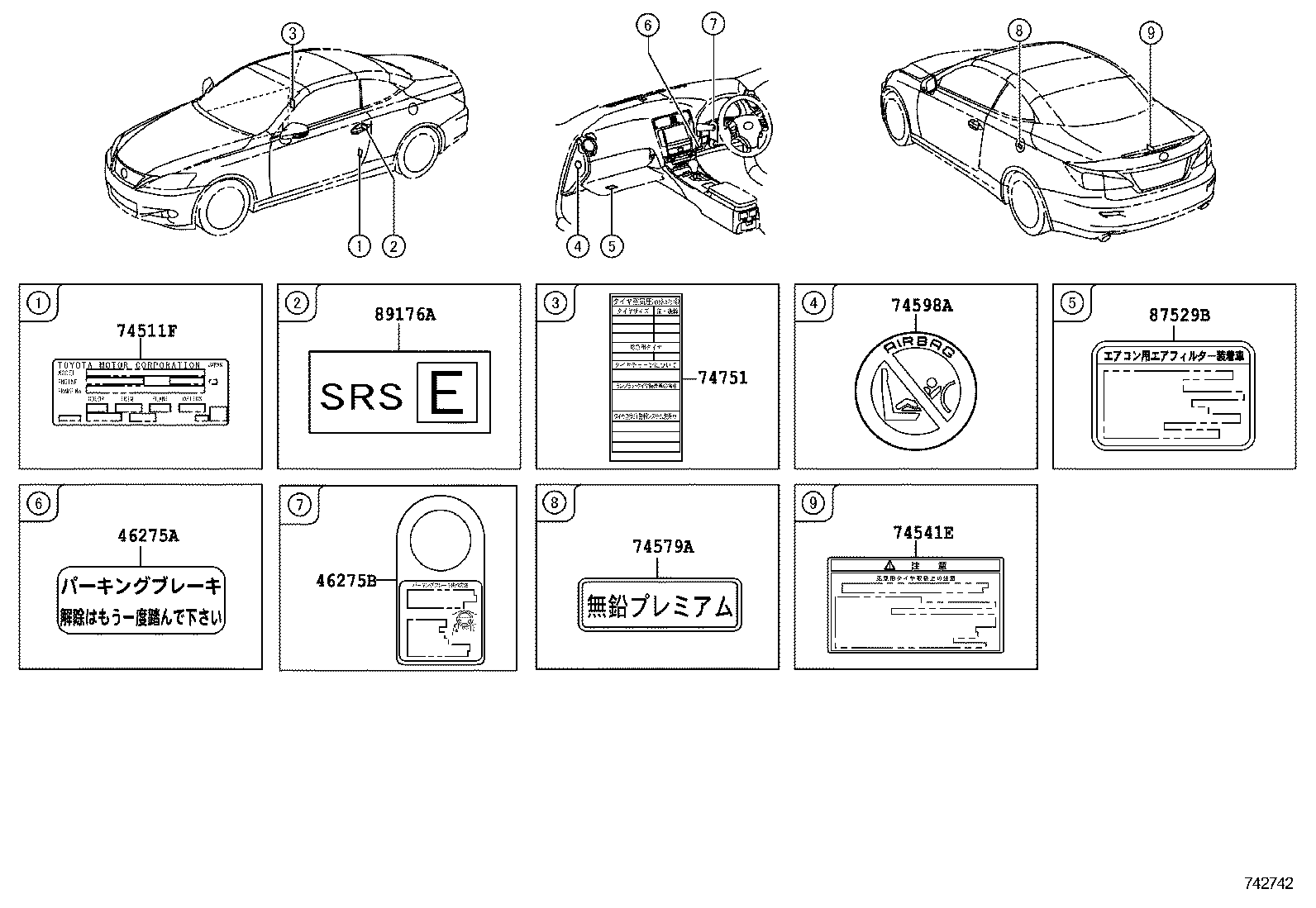

Figure 742741B 742741B 2009-04 → — Figure 742742 742742 2009-04 → —

Part groups

PNCDescription
11291B Plate, Engine Name
11296D Label, Engine Service Information
16793E Label, Cooling Fan Caution
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
