Toyota Lexus IS250C/350C

2009-04 → 2014-08 · chassis GSE2# · catalogue 246110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 2 illustrations

Illustrations

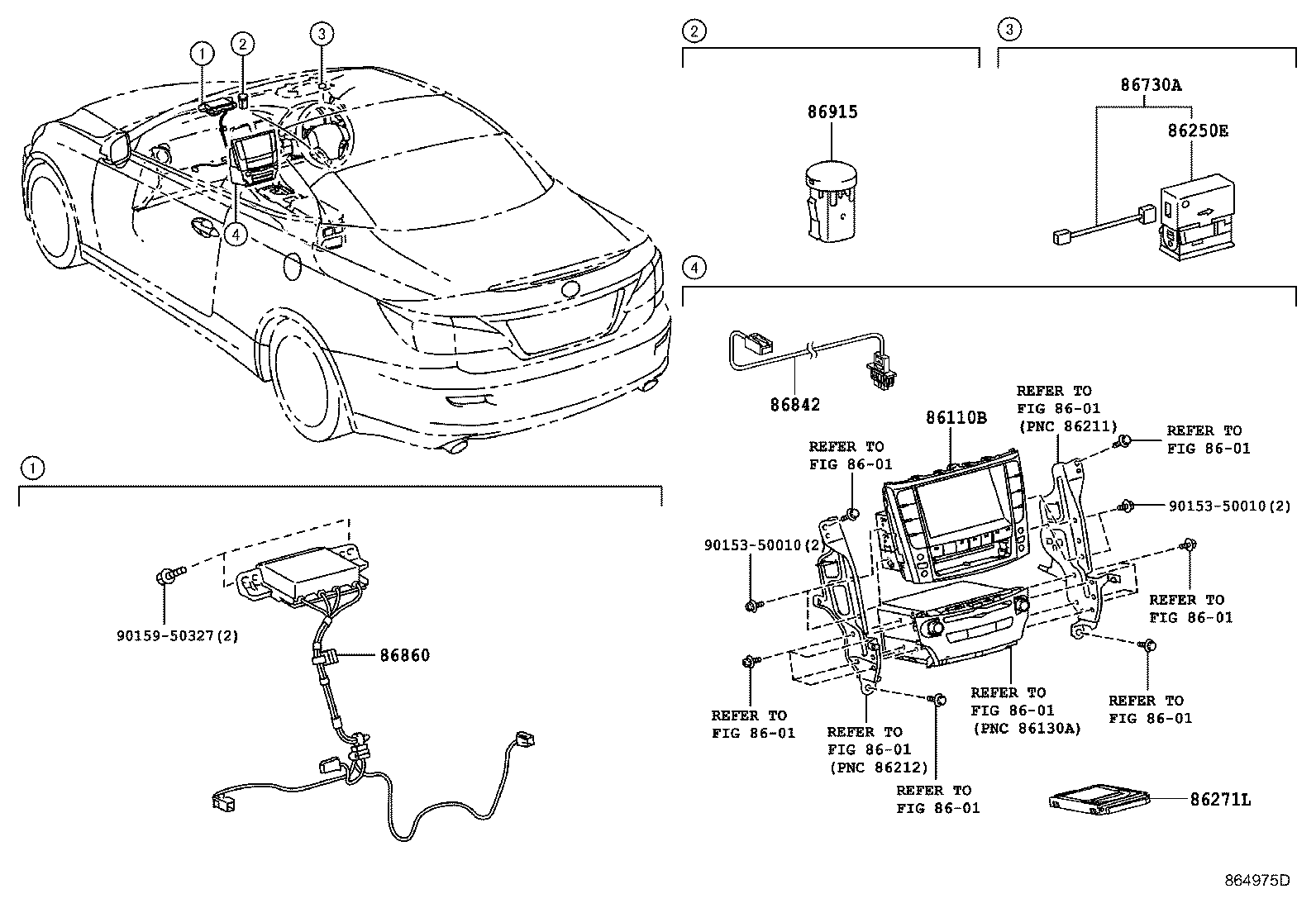

Figure 863850G 863850G 2004-09 → 2012-08 Figure 864975D 864975D 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86250E Microphone Assy, Amplifier
86271L Hard Disc
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86870A Antenna Assy, Gps & Vics
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
