Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246120 · Japan
Supported model
Data version 2019-05
Standard Tool
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09105 | Box Set, Jack |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120C | Bag,Tool, NO.2 |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09151 | Wrench, Hub Bolt Box |
| 0915A | Socket, Hub Bolt Temporary Setting |
| 0915B | Pin, Wheel Guide |

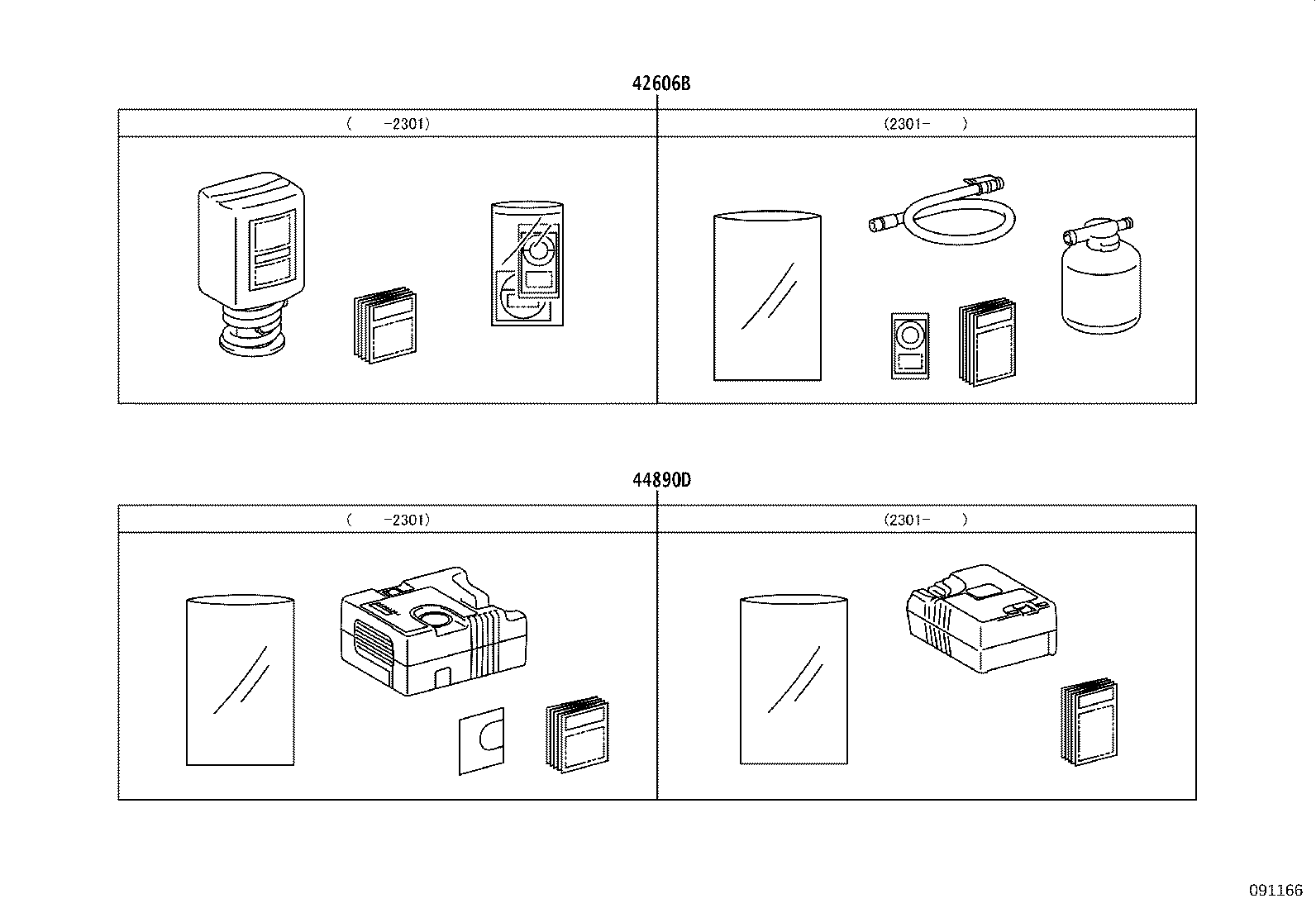

| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 51960A | Hook Assy, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
