Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246120 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

1 part groups · 2 illustrations

Illustrations

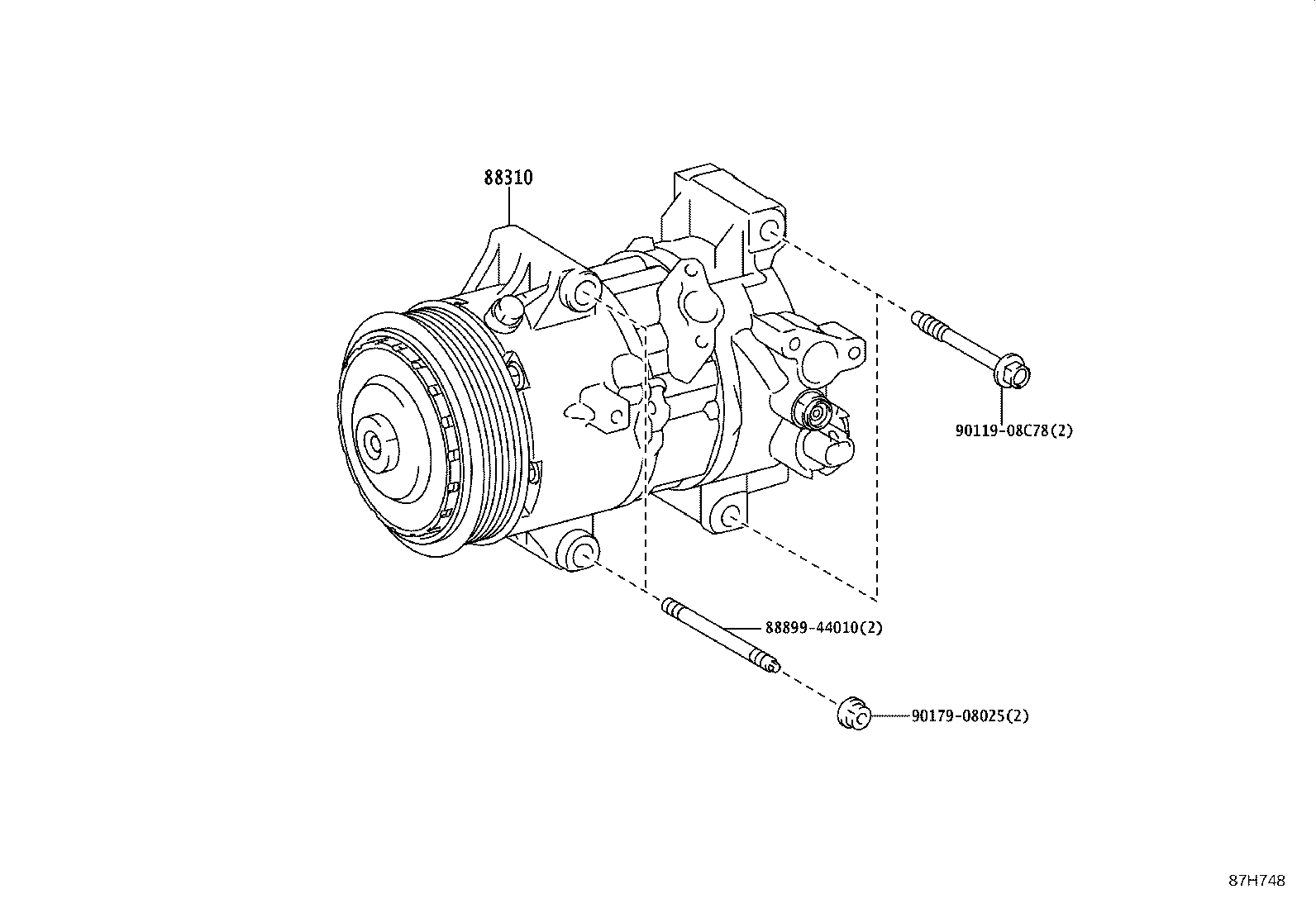

Figure 87E516A 87E516A 2014-09 → 2019-02 Figure 87H748 87H748 2019-03 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
