Toyota Carina ED
1985-08 → 1987-08 · chassis ST16# · catalogue 251110 · Japan
Discontinued model
Data version 1987-12
Manifold

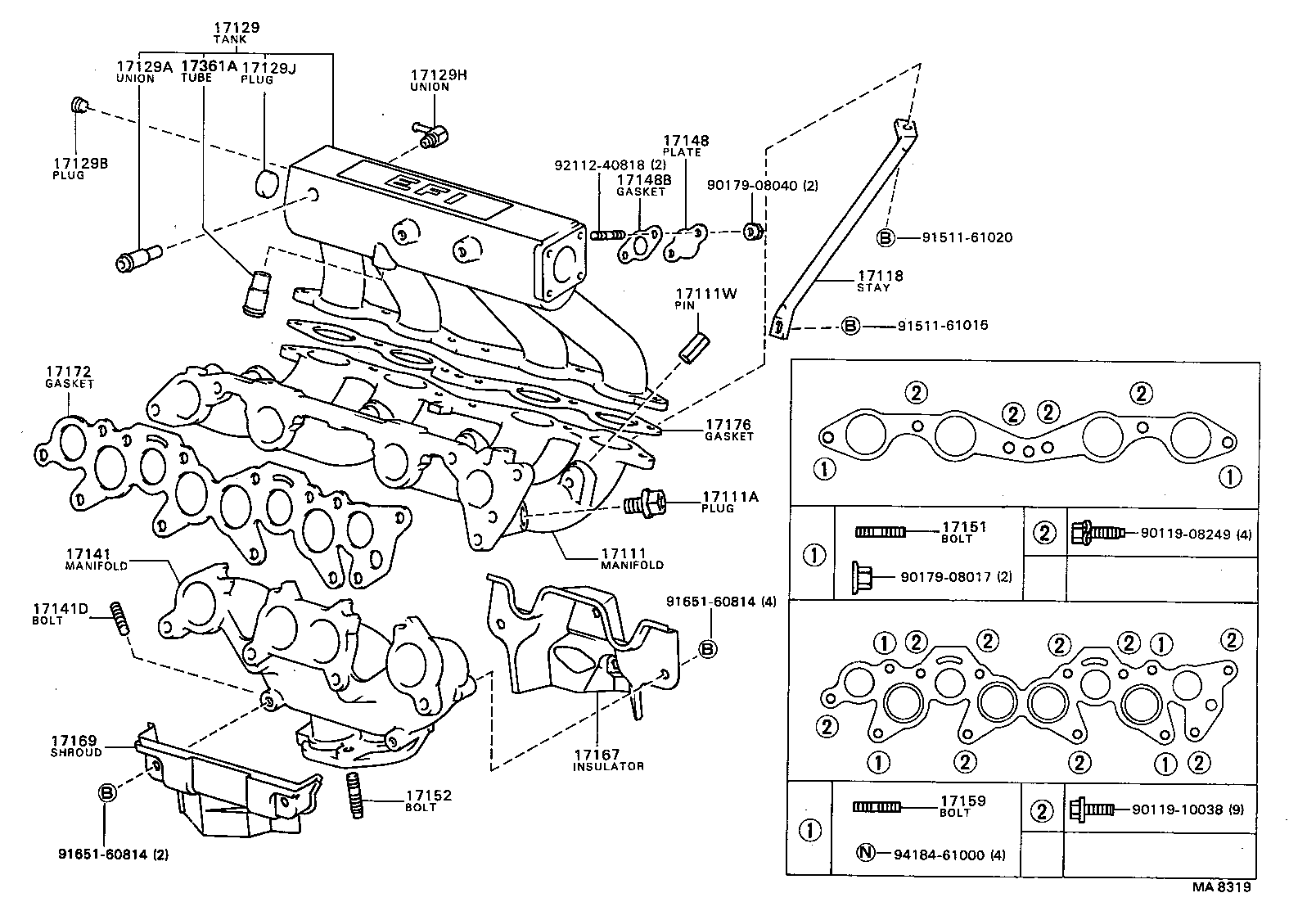

41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 17110A | Union, Vacuum Hose |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111F | Union(FOR VACUUM HOSE TO CARBURETOR) |
| 17111W | Pin, Slotted Spring(FOR INTAKE MANIFOLD) |
| 17114 | Plate, Intake Manifold Hole Cover |
| 17115 | Gasket, Intake Manifold Hole Cover |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129B | Plug |
| 17129H | Union, NO.4 |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17148B | Gasket, Egr Inlet |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17361A | Tube, Air(FOR EFI) |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25509 | Insulator Sub-assy, Manifold Convertor |
| 25576 | Gasket, Manifold Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
