Toyota Carina ED
1985-08 → 1987-08 · chassis ST16# · catalogue 251110 · Japan
Discontinued model
Data version 1987-12

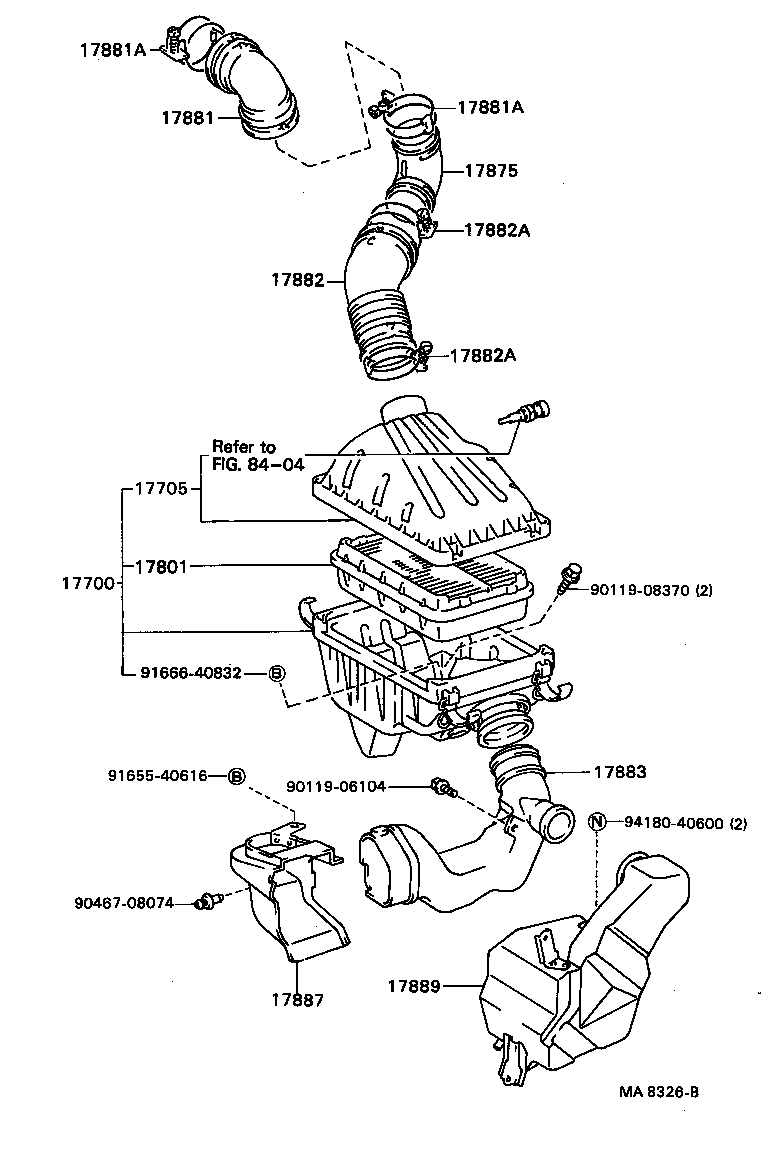

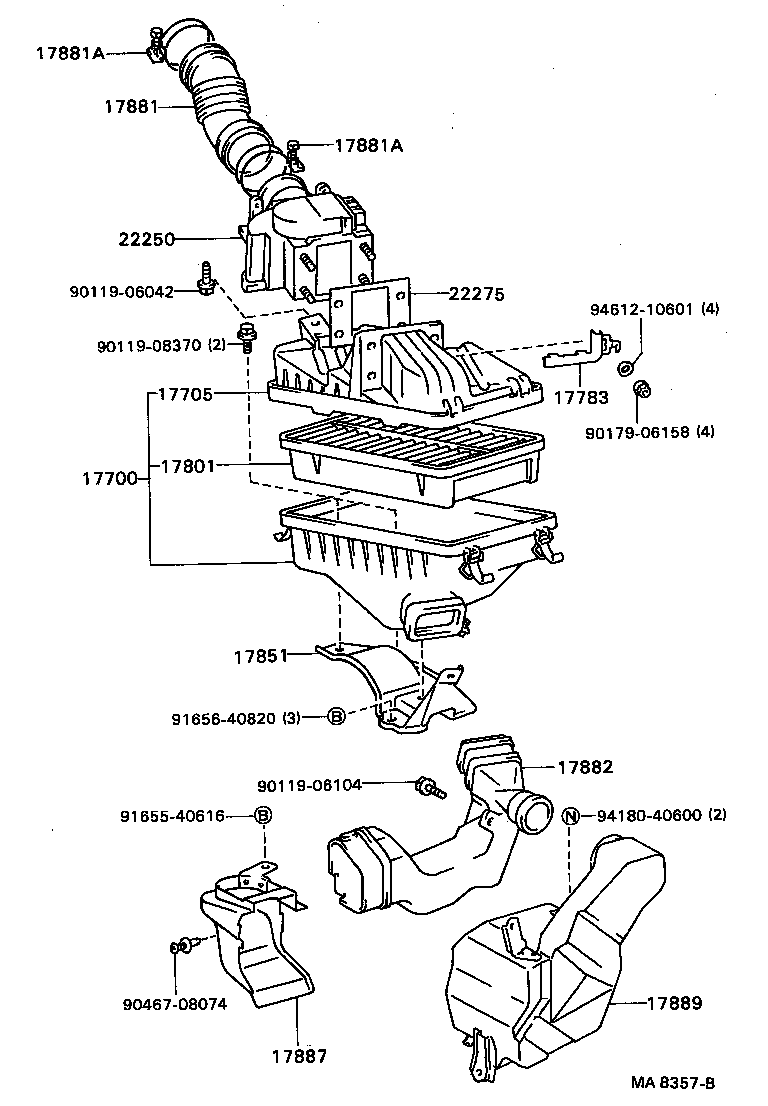

Air Cleaner
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17783 | Plate, Air Cleaner Baffle |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805D | Grommet(FOR INTAKE AIR CONNECTOR) |
| 17805E | Collar(FOR INTAKE AIR CONNECTOR) |
| 17849 | Gasket, Intake Air Connector |
| 17851 | Bracket, Air Cleaner Support |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17887 | Cover, Air Cleaner Hose |
| 17889 | Box, Air Cleaner Hose, NO.2 |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
