Toyota Carina ED
1985-08 → 1987-08 · chassis ST16# · catalogue 251110 · Japan
Discontinued model
Data version 1987-12

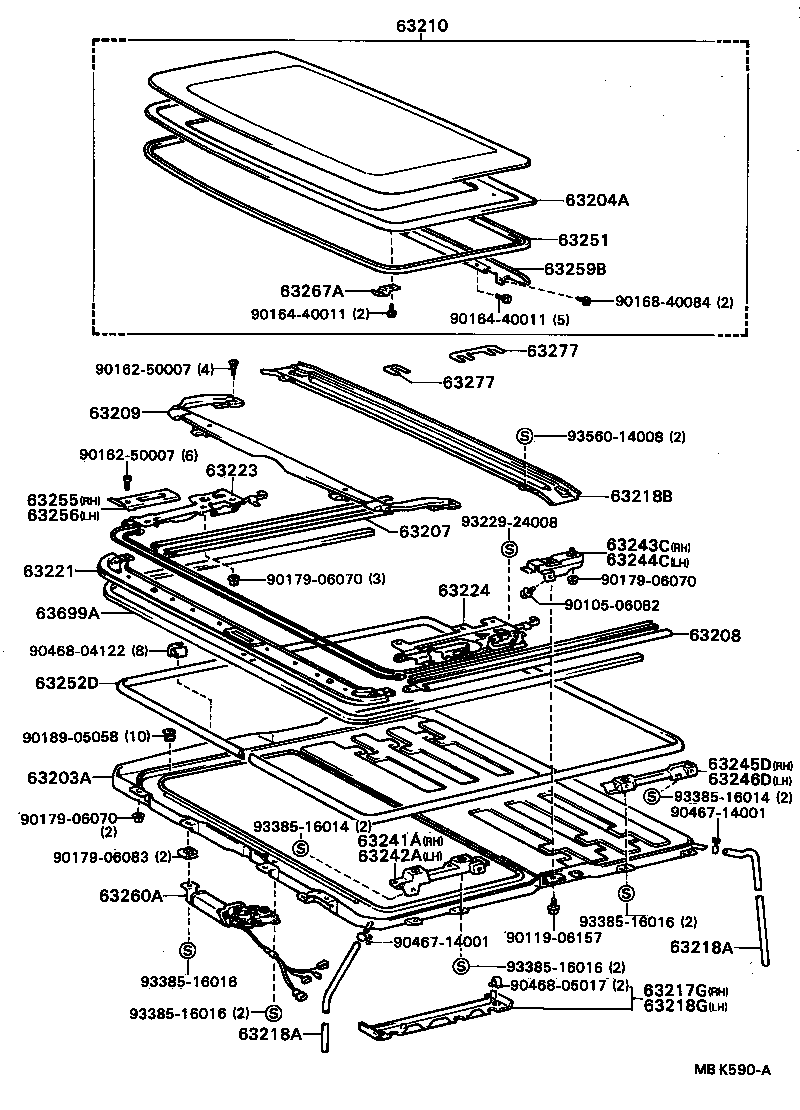

Roof Panel & Back Window Glass
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63111 | Panel, Roof |
| 63133 | Frame, Back Window Opening, Upper |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63204A | Panel Sub-assy, Sliding Roof, Inner |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63210 | Glass Sub-assy, Sliding Roof OR Removable Roof |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218B | Channel, Roof Drip, Rear |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63259B | Holder, Sliding Roof Weatherstrip |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63277 | Shim, Sliding Roof Rail |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
| 64165B | Cover, Upper Back Panel Hole, NO.1 |
| 64166B | Cover, Upper Back Panel Hole, NO.2 |
| 64811 | Glass, Back Window |
| 64818 | Spacer, Back Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
