Toyota Carina ED

1985-08 → 1987-08 · chassis ST16# · catalogue 251110 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 4 illustrations

Illustrations

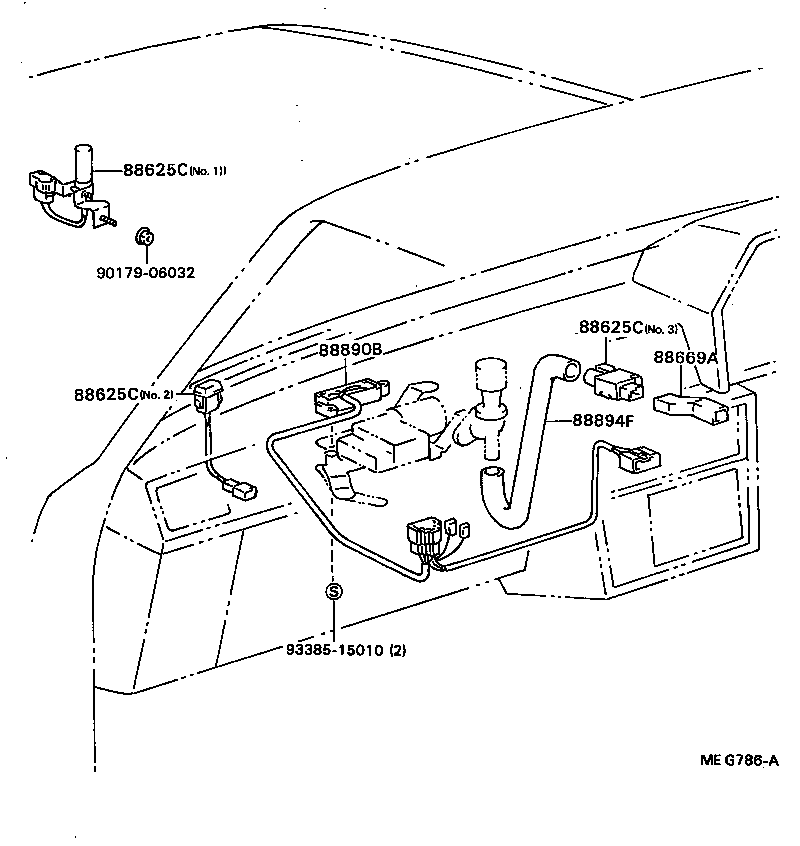

Figure MEG253D MEG253D 1985-08 → — Figure MEG254D MEG254D 1985-08 → — Figure MEG261A MEG261A 1985-08 → — Figure MEG786A MEG786A 1985-08 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81850G Lamp Assy, Indicator
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87284 Resistor Sub-assy, Variable
88605A Harness Sub-assy, Cooler Wiring
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
88890B Switch Assy, Thermostat
88894F Hose, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
