Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 2 illustrations

Illustrations

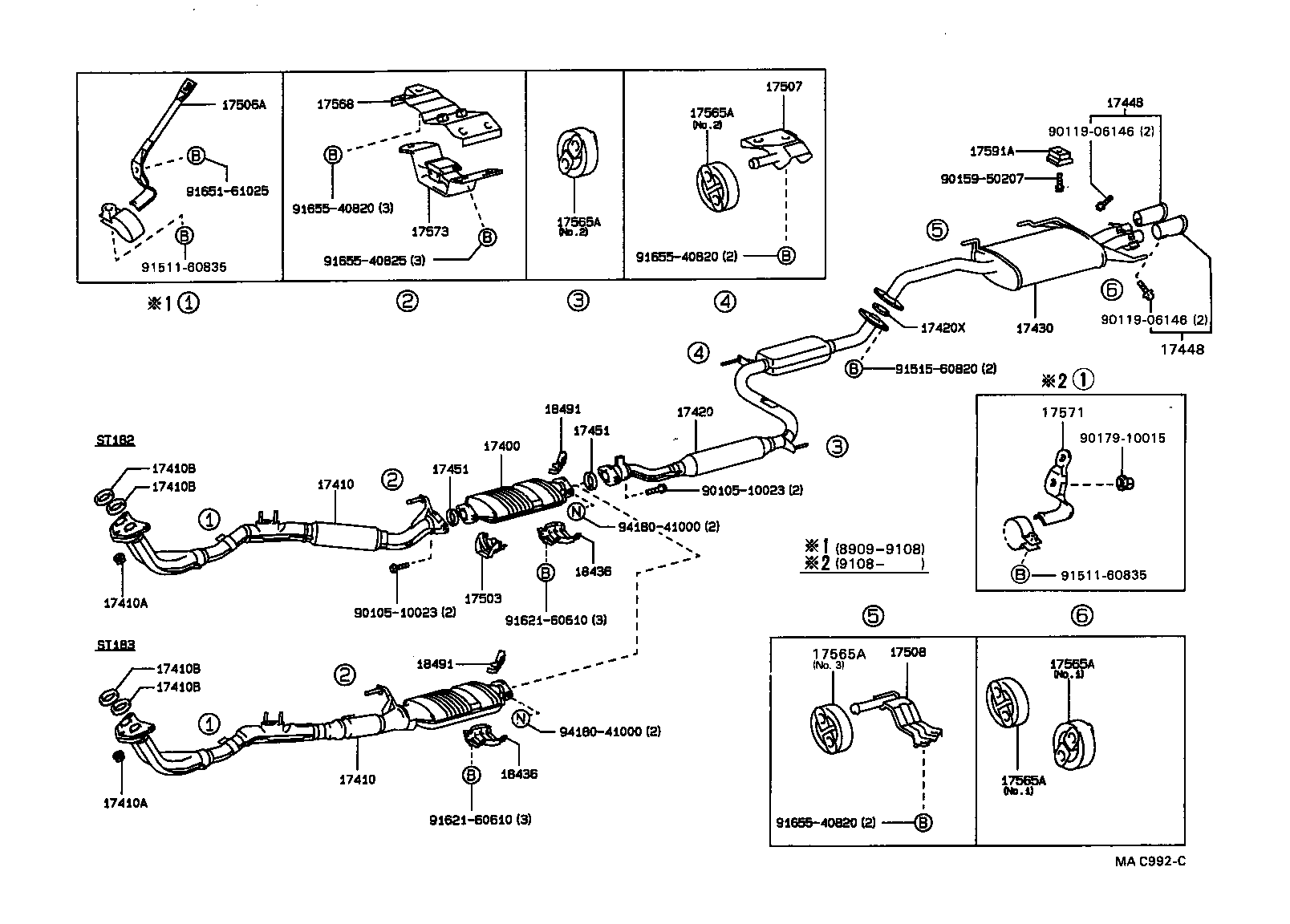

Figure MAC991E MAC991E 1989-09 → — Figure MAC992C MAC992C 1989-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17568 Stay, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17591A Stopper, Exhaust Pipe Support
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
