Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 3 illustrations

Illustrations

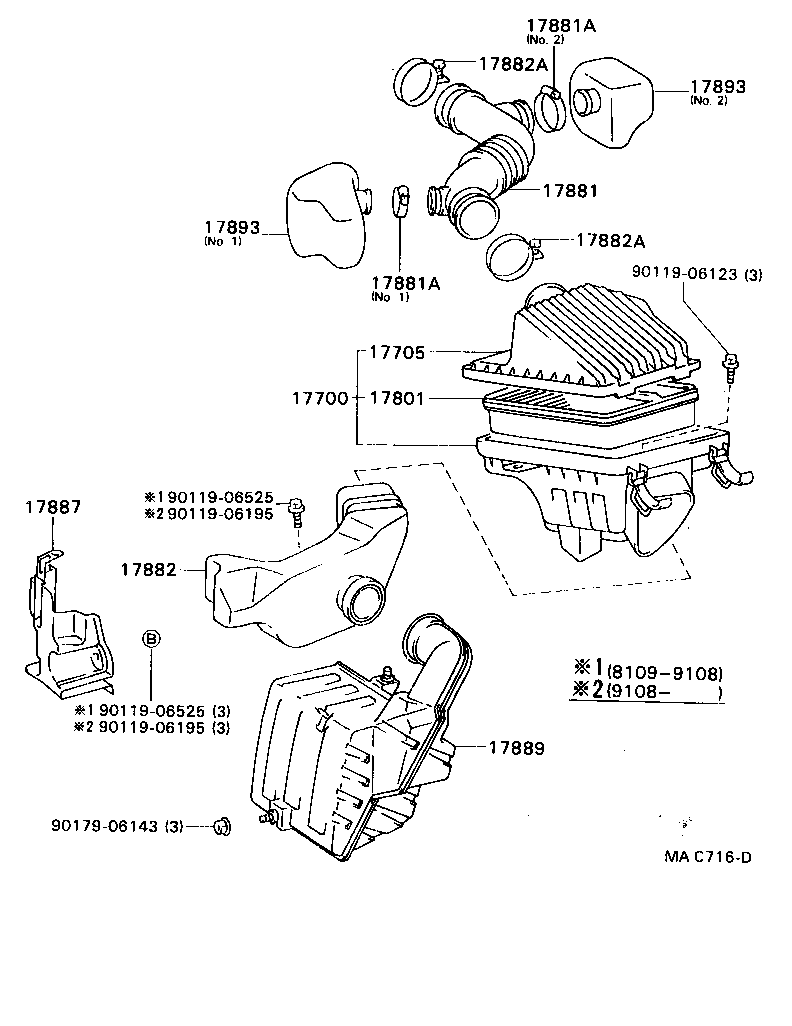

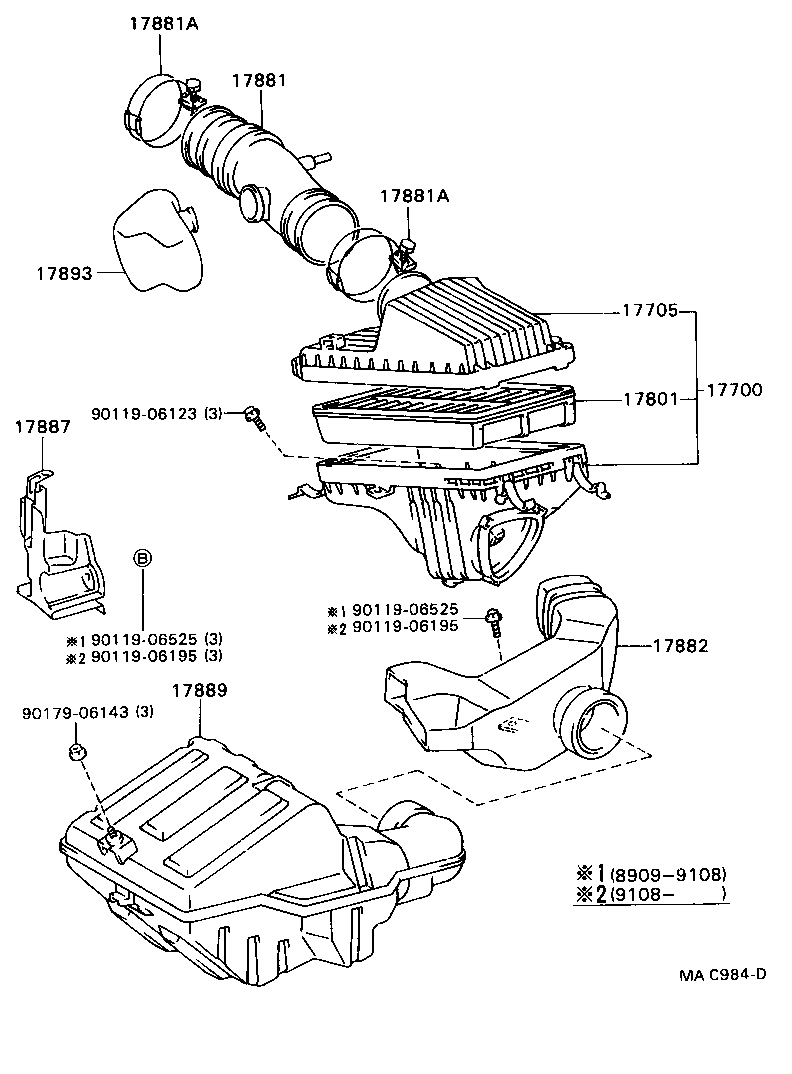

Figure MAC715A MAC715A 1989-09 → 1990-08 Figure MAC716D MAC716D 1989-09 → — Figure MAC984D MAC984D 1989-09 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17887 Cover, Air Cleaner Hose
17889 Box, Air Cleaner Hose, NO.2
17893 Resonator, Intake Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
