Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 6 illustrations

Illustrations

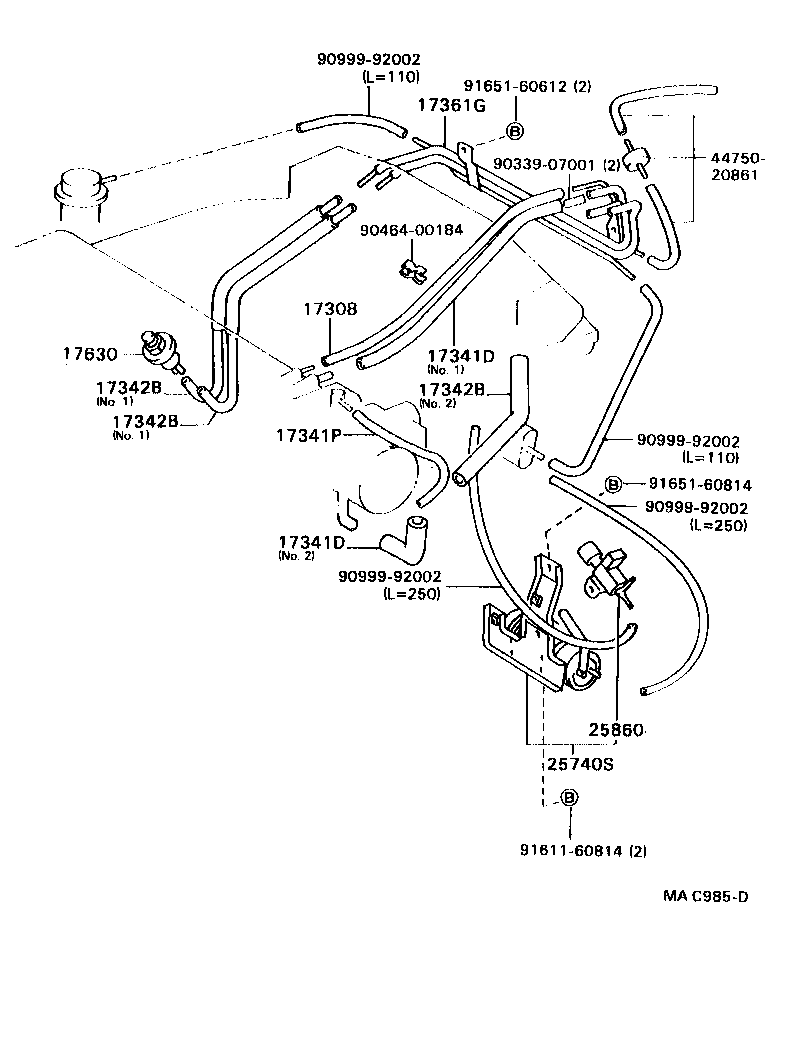

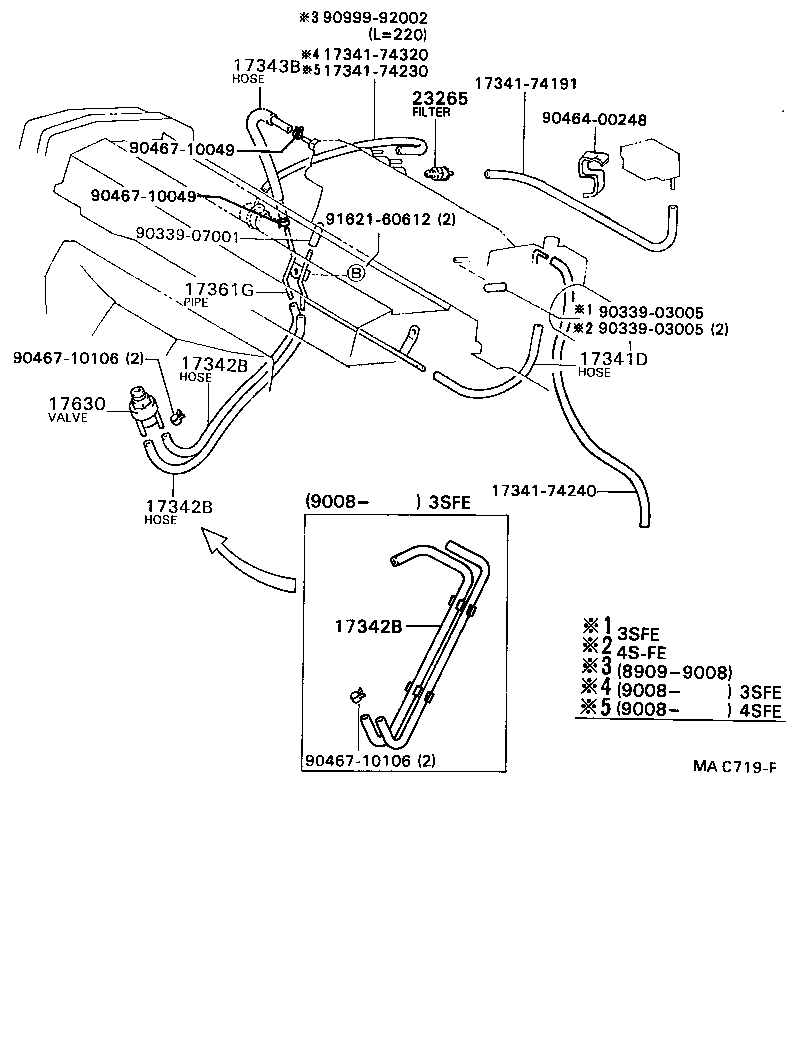

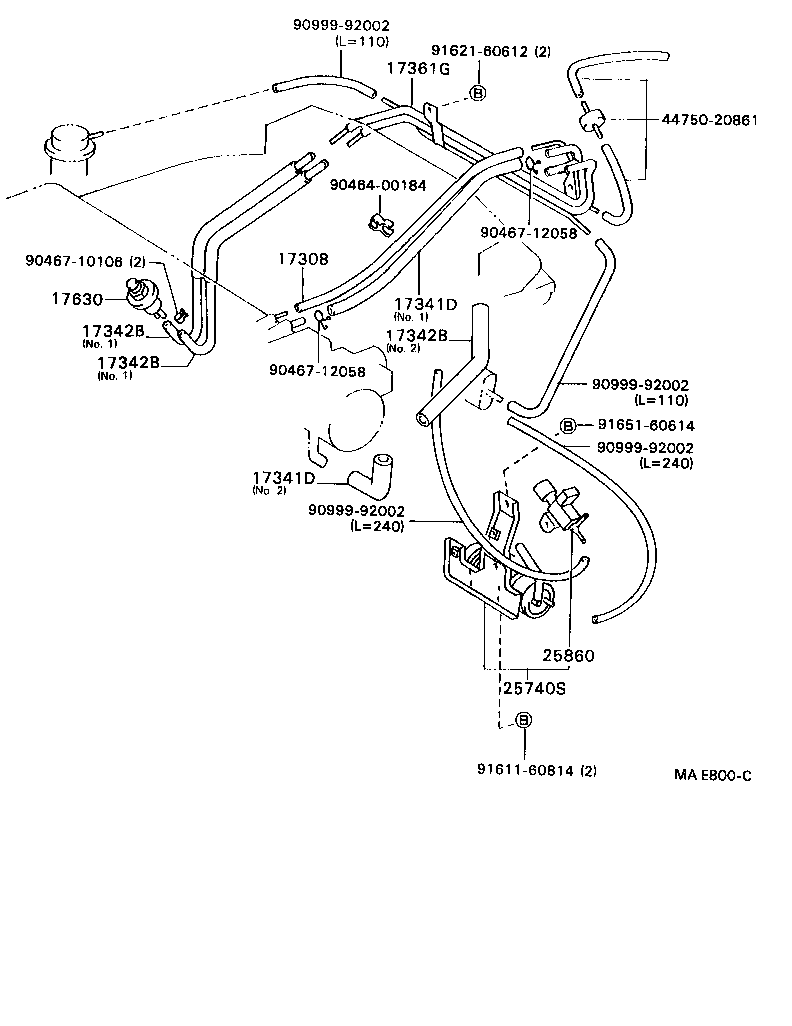

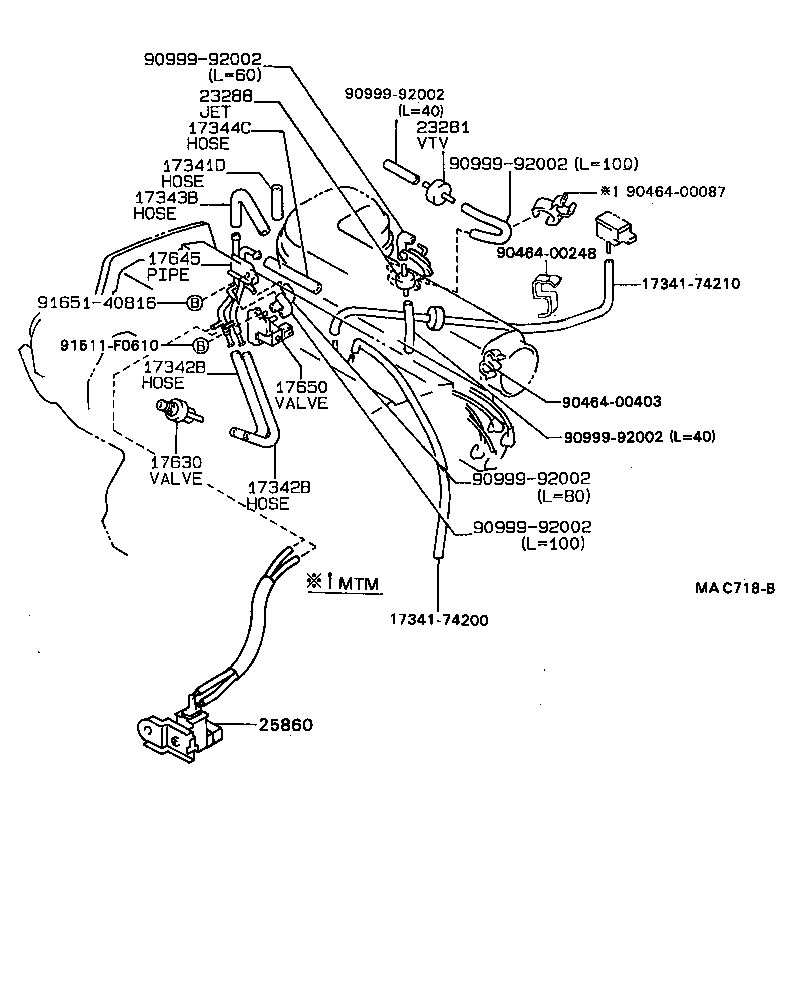

Figure MA9503A MA9503A 1989-09 → — Figure MAC718B MAC718B 1989-09 → 1990-08 Figure MAC719F MAC719F 1989-09 → 1990-08 Figure MAC719F MAC719F 1990-08 → — Figure MAC985D MAC985D 1989-09 → 1991-08 Figure MAE800C MAE800C 1991-08 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
