Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

17 part groups · 6 illustrations

Illustrations

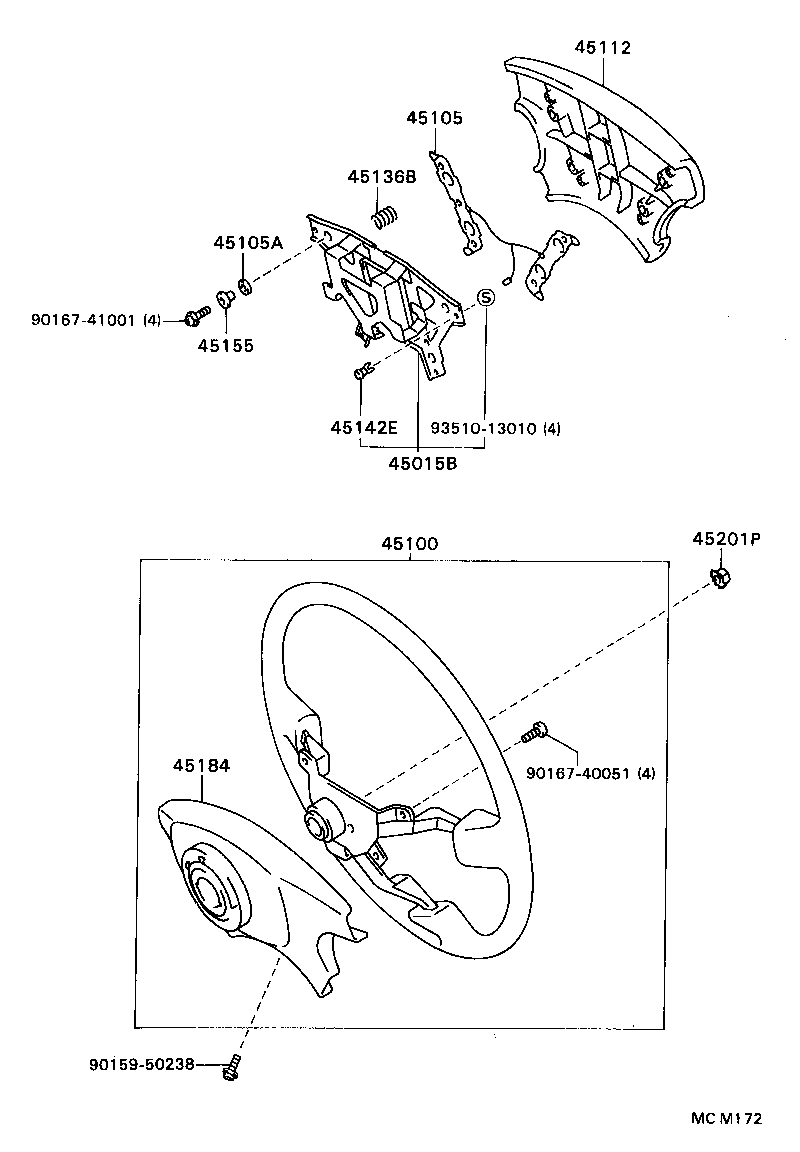

Figure MCJ329A MCJ329A 1989-09 → 1991-08 Figure MCM172 MCM172 1991-08 → — Figure MCJ330B MCJ330B 1989-09 → — Figure MCJ330B MCJ330B 1990-11 → 1990-12 Figure MCJ330B MCJ330B 1991-05 → 1991-07 Figure MCJ331 MCJ331 1989-09 → —

Part groups

PNCDescription
45015B Plate Sub-assy, Horn Button Contact, NO.2
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
