Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

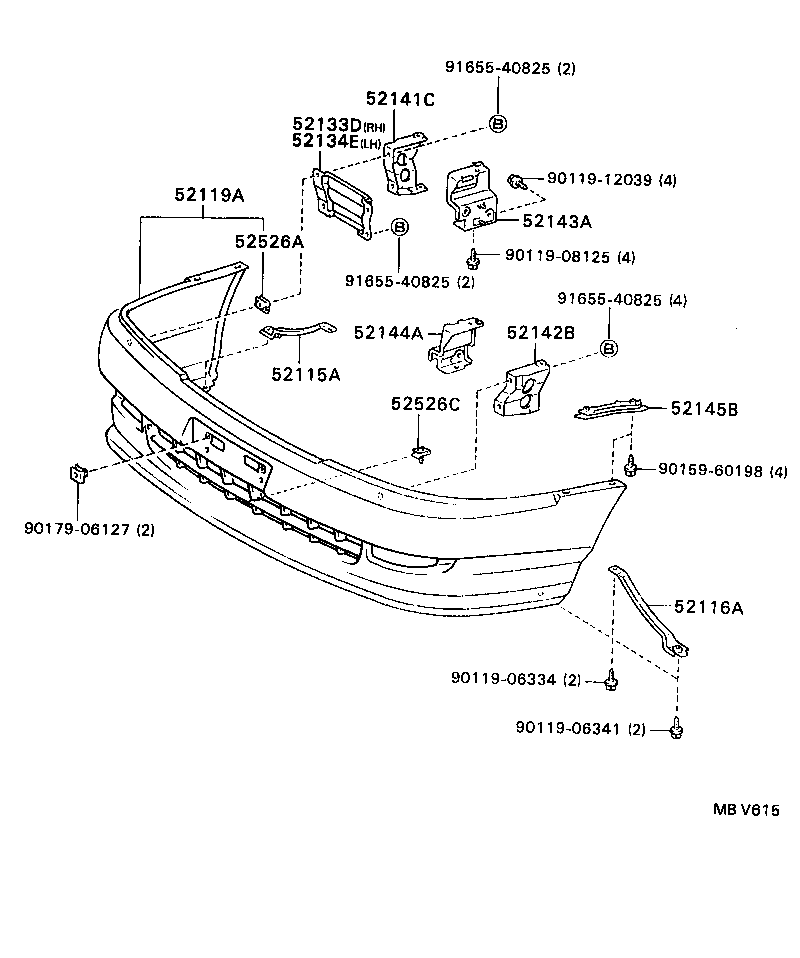

Figure MBT250A MBT250A 1989-09 → 1991-08 Figure MBV615 MBV615 1991-08 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52133D Reinforcement, Front Bumper, NO.3
52134E Reinforcement, Front Bumper, NO.4
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52145B Bracket, Front Bumper Side Mounting
52526A Retainer, Front Bumper, Lower NO.1
52526C Retainer, Front Bumper, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
