Factory parts data · Europe

Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 2 illustrations

Illustrations

Figure MBT156B

MBT156B 1989-09 → 1991-08

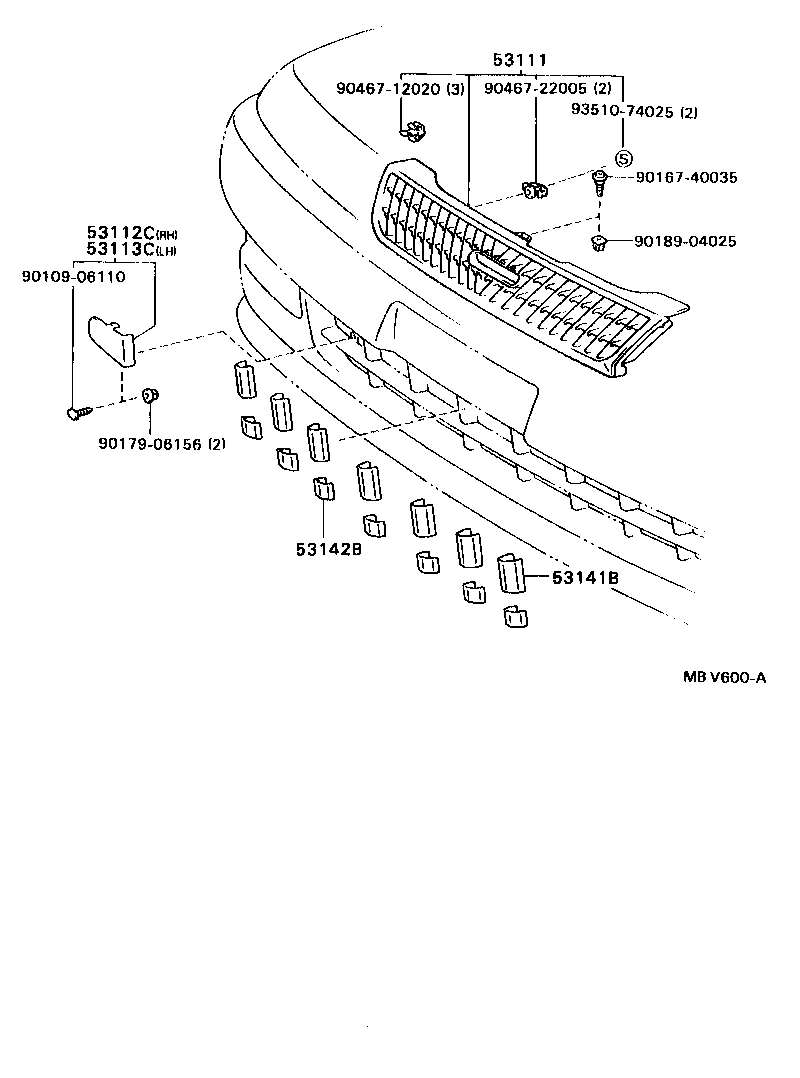

Figure MBV600A

MBV600A 1991-08 → —

Part groups

PNC	Description
53111	Grille, Radiator
53112C	Grille, Radiator, Lower RH
53113C	Grille, Radiator, Lower LH
53141B	Garnish, Radiator Grille, NO.1
53142B	Radiator Grille Garnish, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
