Toyota Carina ED
1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan
Discontinued model
Data version 1994-04

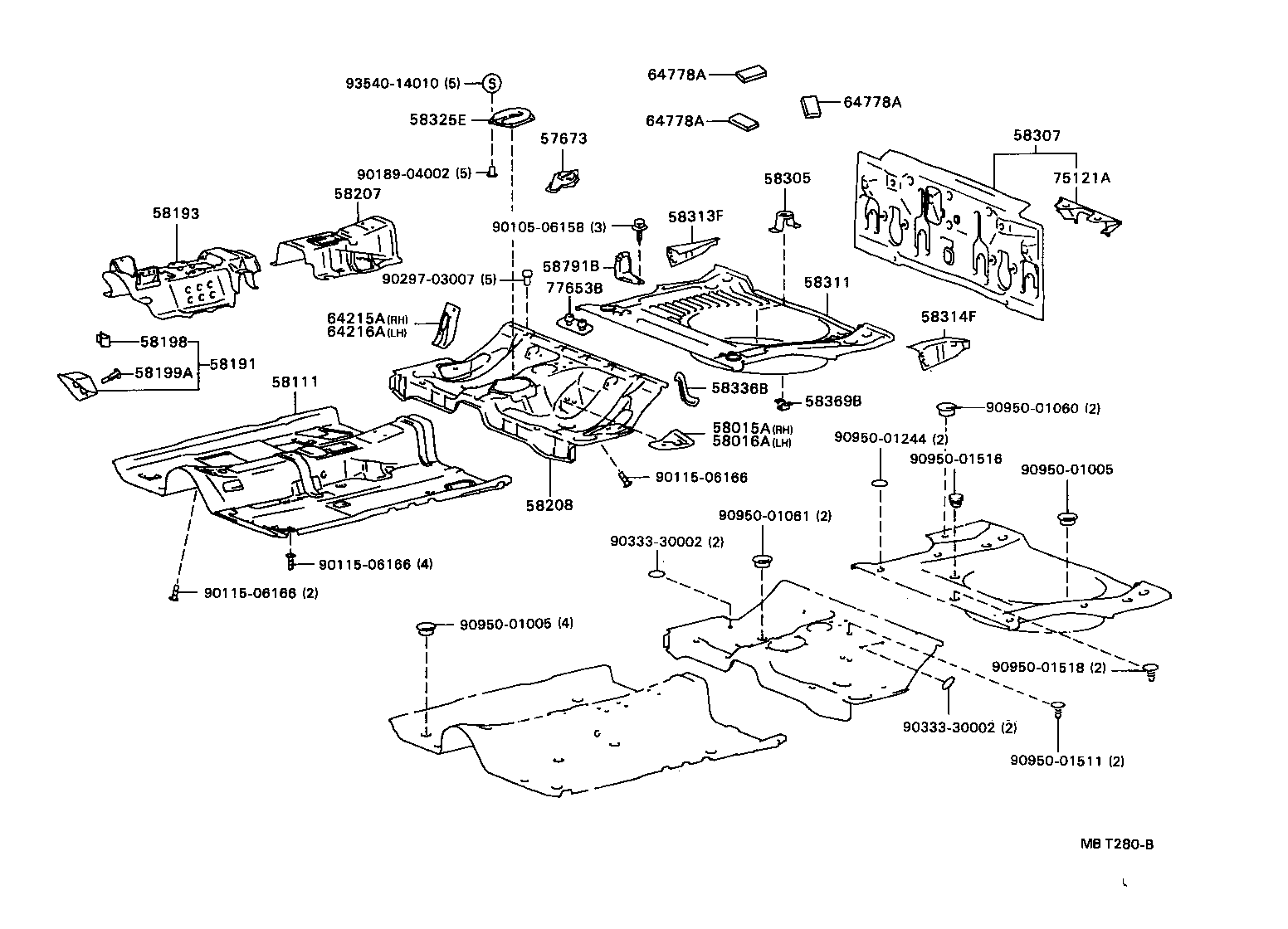

Floor Pan & Lower Back Panel
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57686A | Bracket, Fuel Tank Mounting, Rear RH |
| 57687A | Bracket, Fuel Tank Mounting, Rear LH |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58111 | Pan, Front Floor |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58198 | Clip, Footrest |
| 58199A | Clip, Footrest, NO.2 |
| 58207 | Bracket Sub-assy, Parking Brake Cable, NO.1 |
| 58208 | Pan, Center Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58791B | Carrier, Jack |
| 64215A | Extension, Rear Floor TO Package Tray, RH |
| 64216A | Extension, Rear Floor TO Package Tray, LH |
| 64778A | Protector, Spare Wheel |
| 75121A | Bracket, Rear License Plate |
| 77653B | Cushion, Fuel Tank, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
