Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 12 illustrations

Illustrations

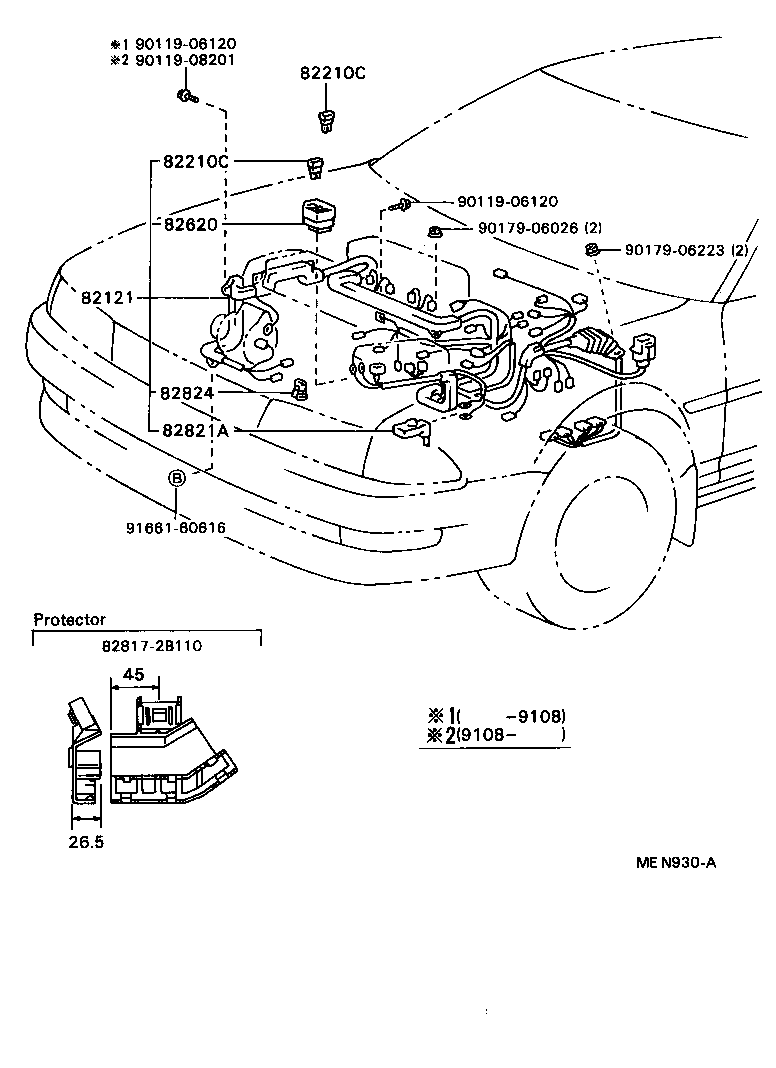

Figure MEN916B MEN916B 1989-09 → — Figure MEN924A MEN924A 1989-09 → — Figure MEN926A MEN926A 1989-09 → — Figure MEN930A MEN930A 1989-09 → — Figure MEN937C MEN937C 1989-09 → — Figure MEN947B MEN947B 1989-09 → — Figure MES137A MES137A 1989-09 → — Figure MEN953B MEN953B 1989-09 → — Figure MEN956B MEN956B 1989-09 → — Figure MEN973C MEN973C 1989-09 → — Figure MEQ601 MEQ601 1989-09 → — Figure MES225 MES225 1989-09 → —

Part groups

PNCDescription

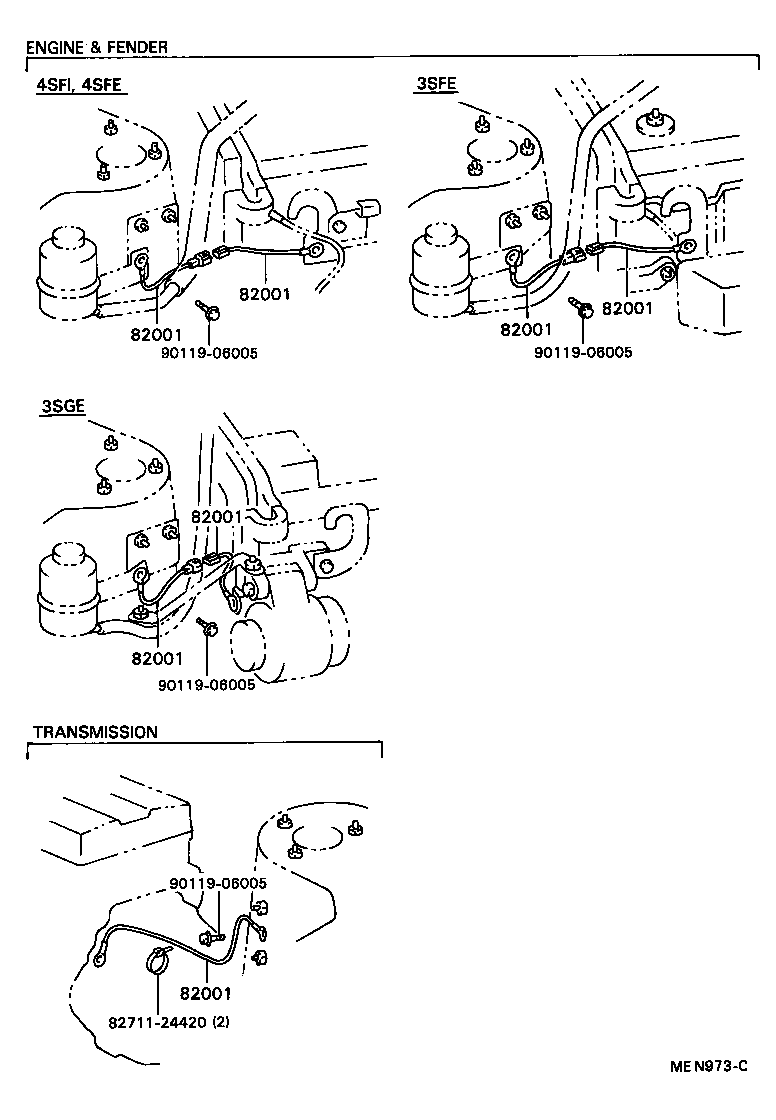

82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main

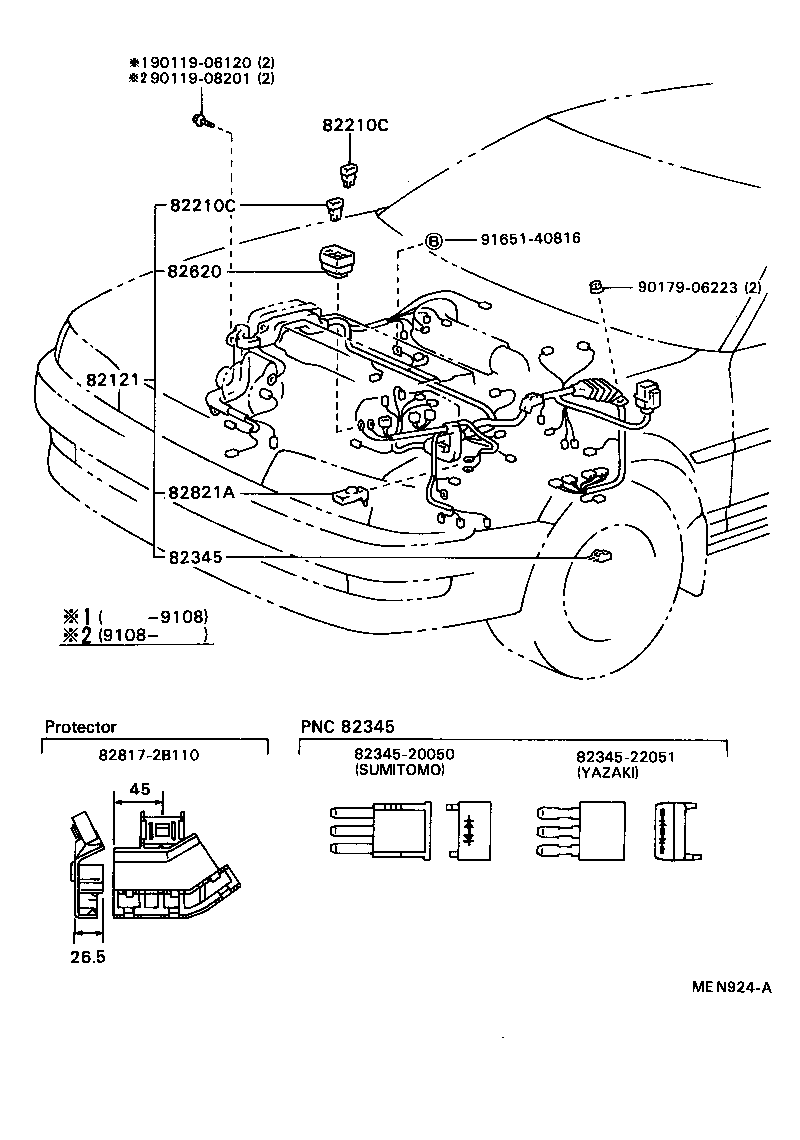

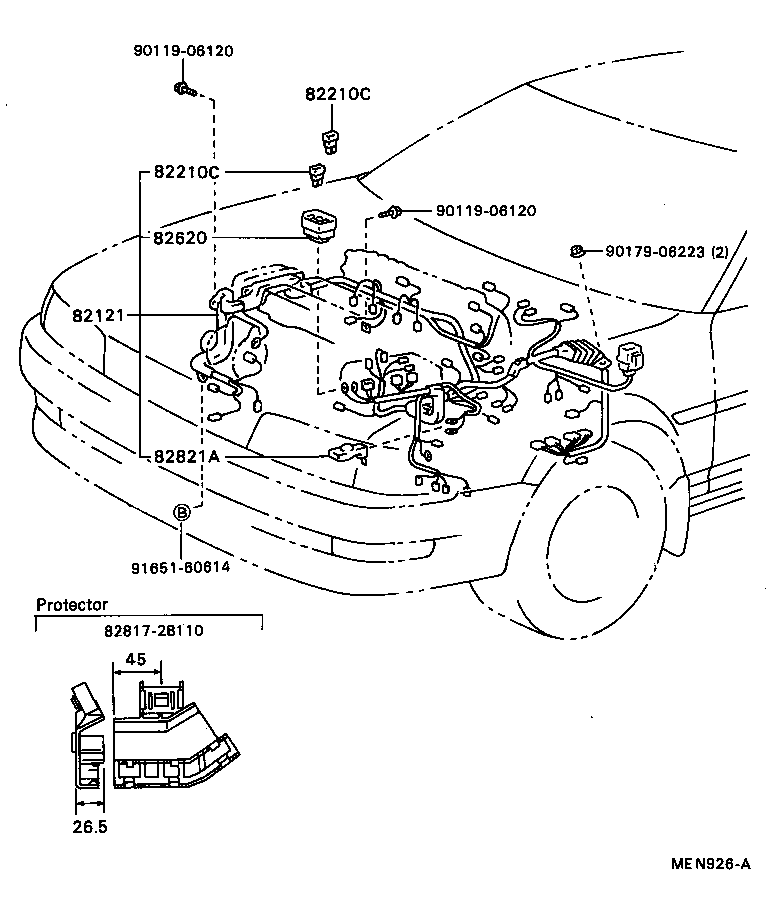

82121 Wire, Engine

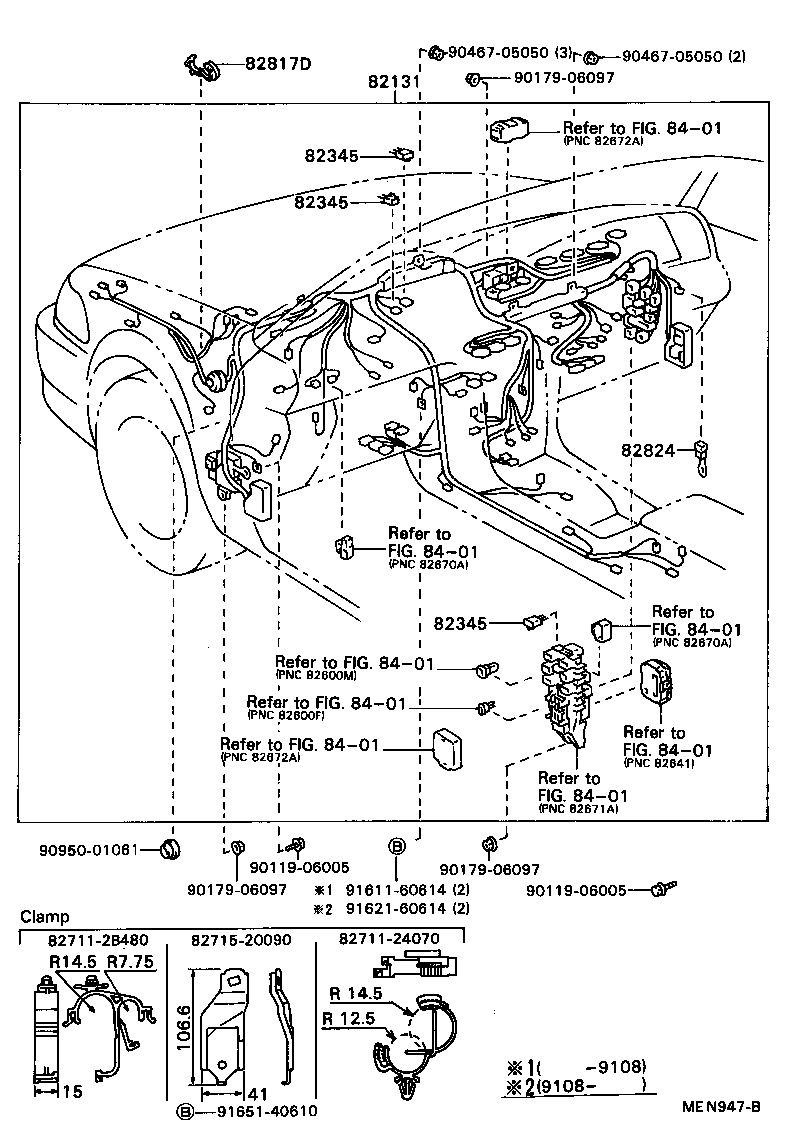

82131 Wire, Cowl

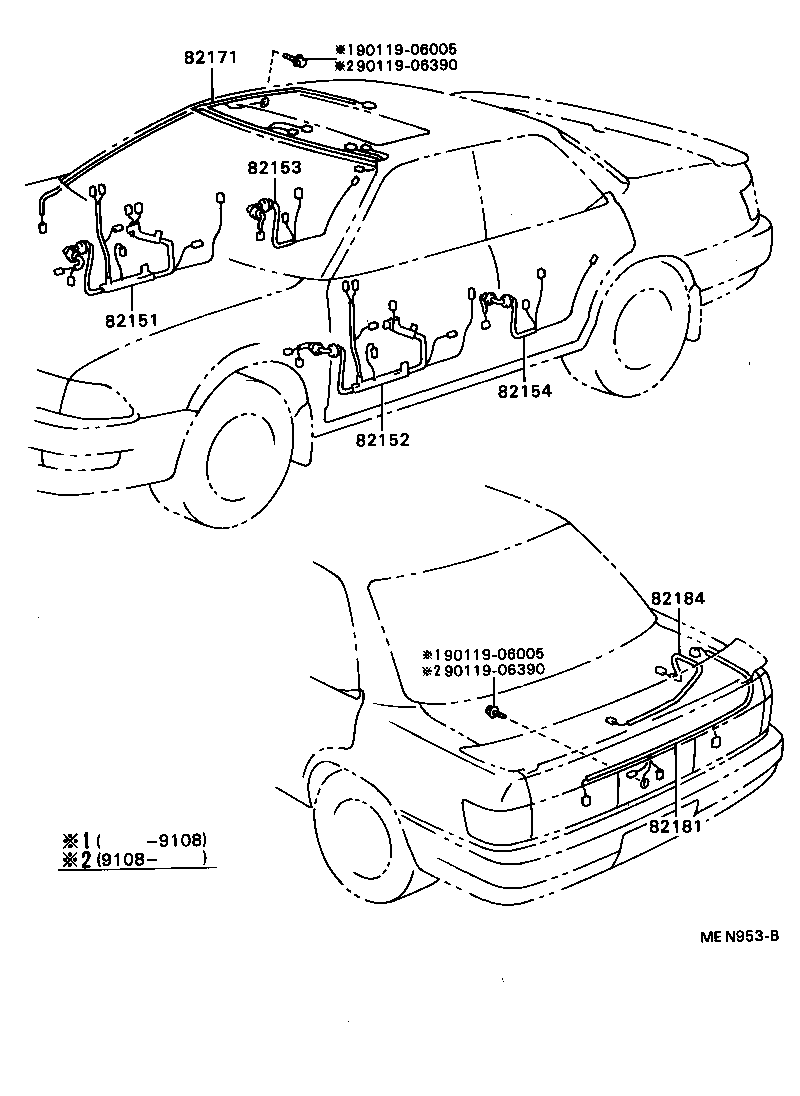

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

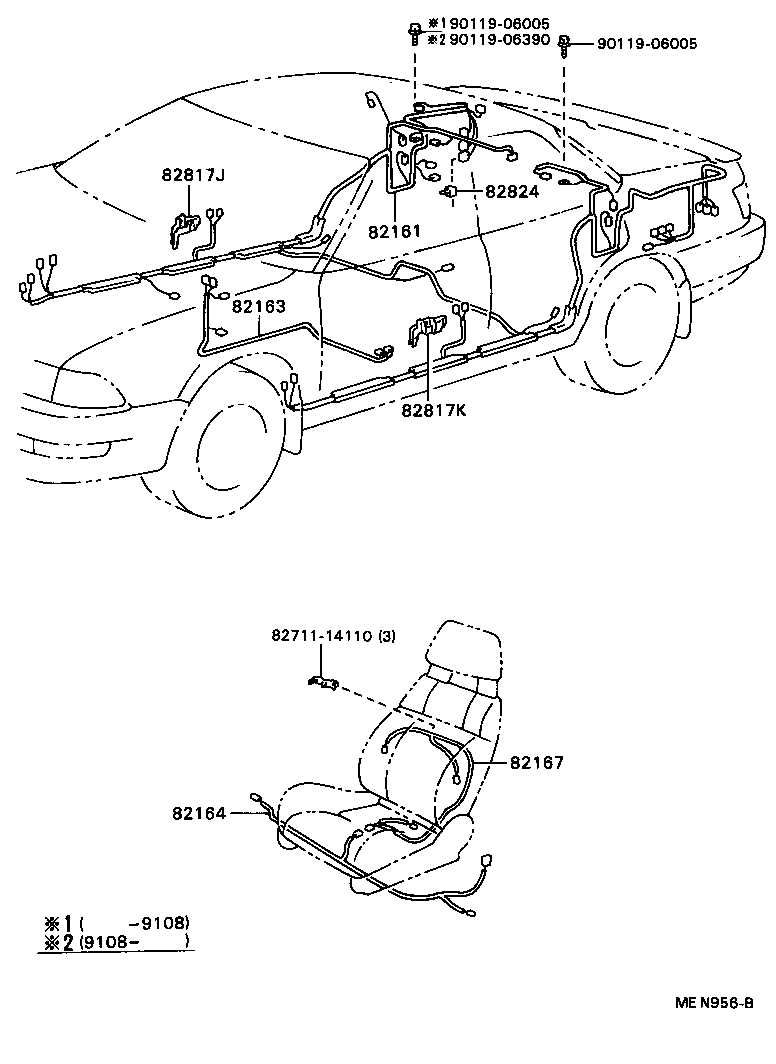

82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link

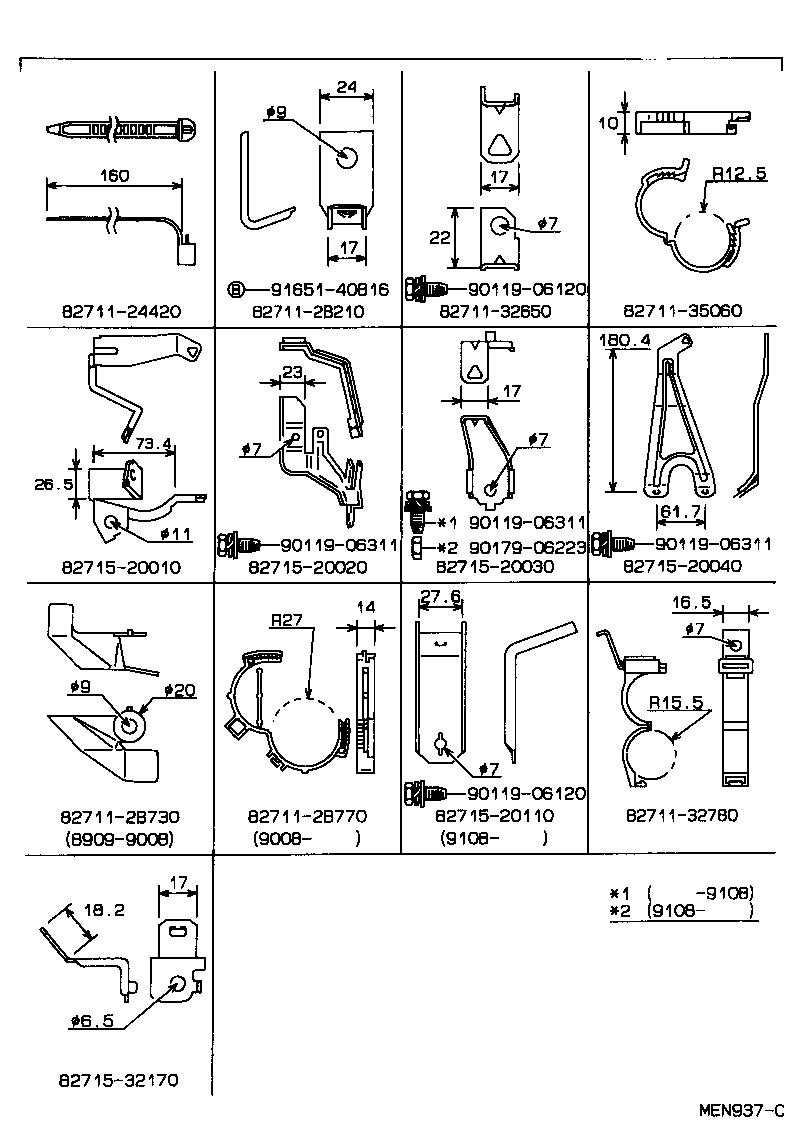

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82821A Cover, Connector
82824 Connector, Wiring Harness

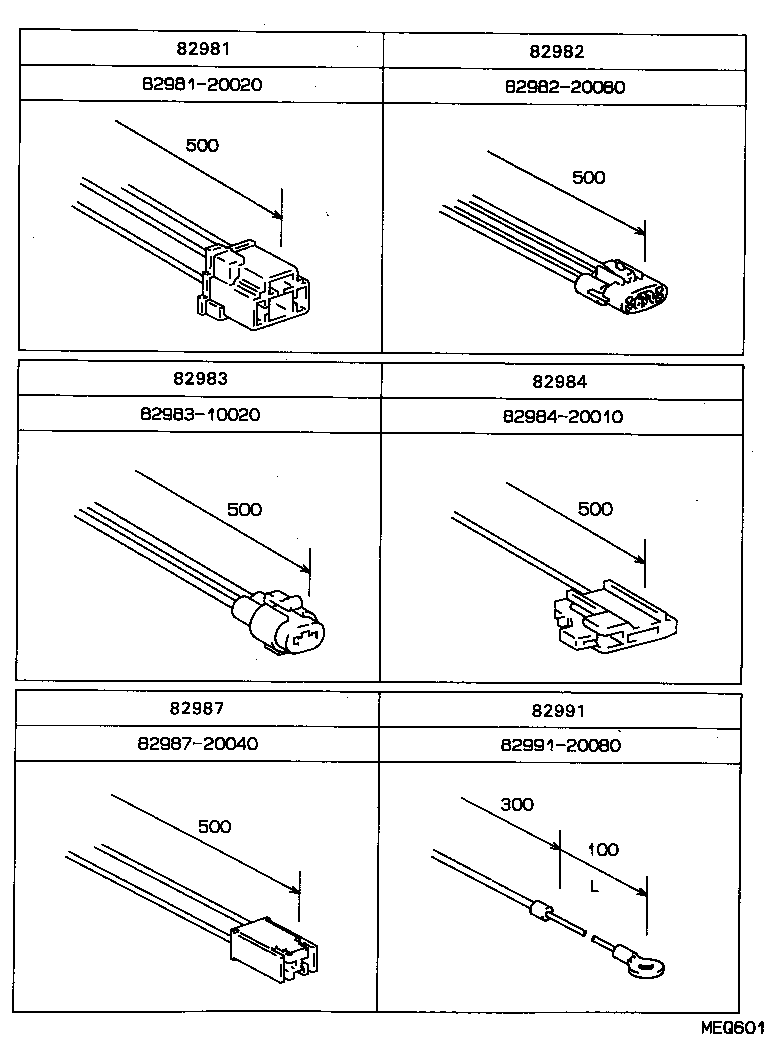

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
