Toyota Carina ED
1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan
Discontinued model
Data version 1994-04
Meter
19 part groups · 4 illustrations
Part groups

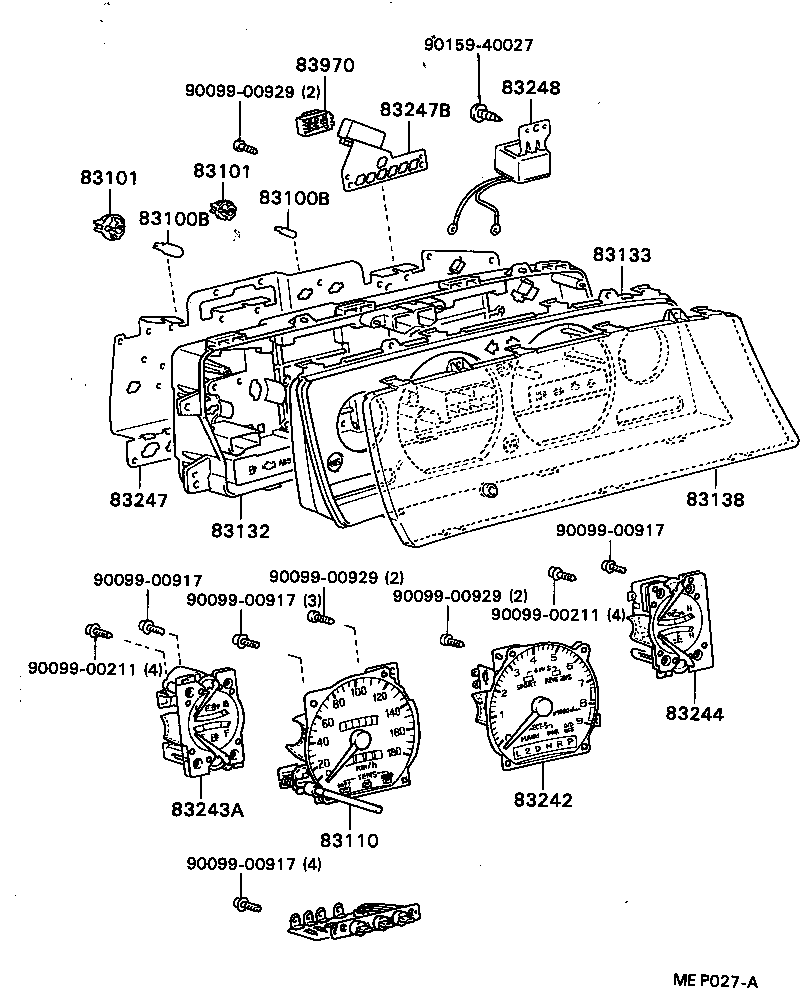

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83189 | Bracket, Meter |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83248 | Chime, Speed Warning |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83798 | Key, Speedometer Cable Adapter |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 88261B | Sensor, Speed Cruise Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
