Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 3 illustrations

Illustrations

865745 1989-09 → —

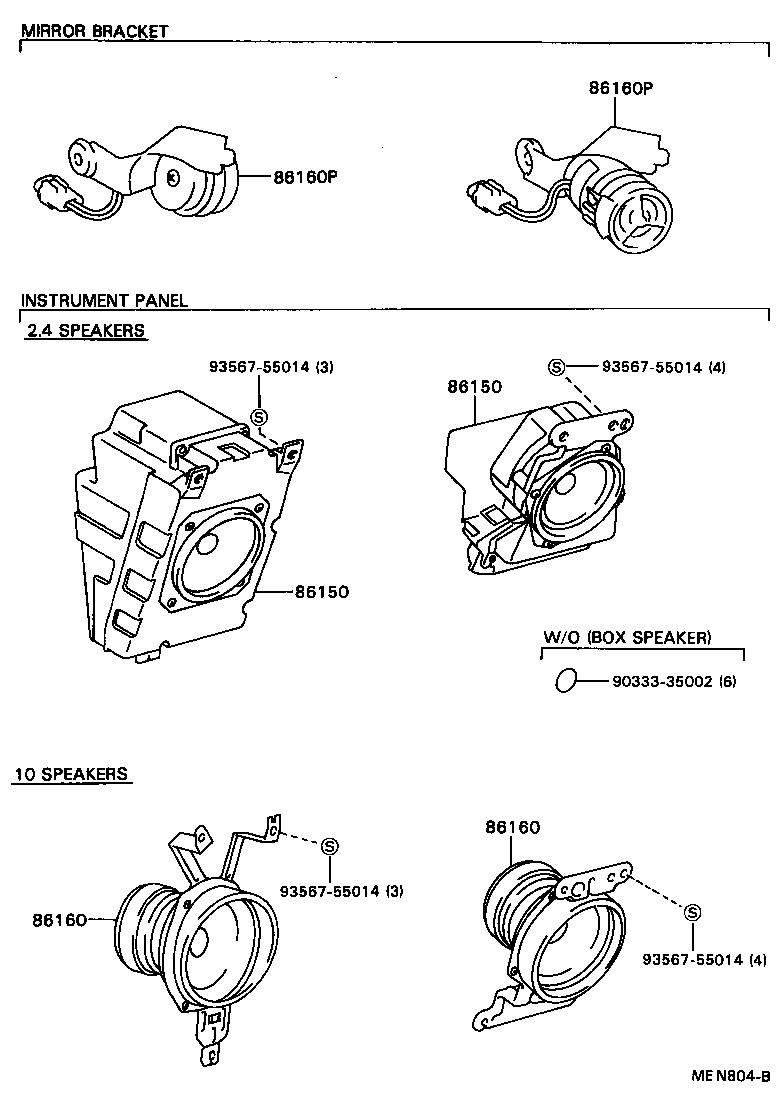

Figure MEN804B

MEN804B 1989-09 → —

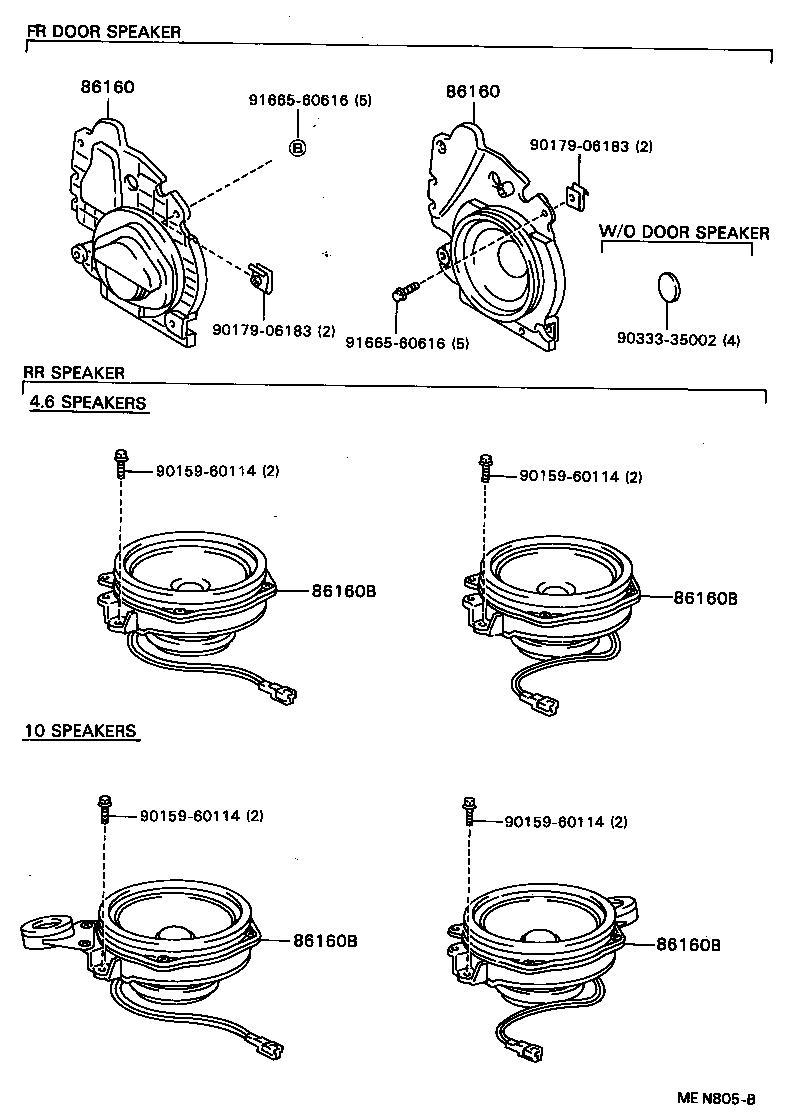

Figure MEN805B

MEN805B 1989-09 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
