Toyota Carina ED

1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 6 illustrations

Illustrations

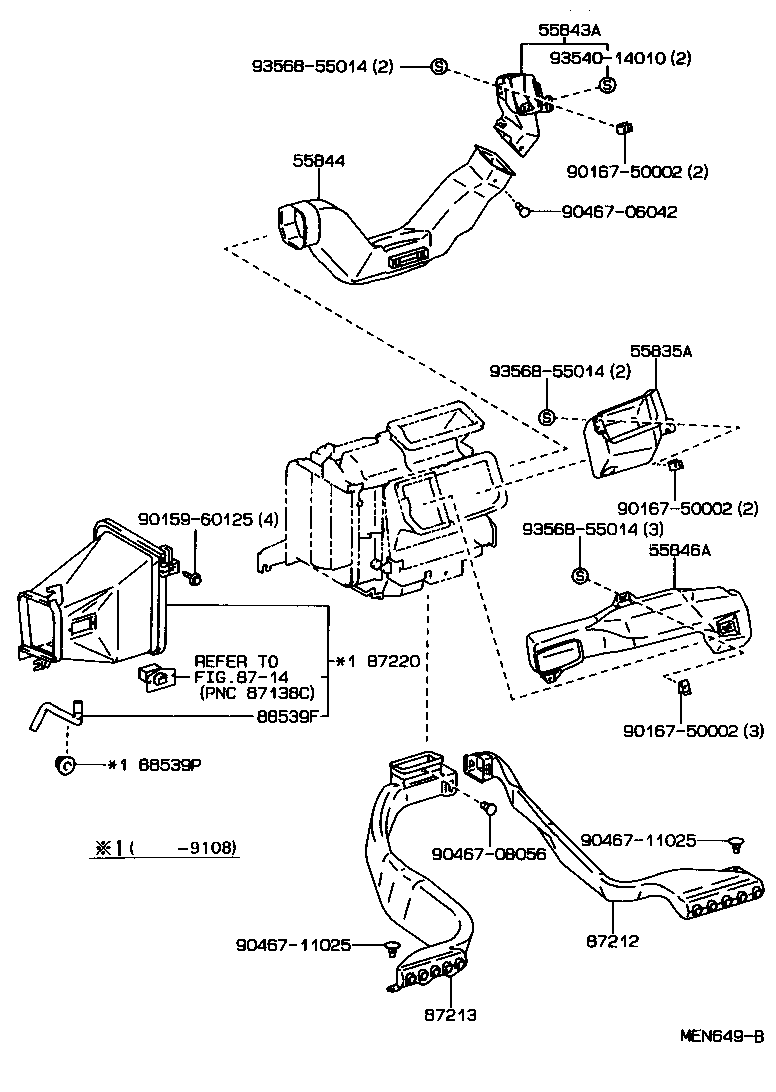

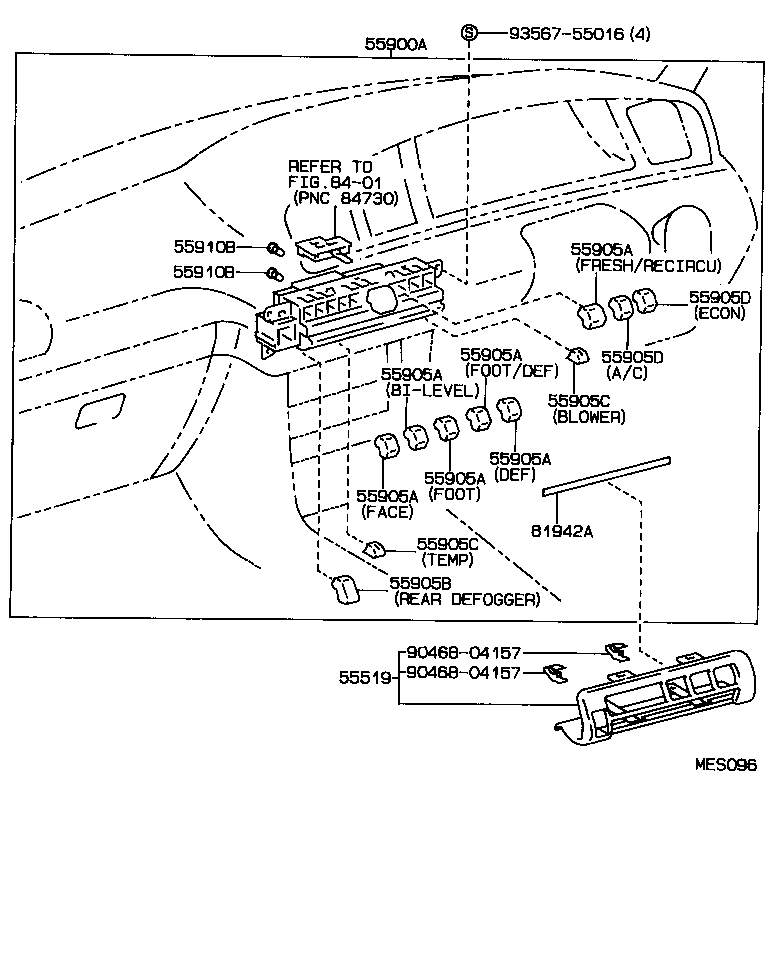

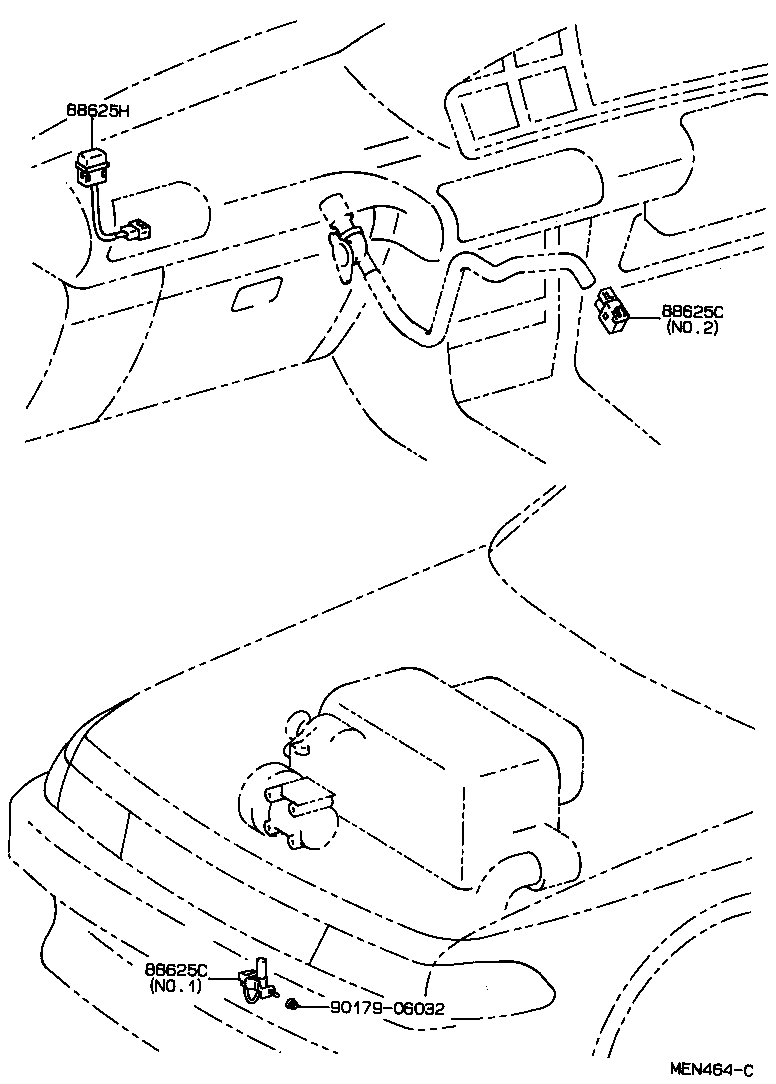

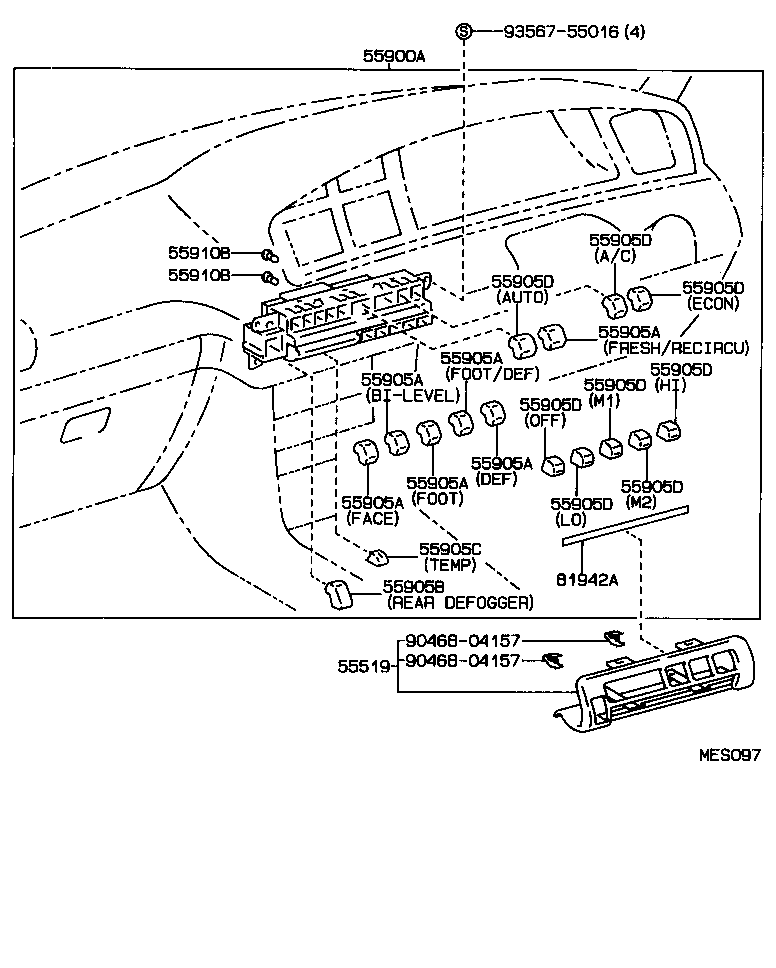

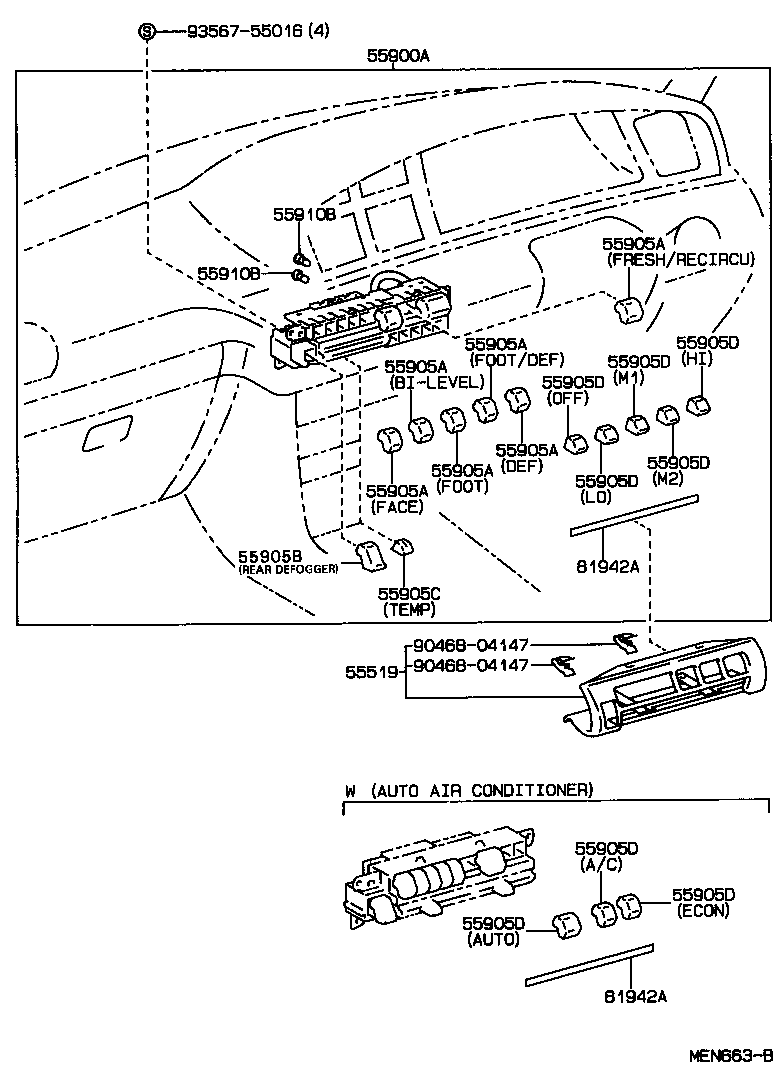

Figure MEN662B MEN662B 1989-09 → 1991-08 Figure MES096 MES096 1991-08 → — Figure MEN663B MEN663B 1989-09 → 1991-08 Figure MES097 MES097 1991-08 → — Figure MEN649B MEN649B 1989-09 → — Figure MEN464C MEN464C 1989-09 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55846A Duct, Heater TO Register, NO.4
55900A Control & Accessory Assy, Heater
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
88539P Grommet(FOR DRAIN HOSE)
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
