Toyota Carina ED
1989-09 → 1993-09 · chassis ST18# · catalogue 251130 · Japan
Discontinued model
Data version 1994-04
Heating & Air Conditioning - Cooler Piping
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375B | Cap, Service Valve, NO.1 |

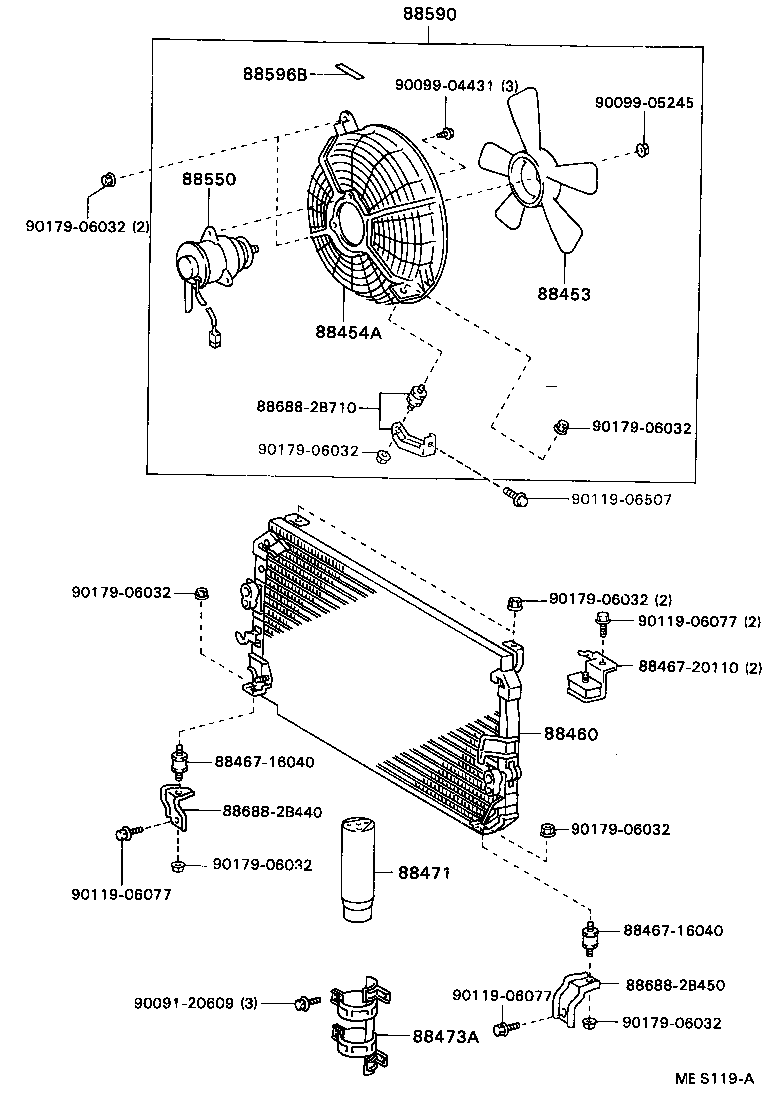

| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88470C | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88473A | Holder, Receiver |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88645H | Switch, Pressure NO.1 |

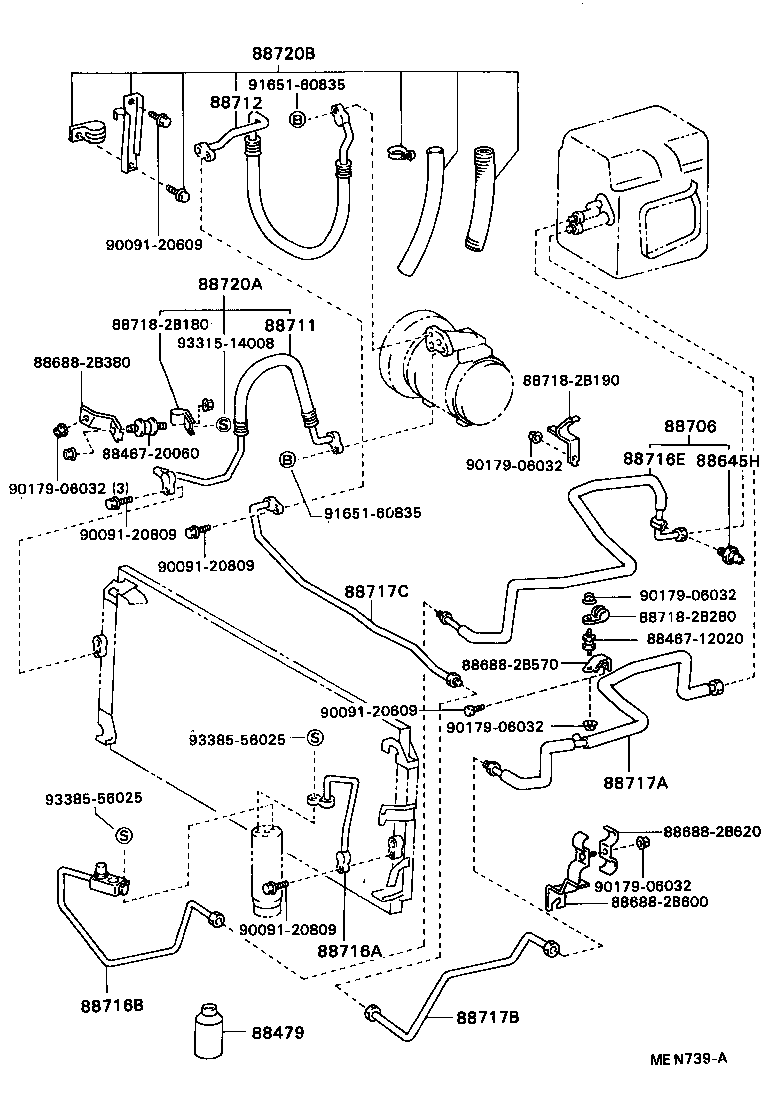

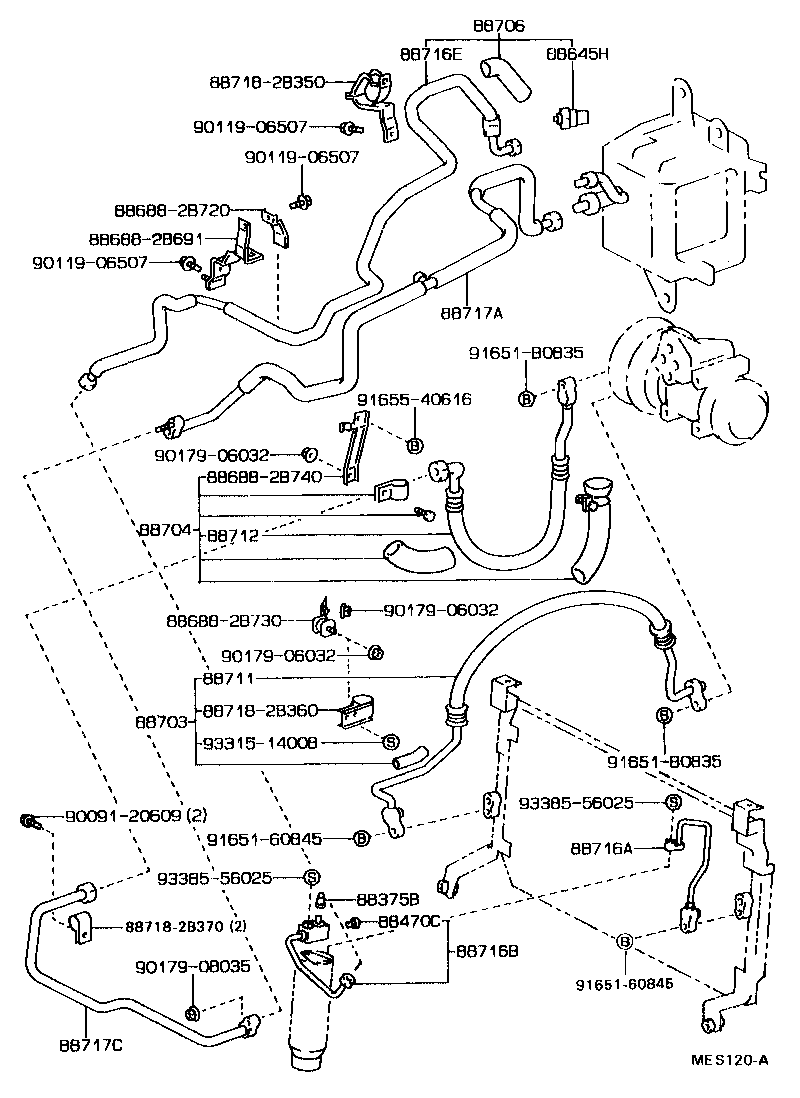

| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88706 | Pipe Sub-assy, Liquid |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88720A | Hose & Accessory, Air Conditioner |
| 88720B | Hose & Accessory, Air Conditioner |
| 88723B | Label, Cooler Service Caution |
