Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

81 part groups · 15 illustrations

Illustrations

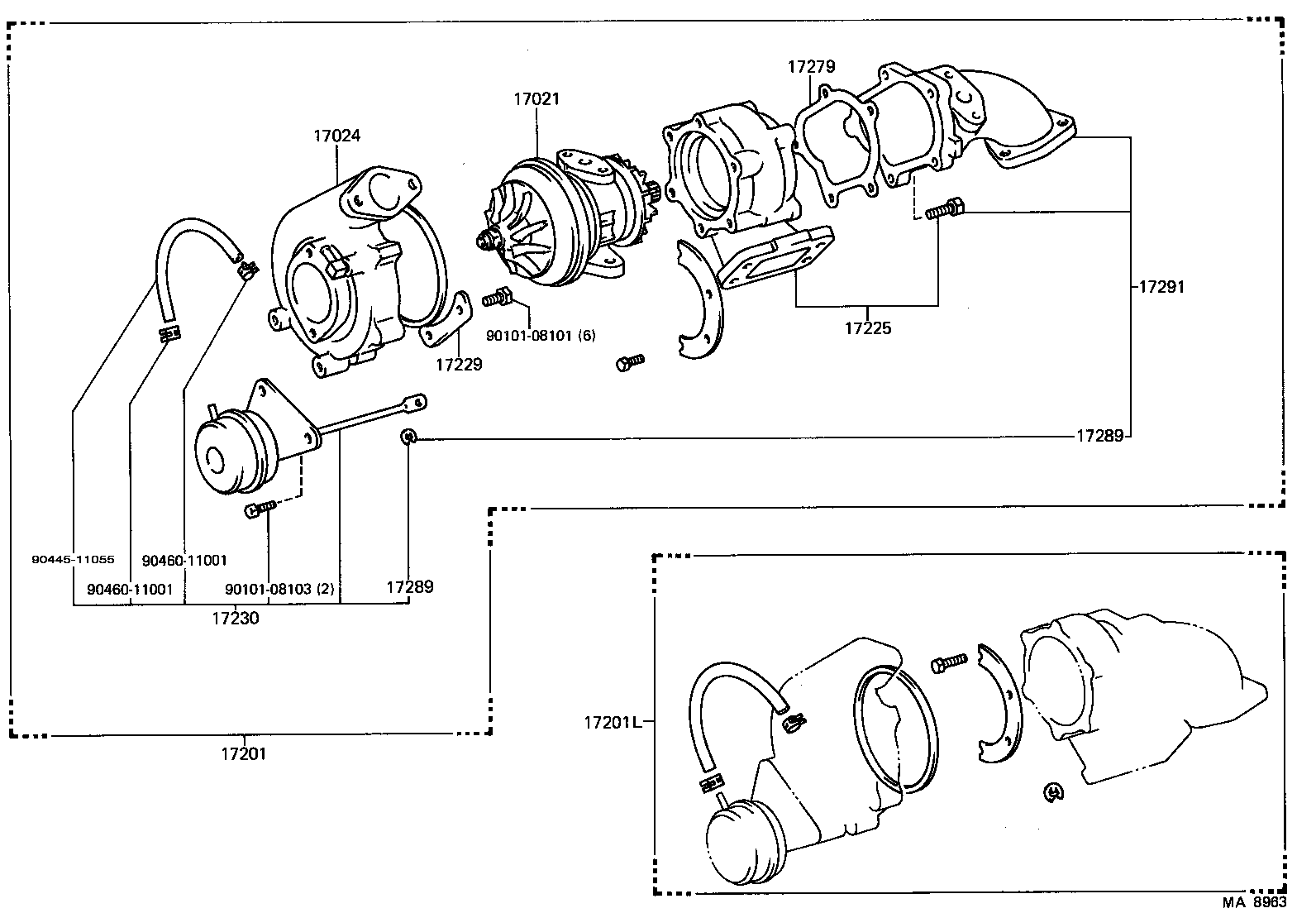

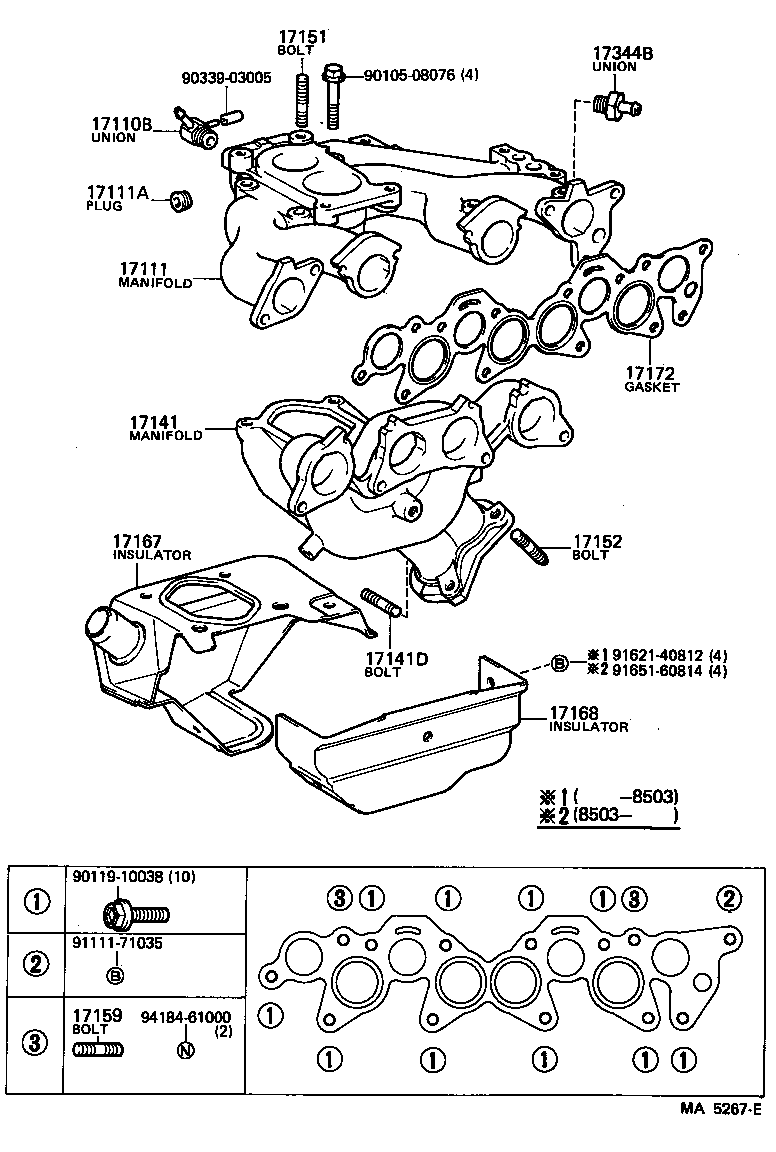

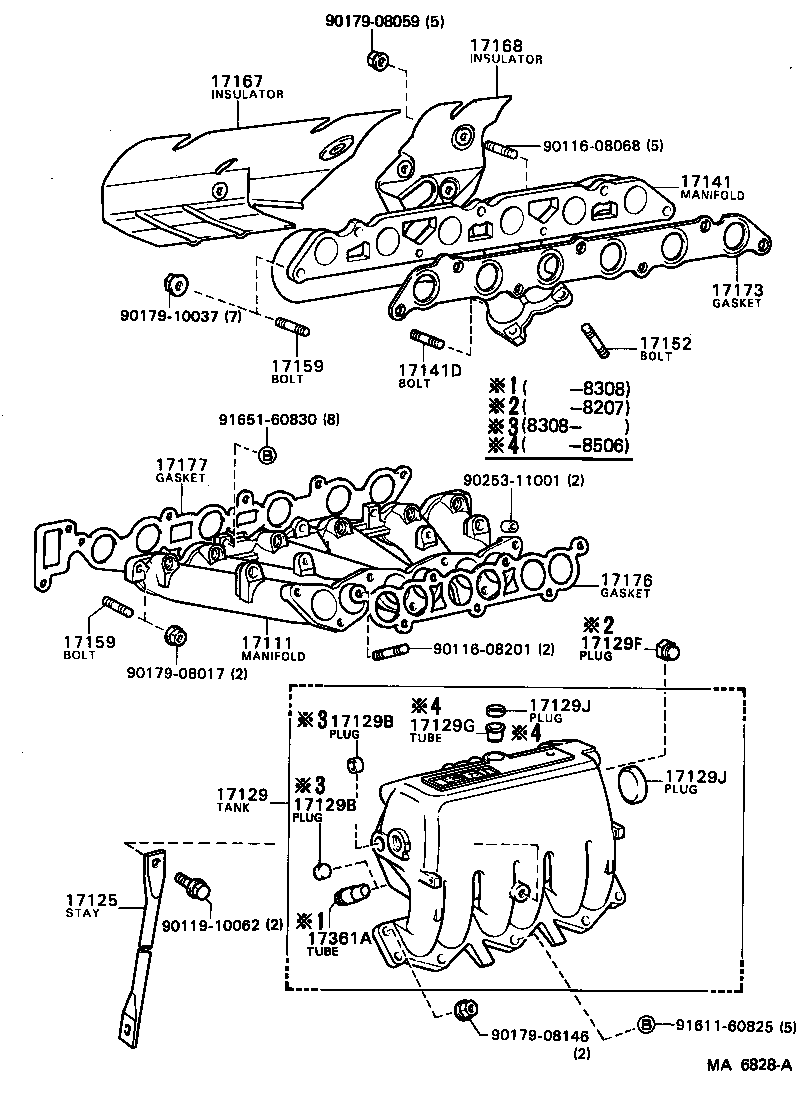

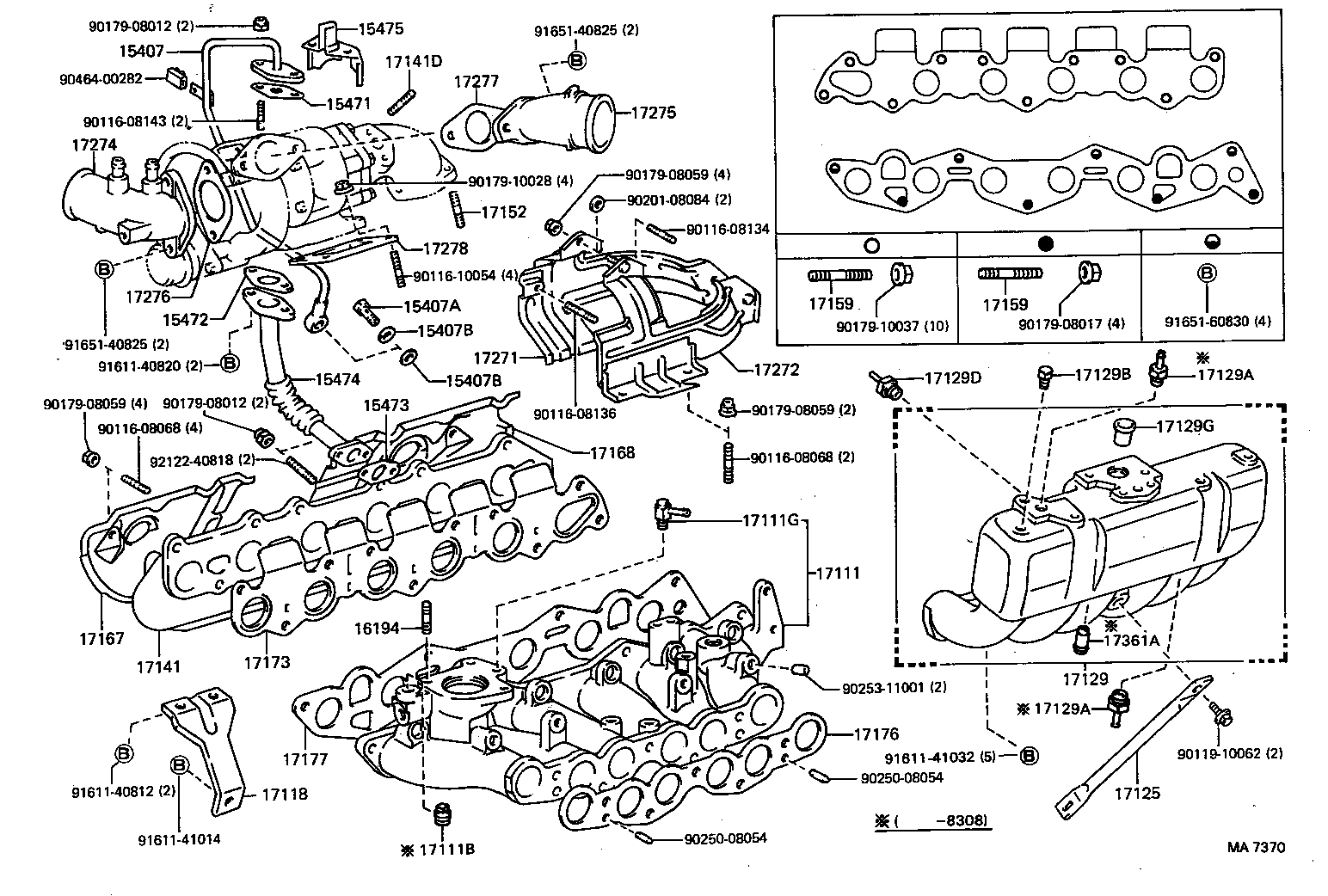

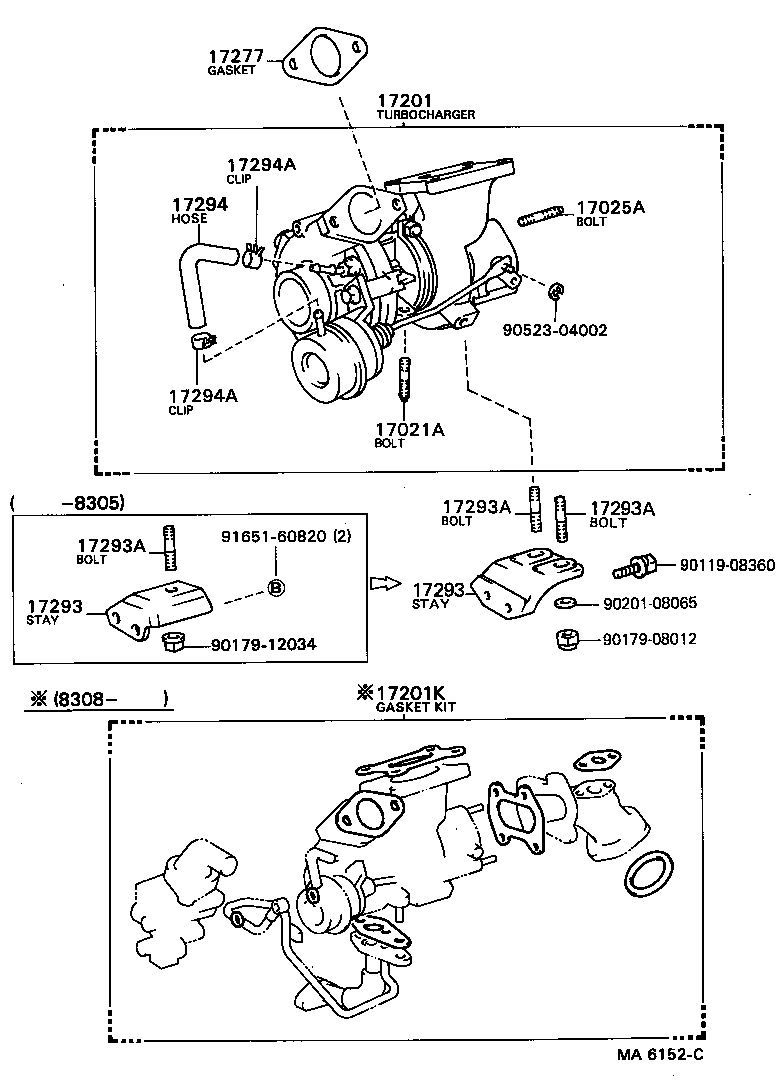

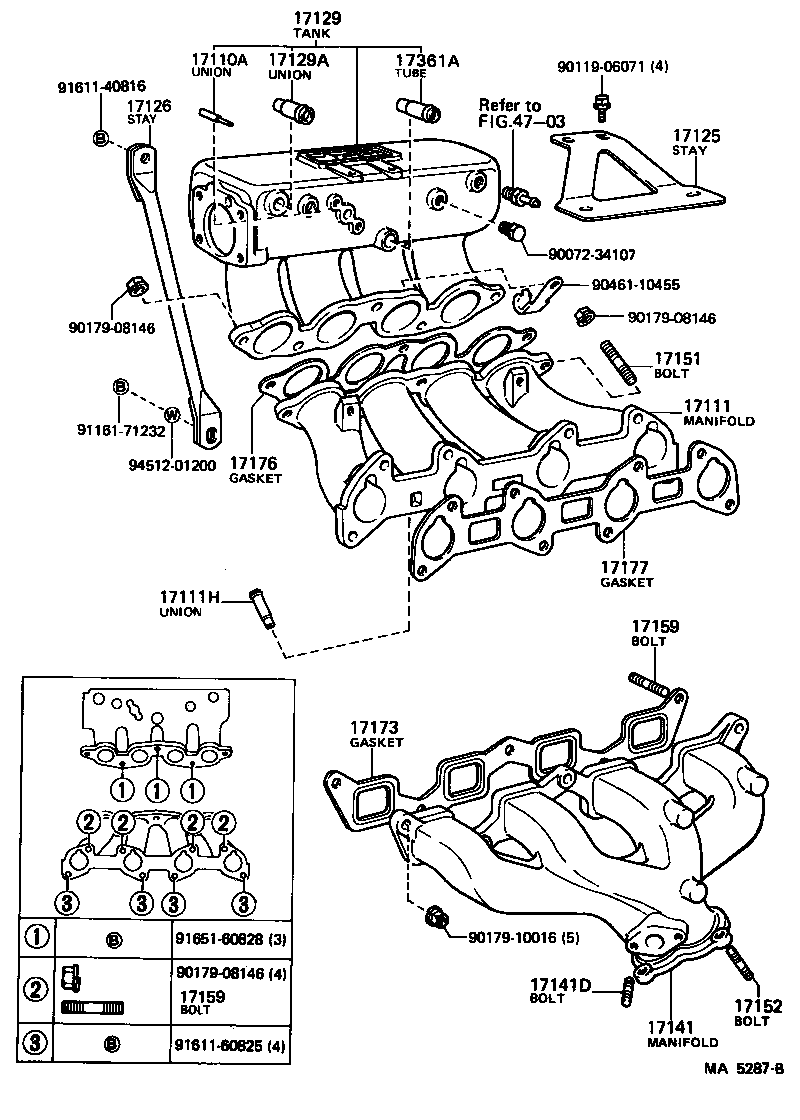

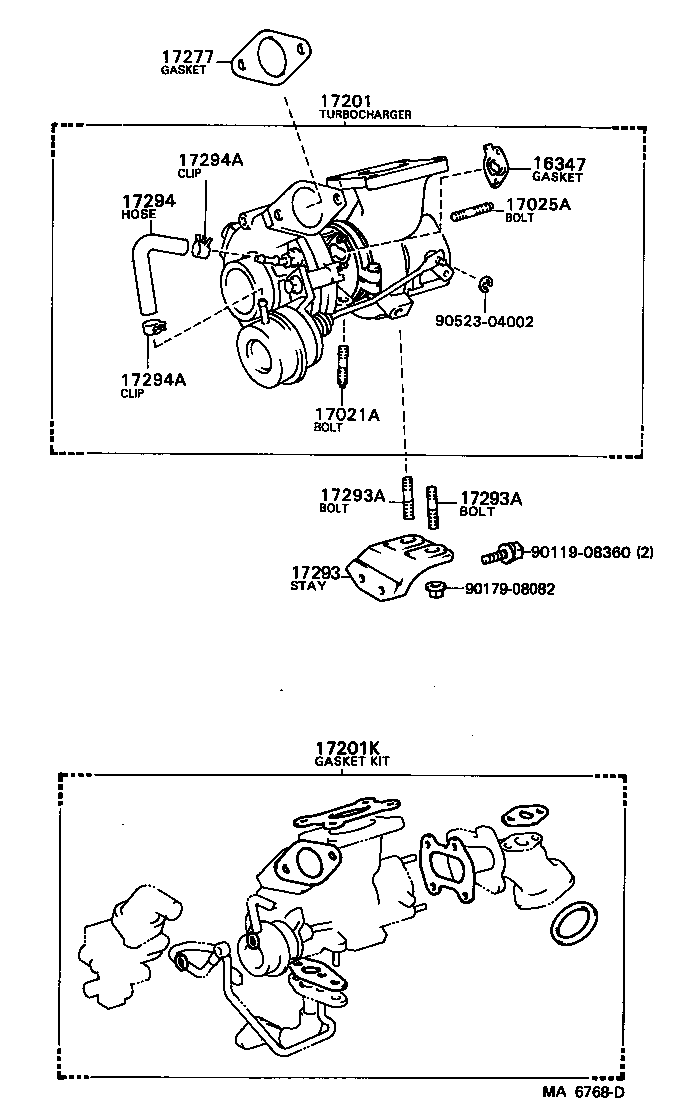

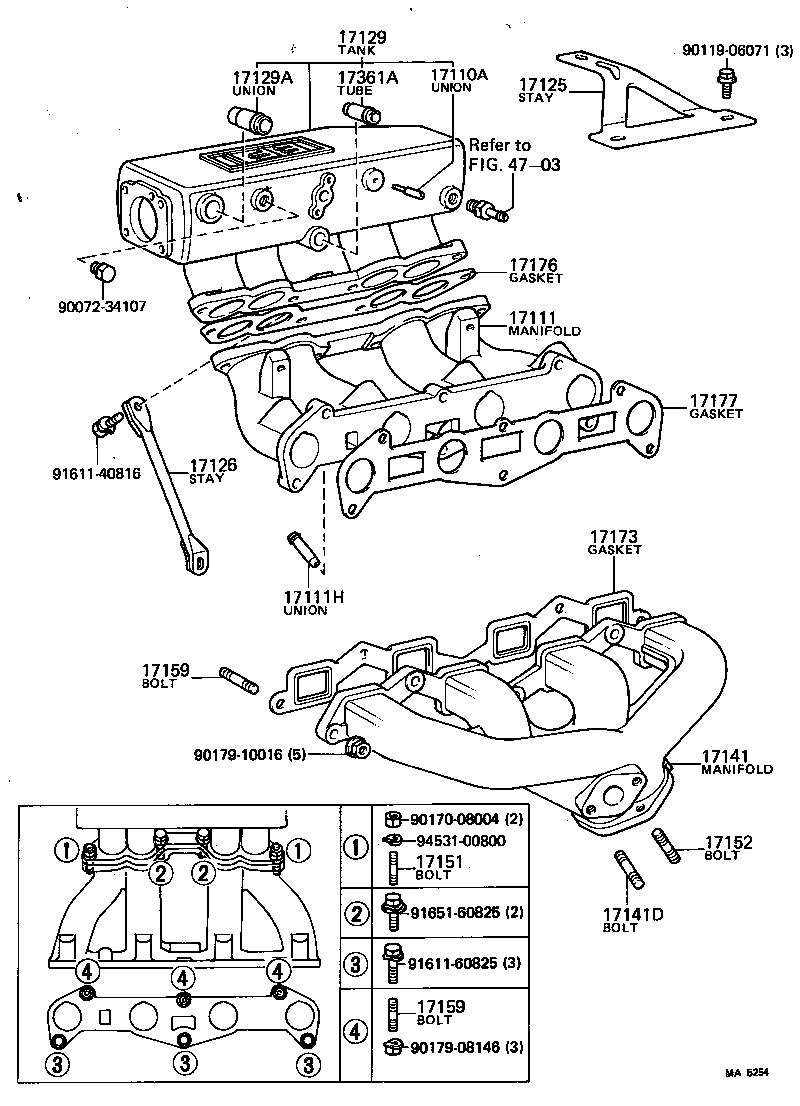

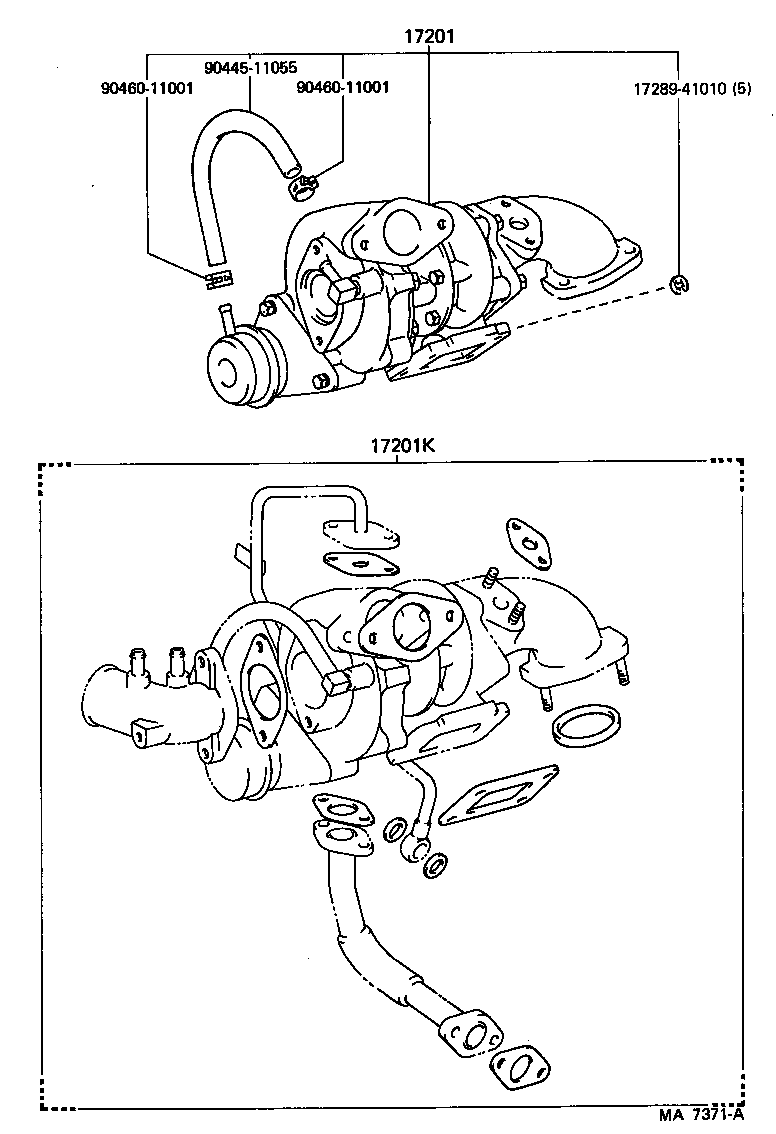

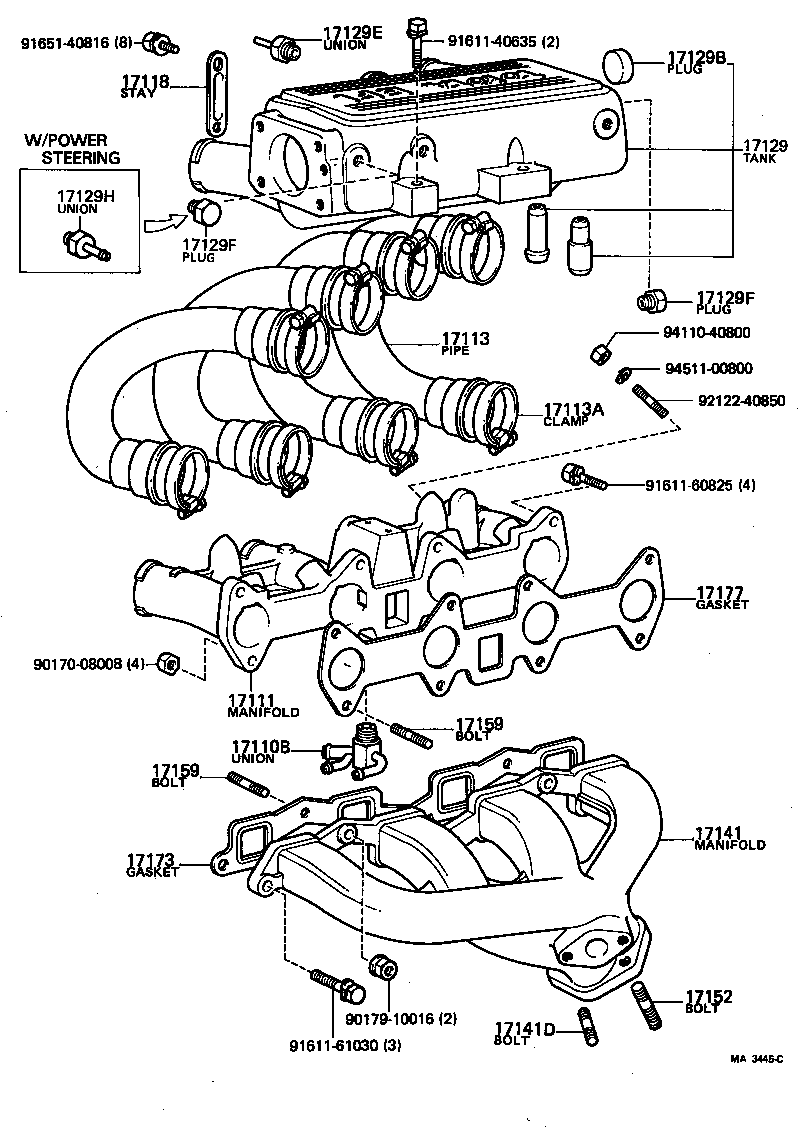

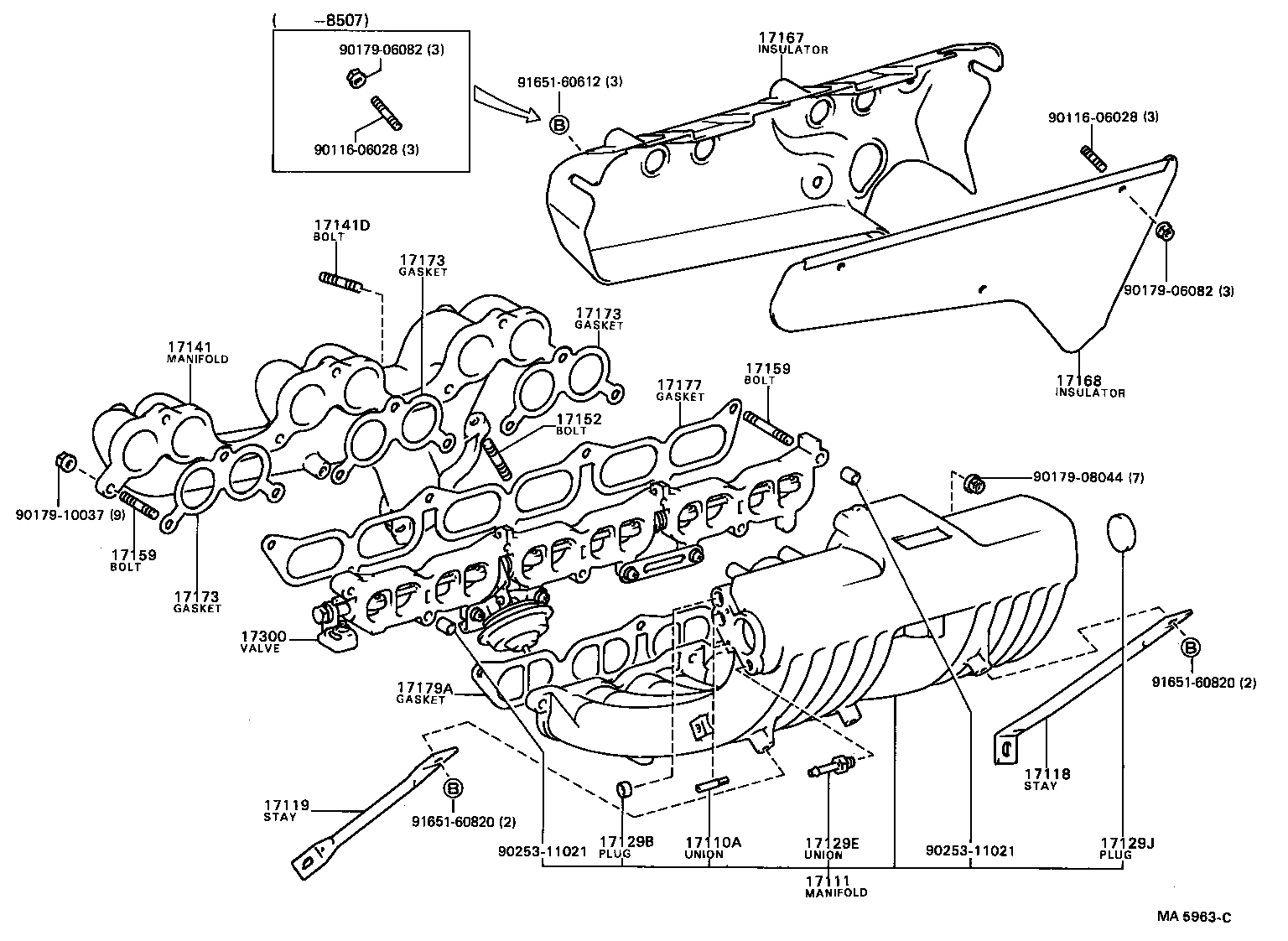

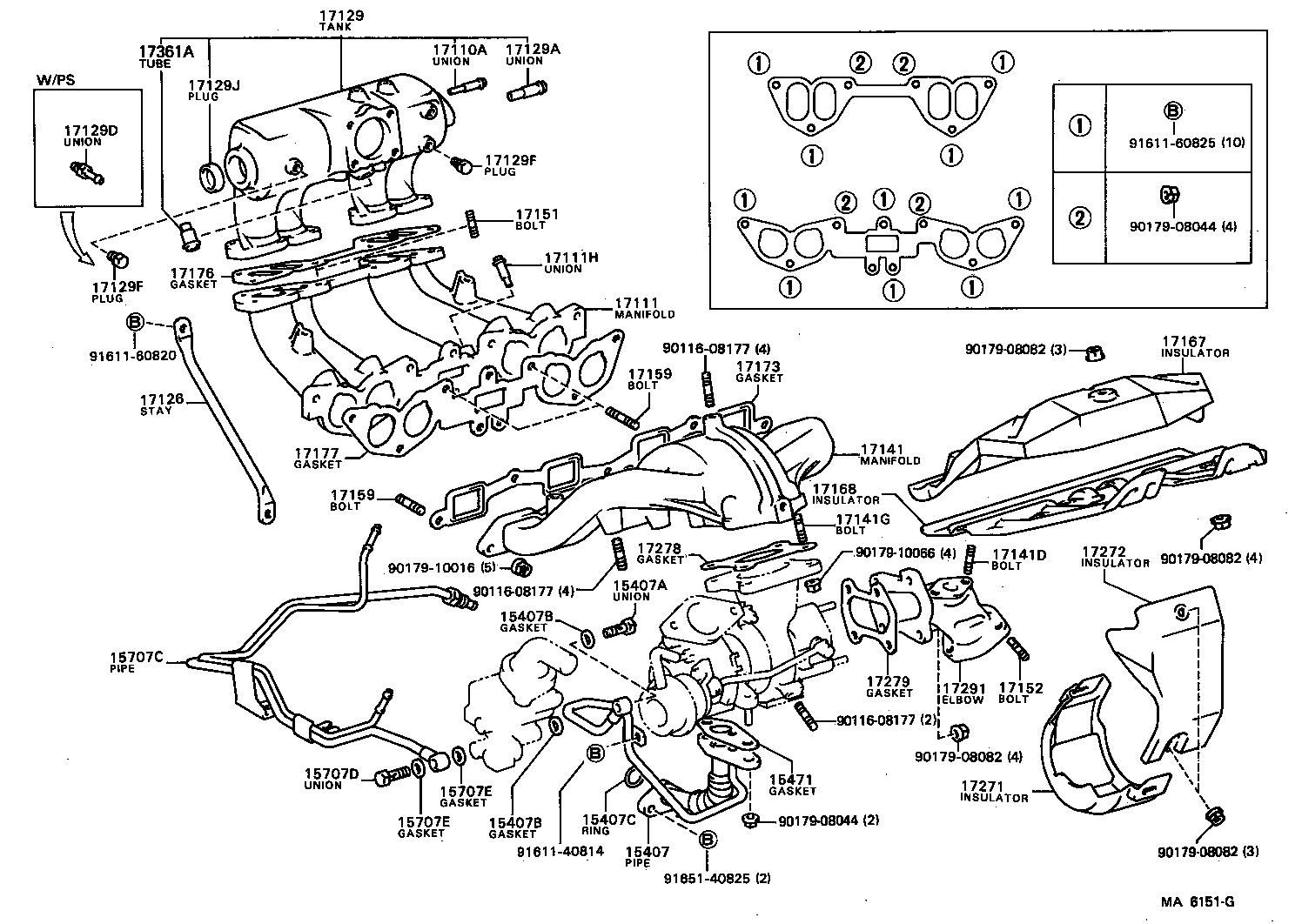

Figure MA6758G MA6758G 1983-08 → 1985-07 Figure MA5915C MA5915C 1981-07 → 1985-01 Figure MA7547B MA7547B 1985-01 → — Figure MA5963C MA5963C 1982-08 → — Figure MA7370 MA7370 1982-02 → — Figure MA8963 MA8963 1982-02 → 1983-08 Figure MA7371A MA7371A 1983-08 → — Figure MA6828A MA6828A 1981-07 → — Figure MA5287B MA5287B 1981-07 → 1982-08 Figure MA5267E MA5267E 1981-07 → 1985-07 Figure MA3445C MA3445C 1981-07 → 1983-08 Figure MA5254 MA5254 1981-07 → 1983-08 Figure MA6151G MA6151G 1982-10 → 1985-07 Figure MA6152C MA6152C 1982-10 → 1983-08 Figure MA6768D MA6768D 1983-08 → 1985-07

Part groups

PNCDescription
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407C Ring, O(FOR TURBO OIL PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
15475 Deflector, Oil
15707C Pipe Sub-assy, Oil
15707D Bolt, Union(FOR OIL PIPE)
15707E Gasket(FOR OIL PIPE)
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16347 Gasket, Water By-pass
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17024 Housing Sub-assy, Compressor
17025A Bolt, Stud(FOR TURBINE HOUSING)
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111G Union(FOR INTAKE MANIFOLD WATER)
17111H Union(FOR INTAKE MANIFOLD WATER)
17113 Pipe, Intake
17113A Clamp, Intake Pipe, NO.1
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17129F Plug, Intake Manifold Suction Hole
17129G Tube, Egr Inlet
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17129M Bolt, Stud(FOR COLD START INJECTOR)
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17201 Turbocharger Sub-assy
17201K Gasket Kit, Turbocharger
17201L Bolt & Seal Kit, Turbocharger
17225 Housing, Turbine
17229 Band, V
17230 Actuator Assy, W/Bracket
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17274 Elbow, Compressor Inlet
17275 Elbow, Compressor Outlet
17276 Gasket, Compressor Inlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17289 Ring, Retaining
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17293A Bolt, Stud(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17344B Union(FOR AIR HOSE)
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
