Toyota Celica
1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan
Discontinued model
Data version 1986-05

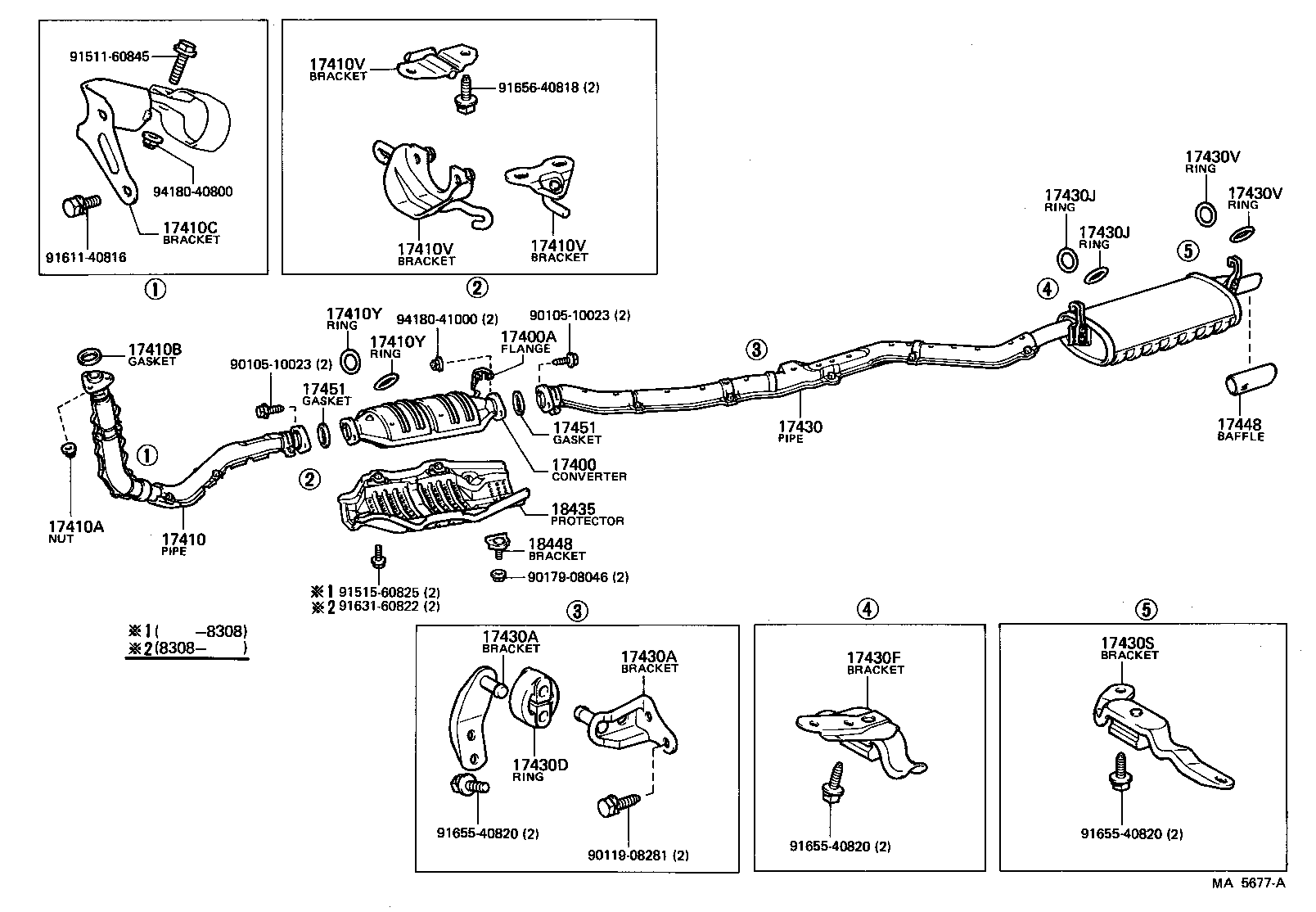

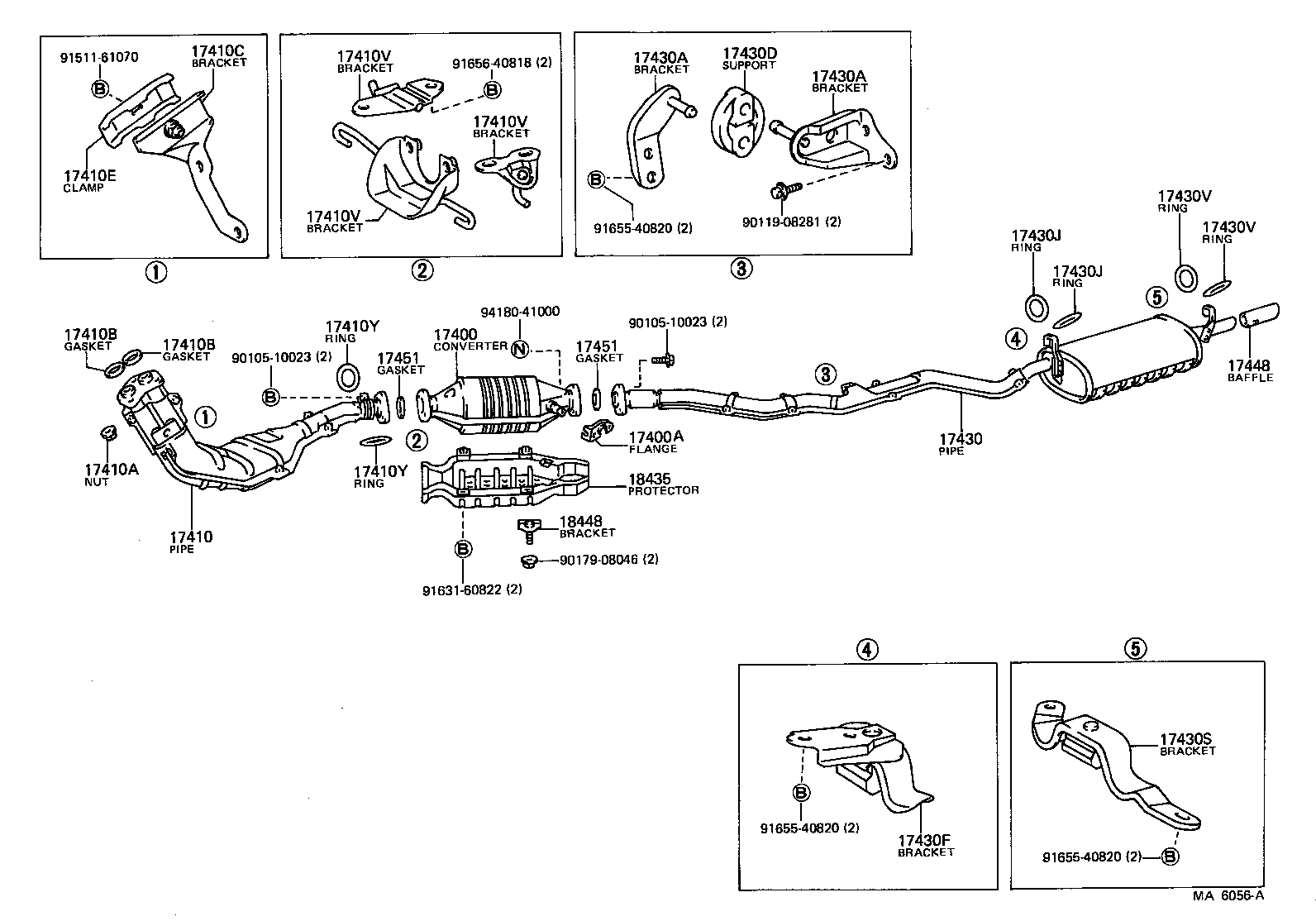

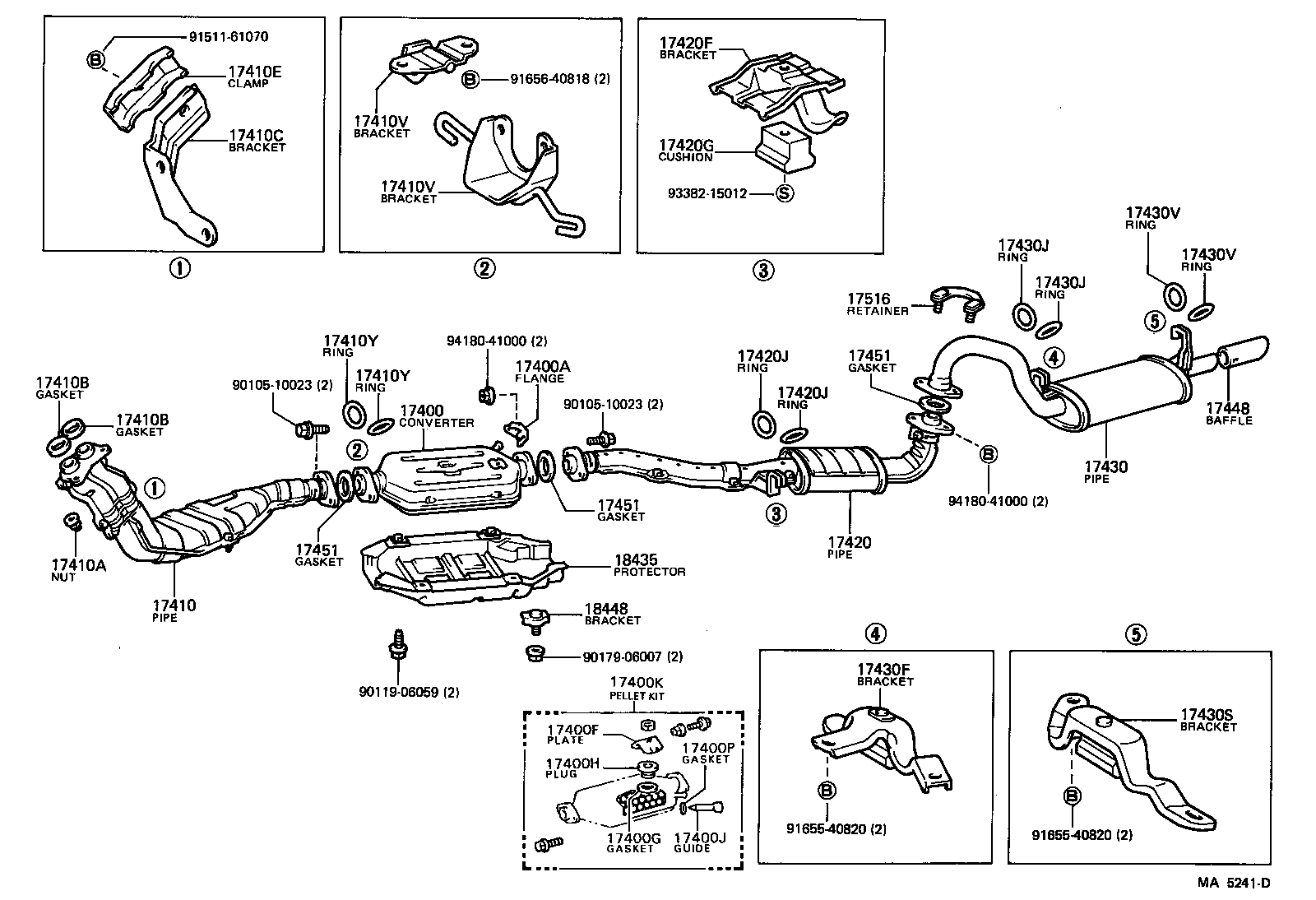

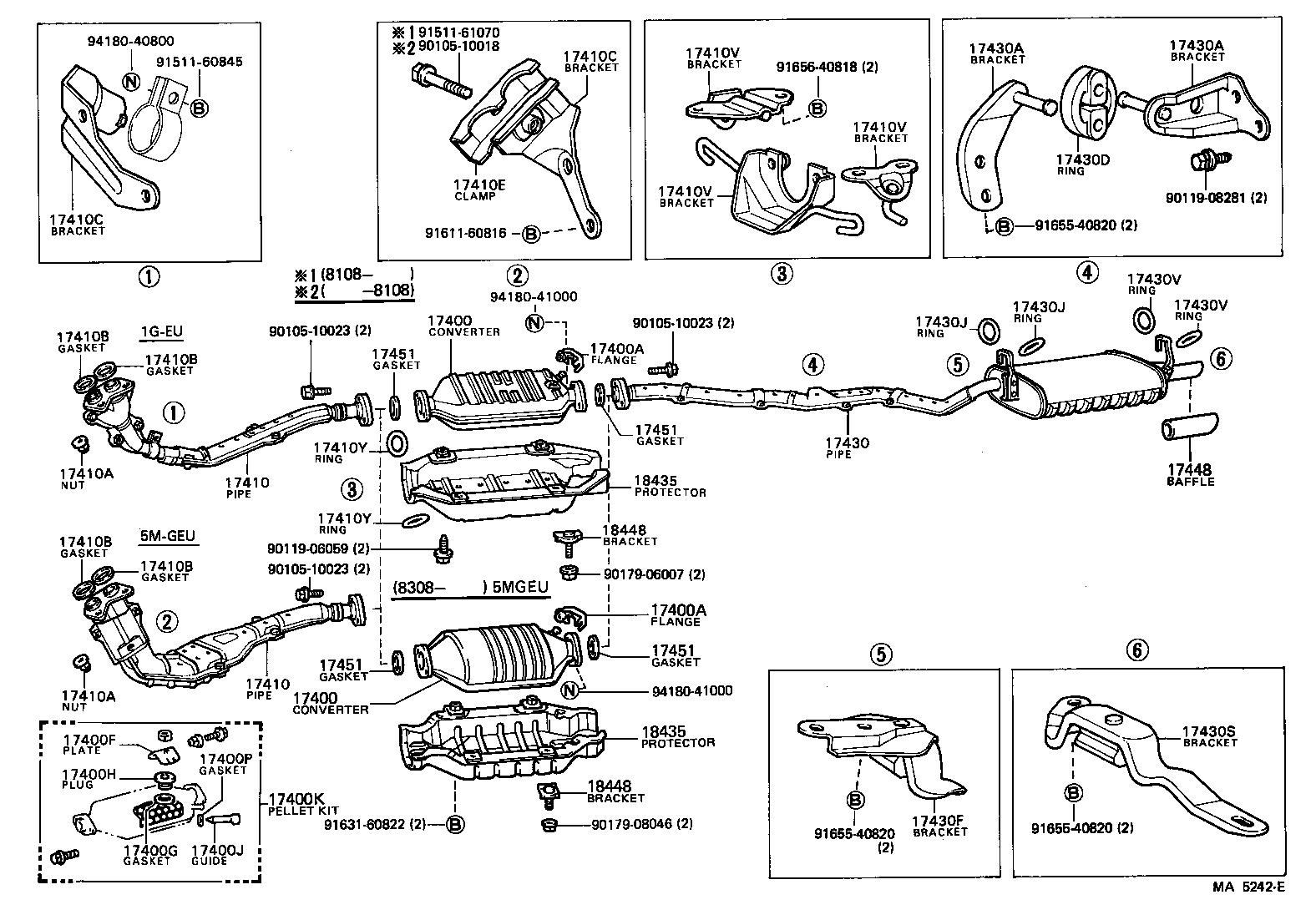

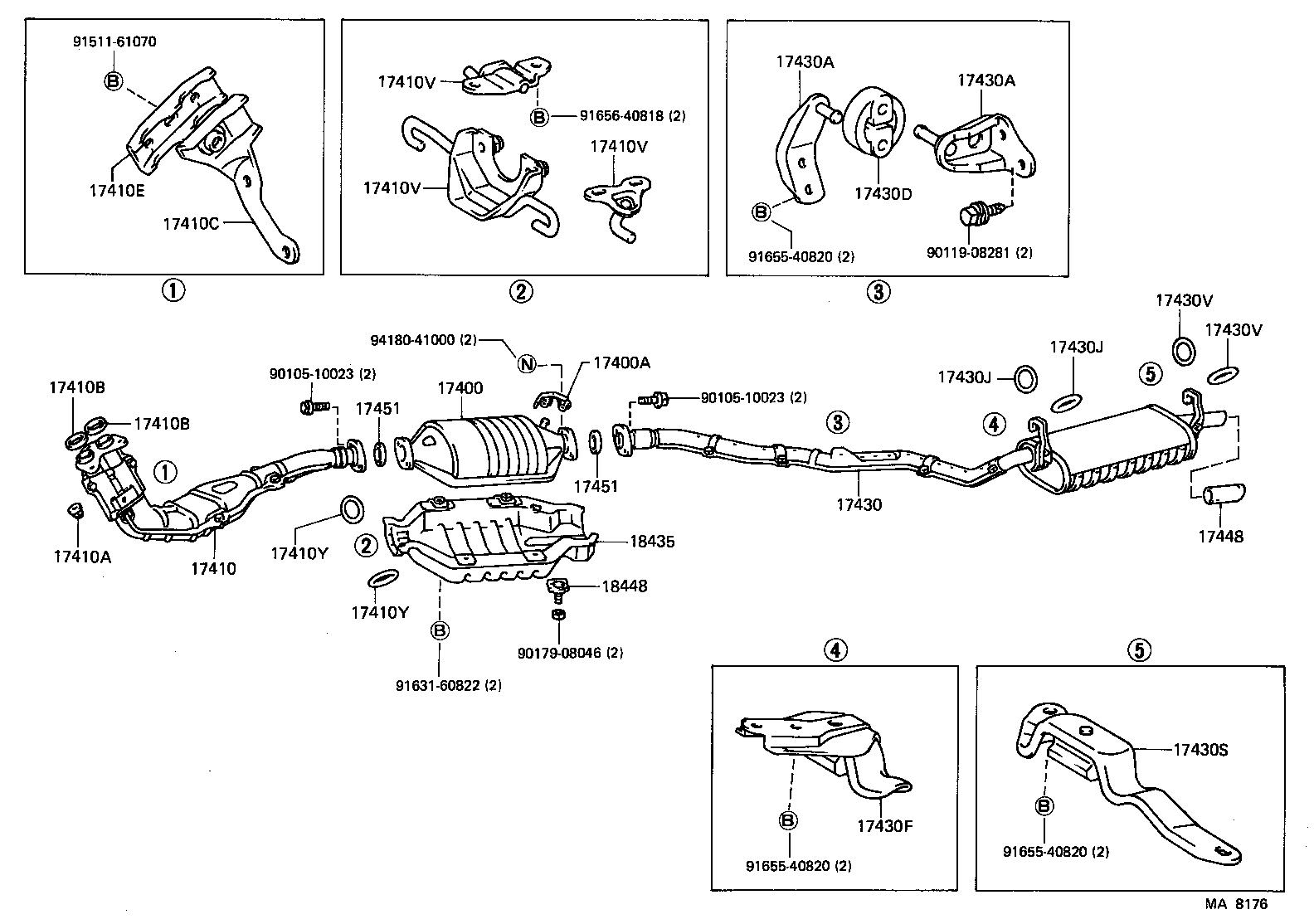

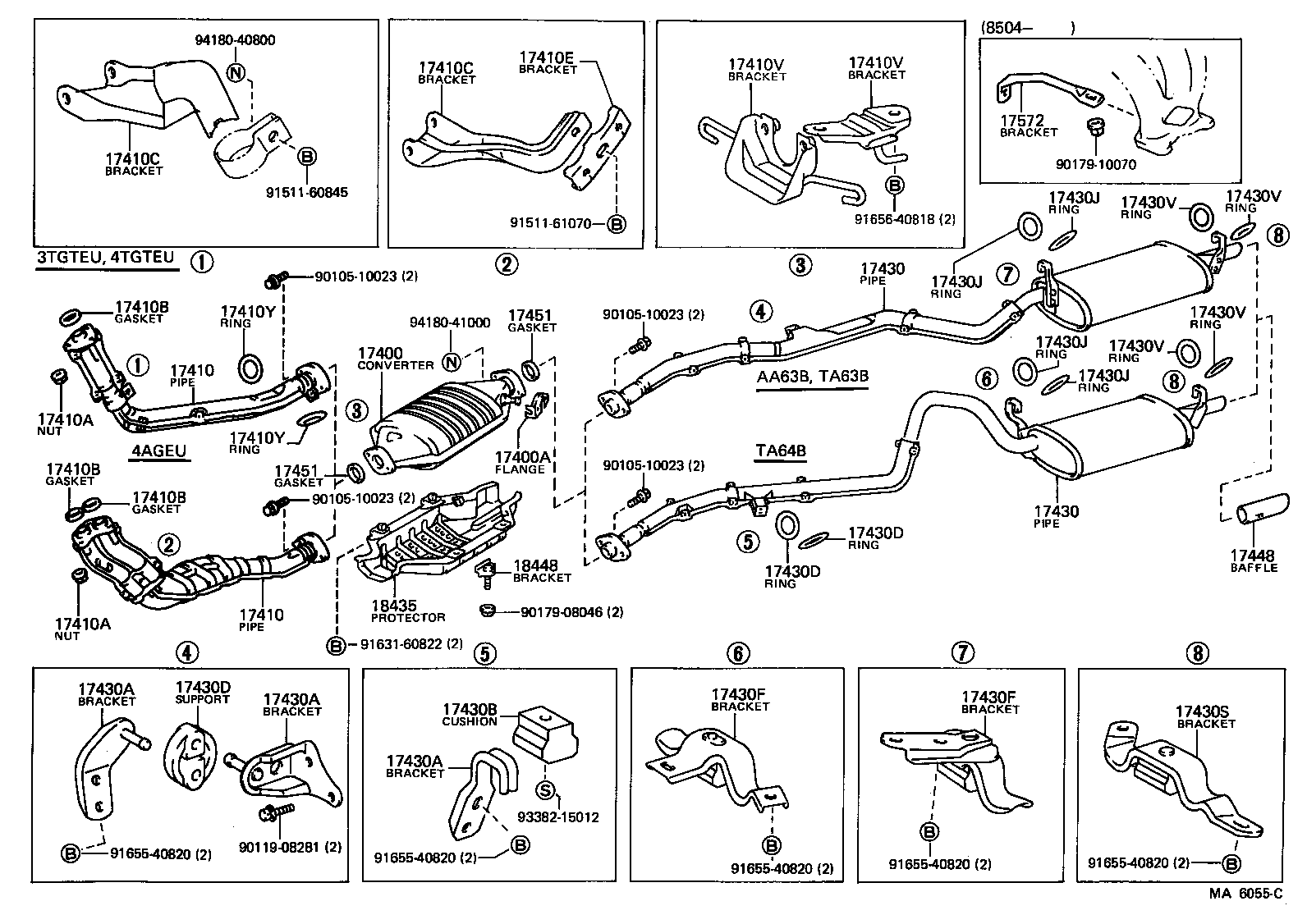

Exhaust Pipe
33 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400A | Flange, Thermosenser Inlet |
| 17400F | Plate, Catalyzer Inlet Plug Lock |
| 17400G | Gasket, Catalyzer Inlet |
| 17400H | Plug, W/Head Straight Screw(FOR CATALYZER INLET) |
| 17400J | Guide, Catalytic Converter Sensor |
| 17400K | Pellet Kit |
| 17400P | Gasket(FOR CATALYTIC CONVERTER SENSOR GUIDE) |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420F | Bracket, Exhaust Pipe, Center |
| 17420G | Cushion, Exhaust Pipe Center, Center |
| 17420J | Bolt OR Ring, Exhaust Pipe Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430B | Cushion, Exhaust Tailpipe(FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17516 | Retainer, Exhaust Pipe, NO.2 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
