Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

34 part groups · 24 illustrations

Illustrations

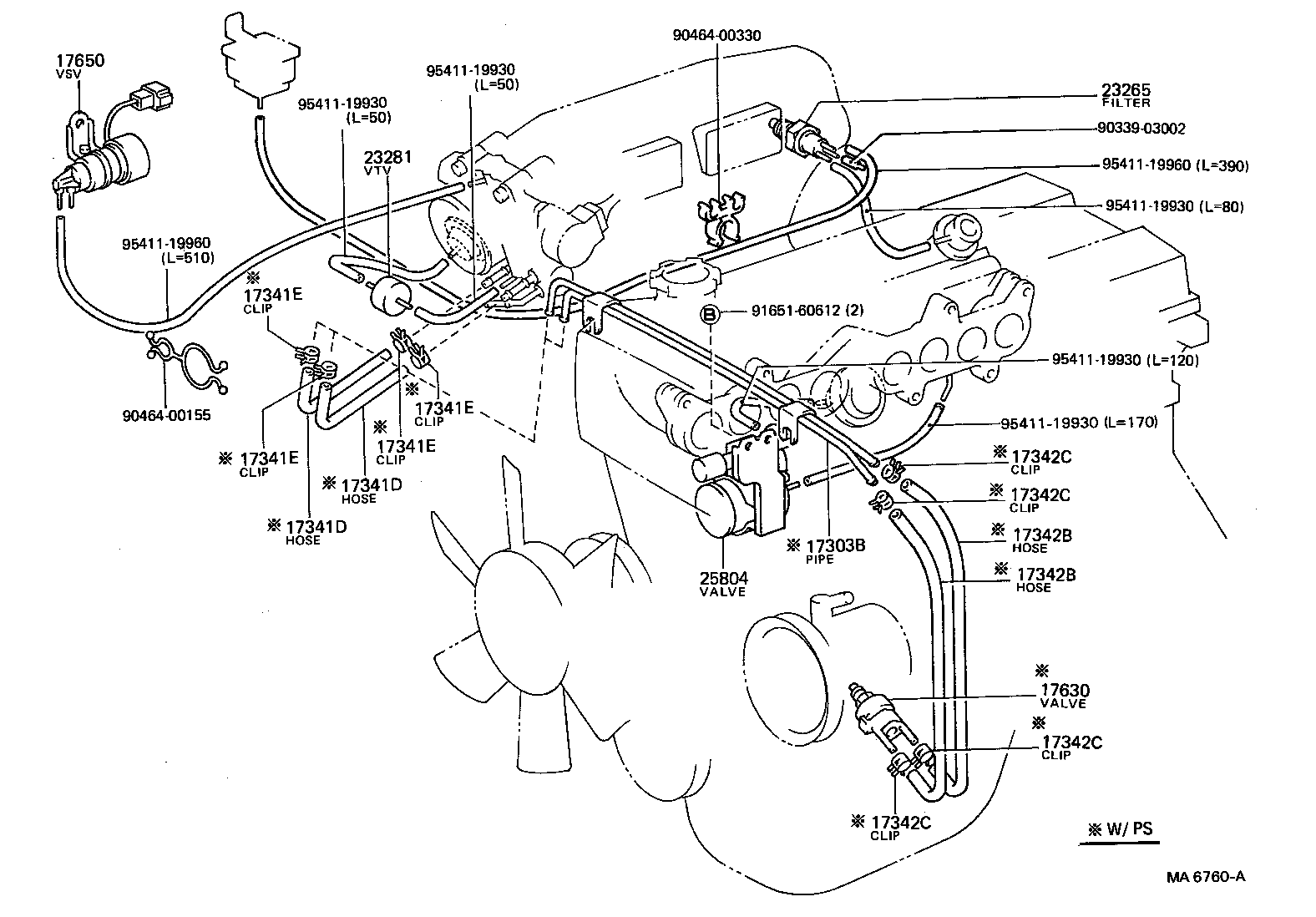

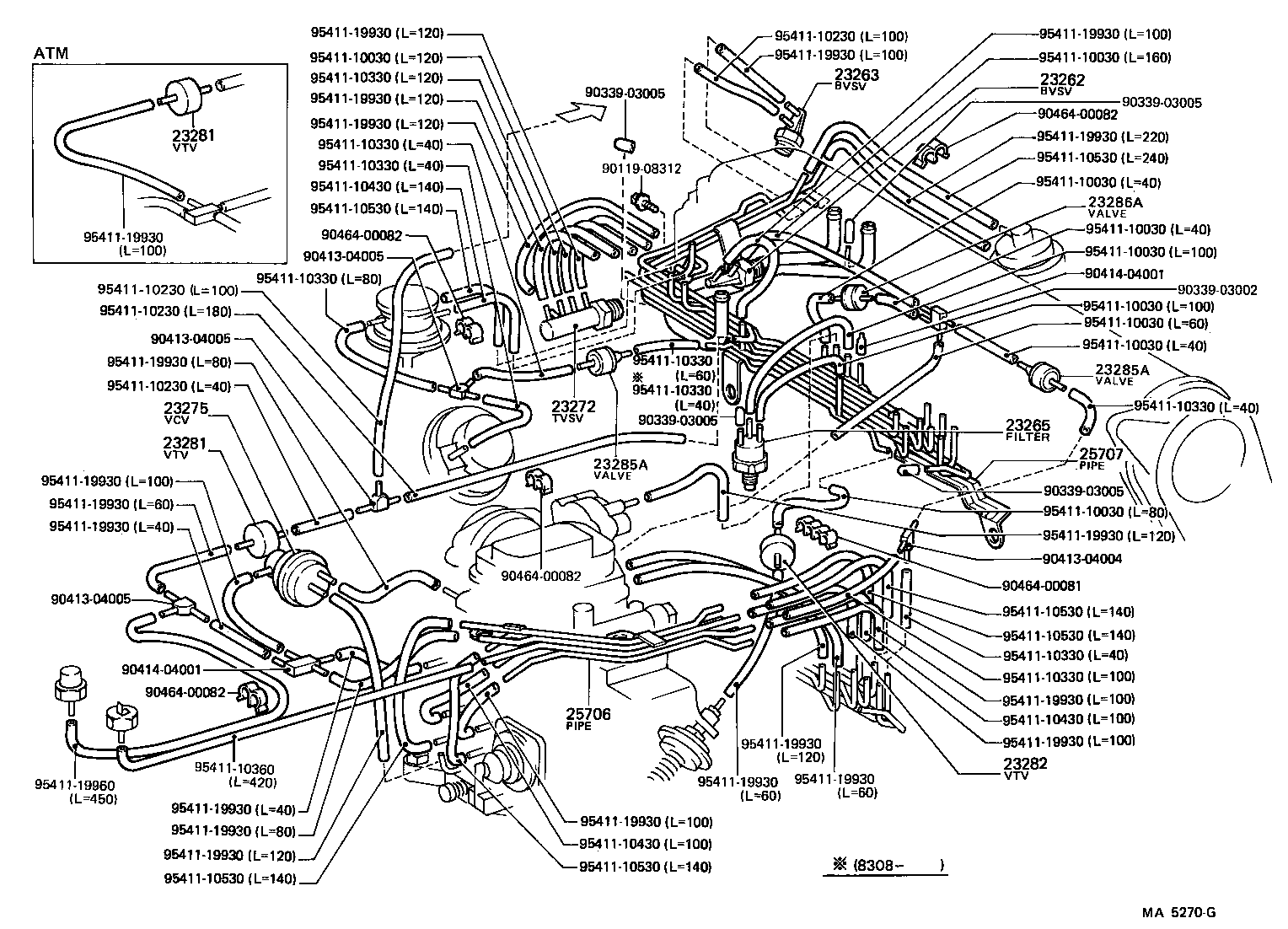

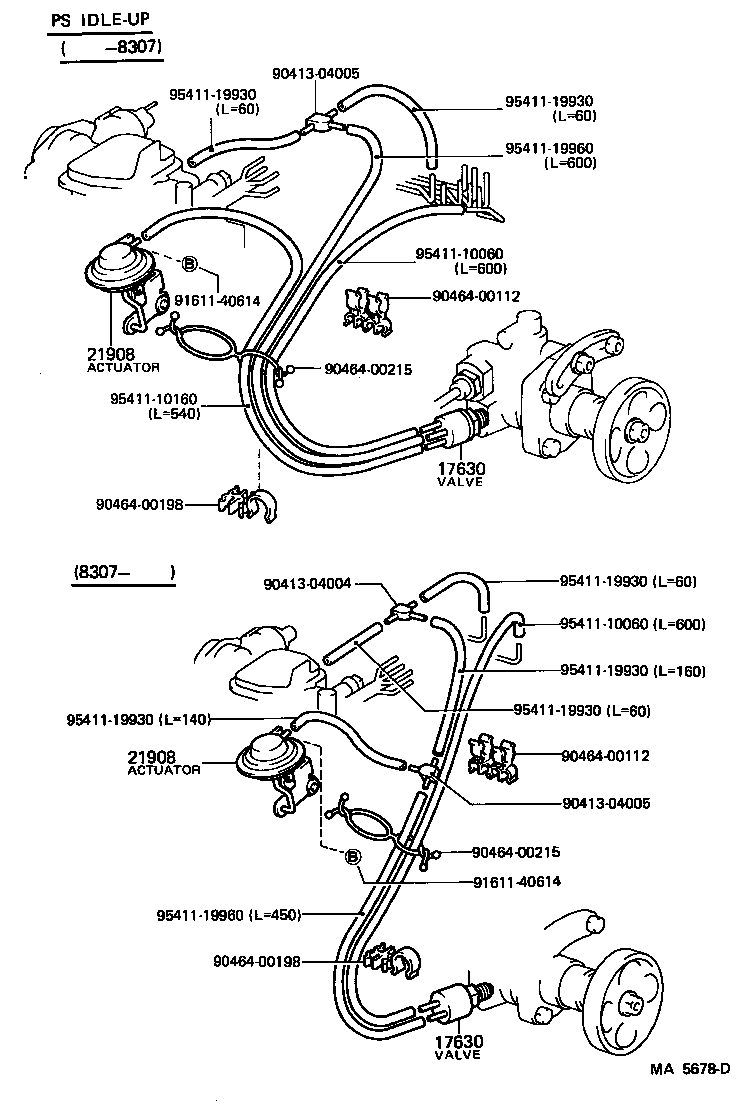

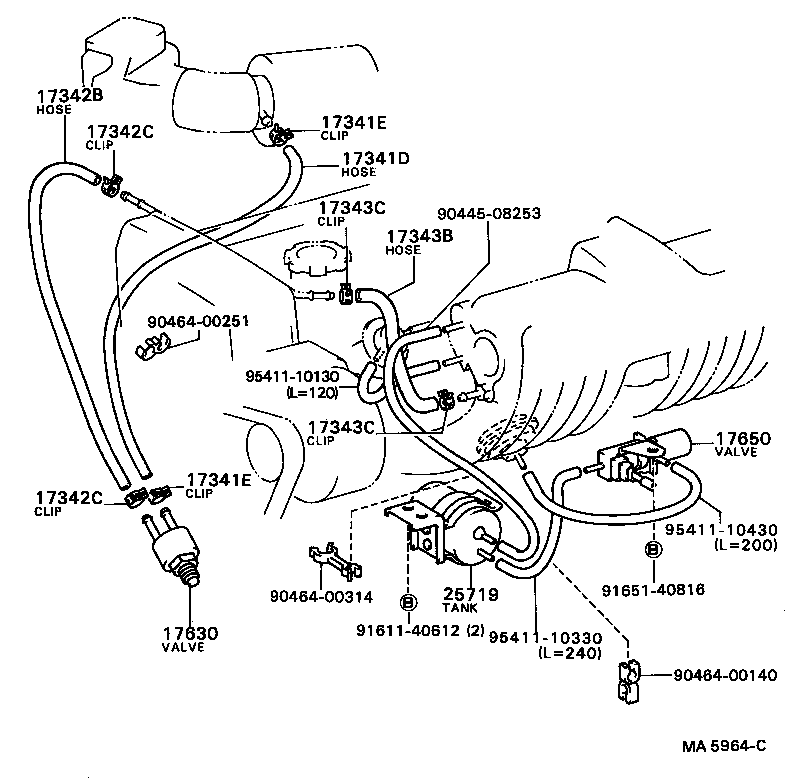

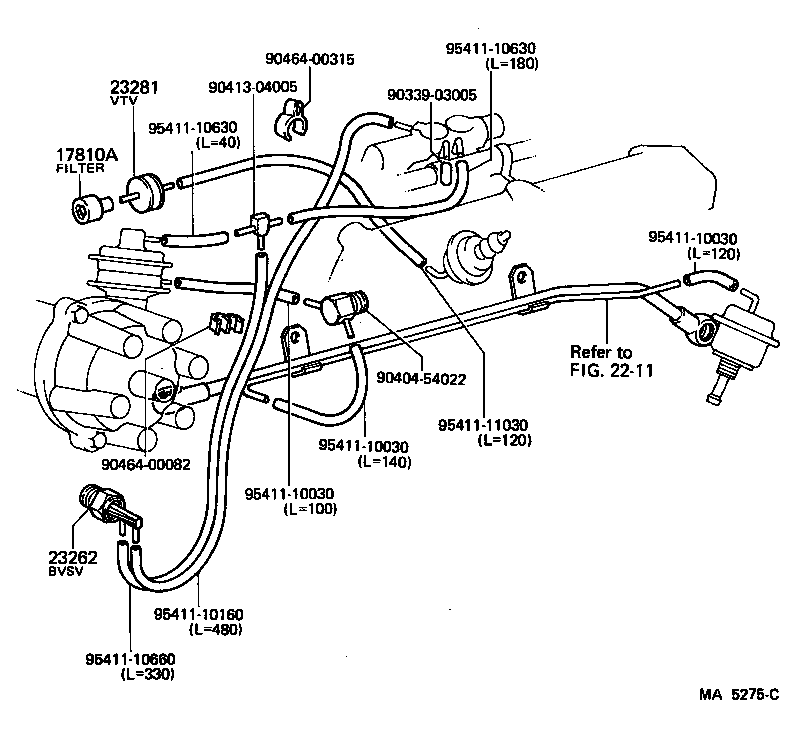

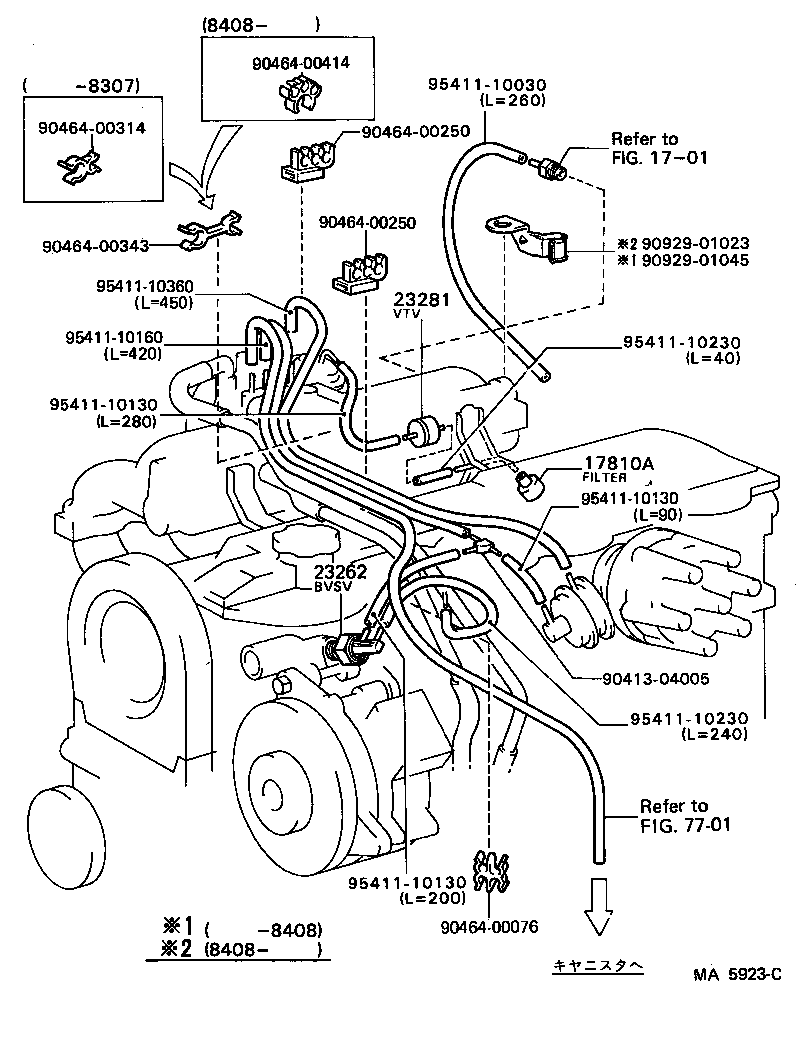

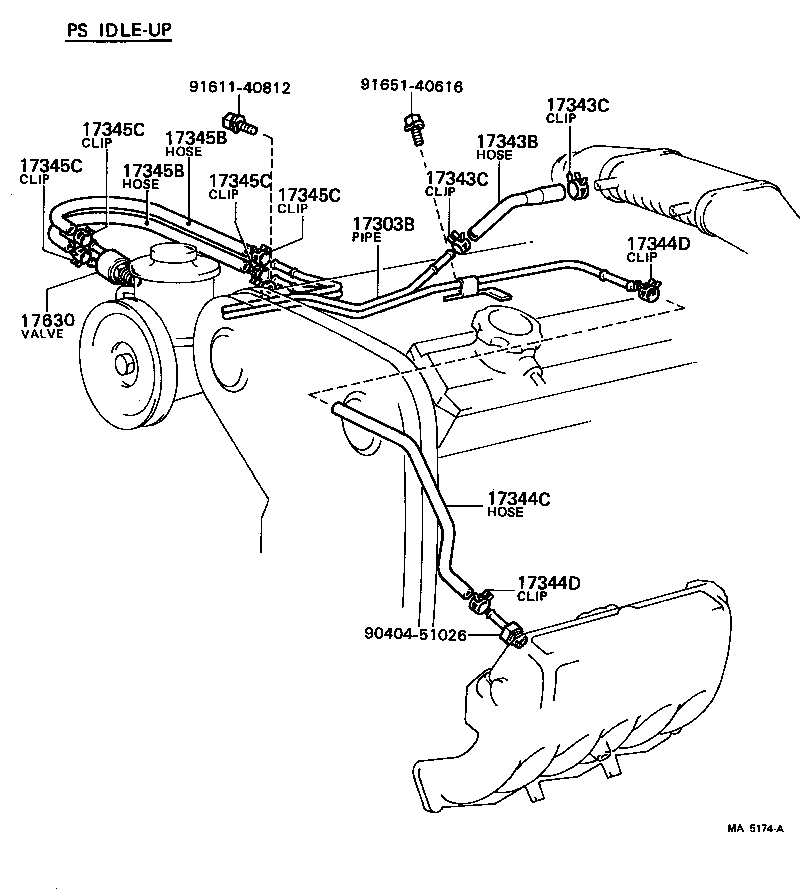

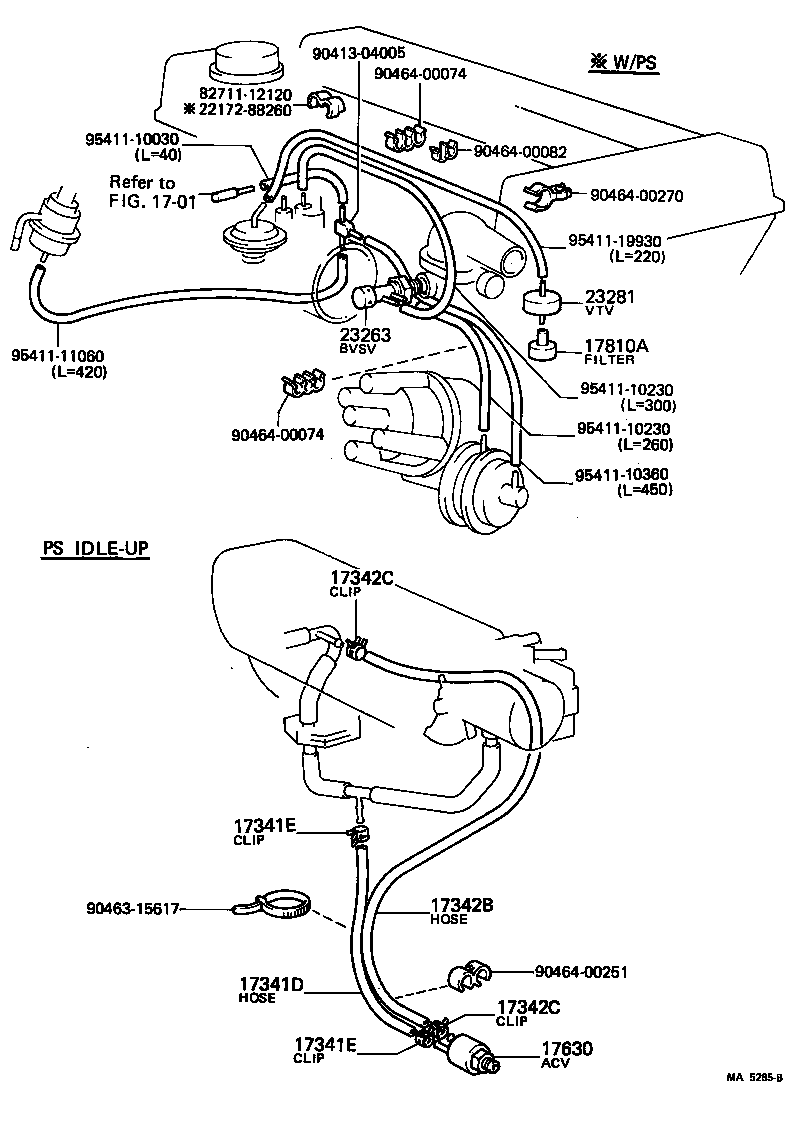

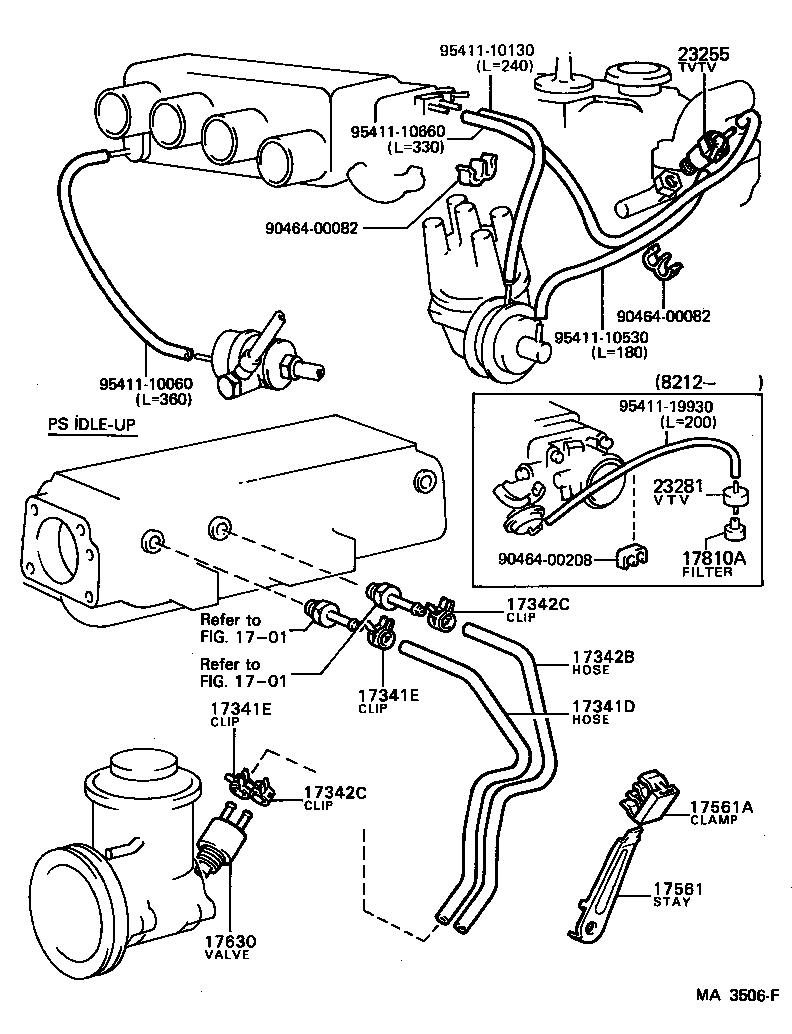

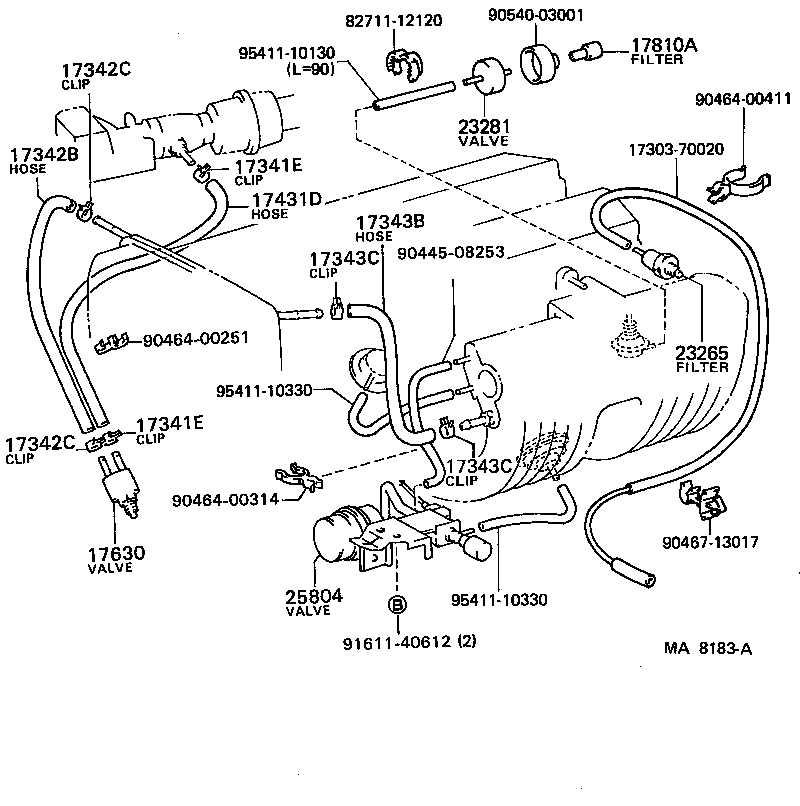

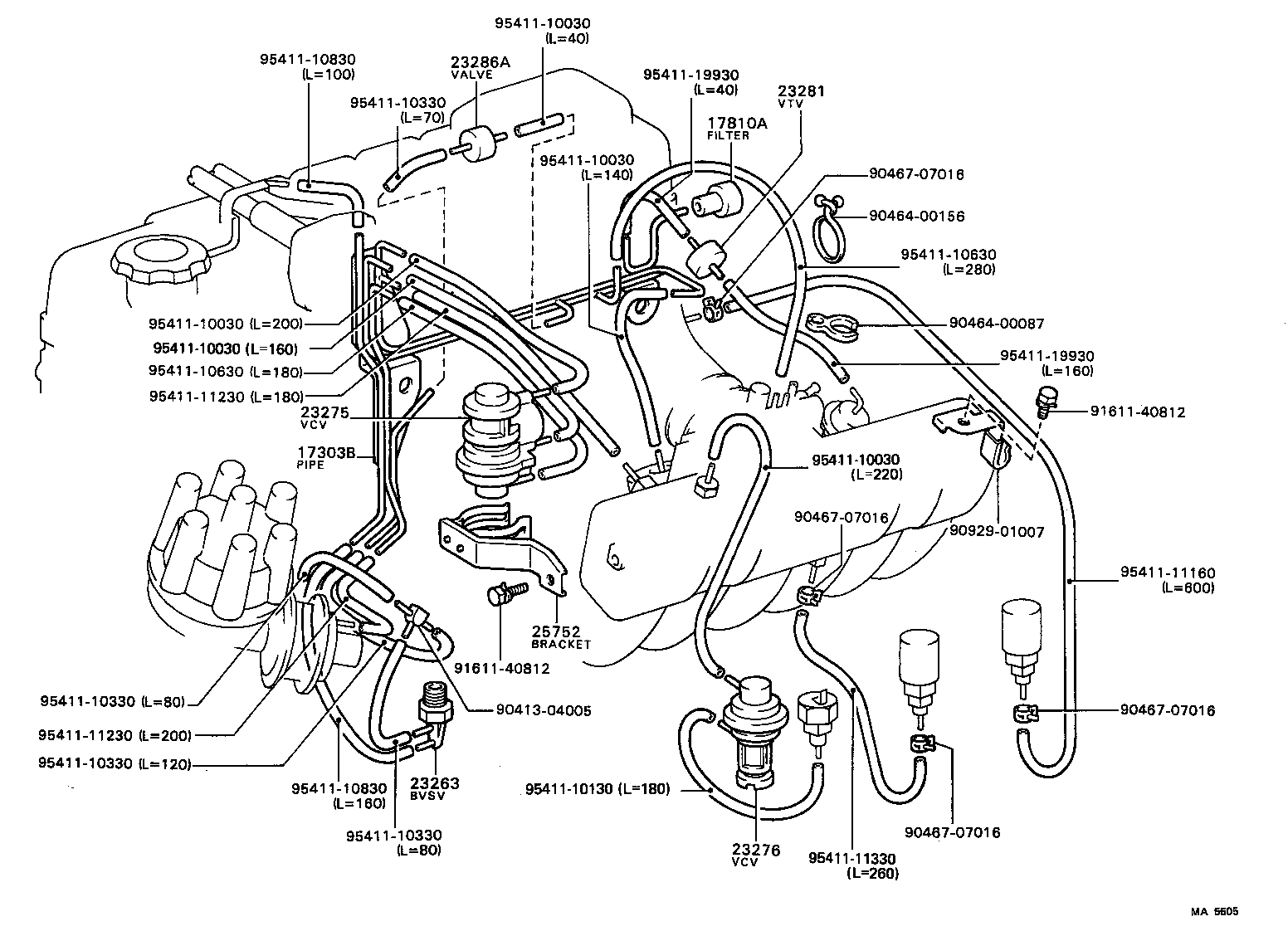

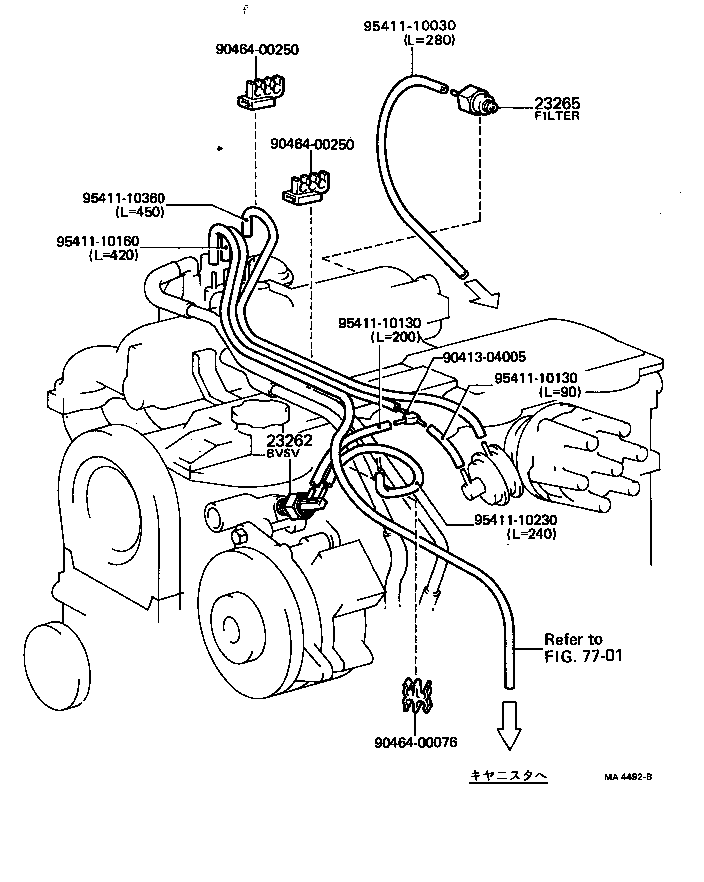

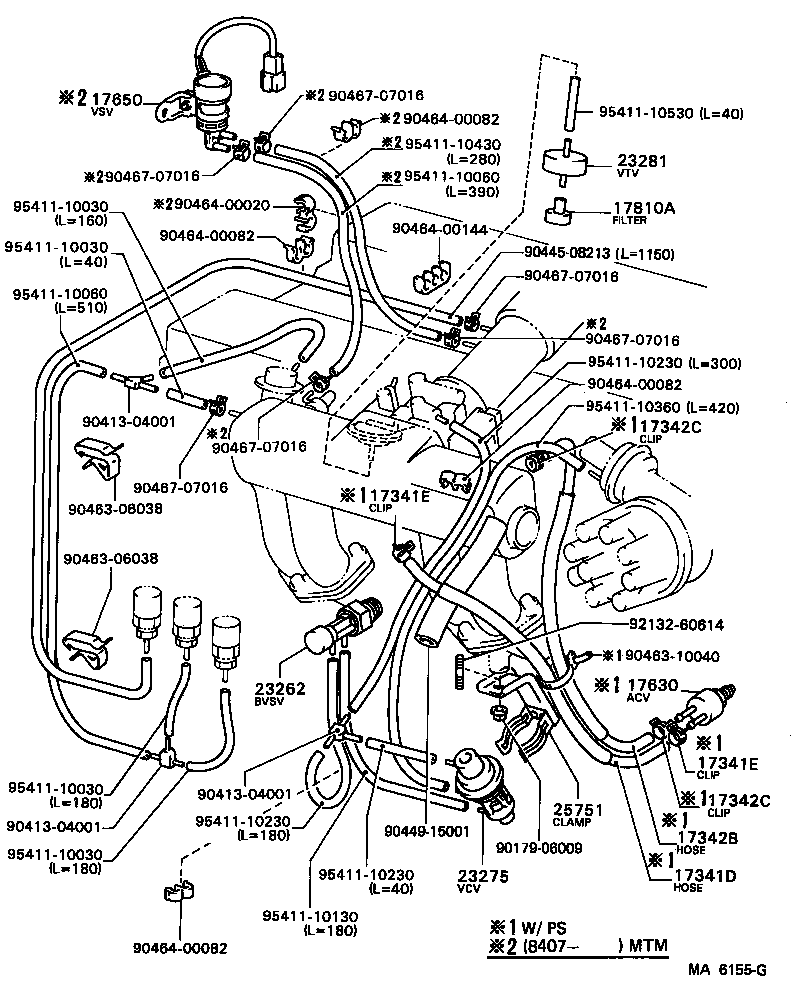

Figure MA9500 MA9500 1981-07 → — Figure MA6760A MA6760A 1983-08 → 1985-07 Figure MA9500 MA9500 1981-07 → — Figure MA4492B MA4492B 1981-07 → 1982-08 Figure MA5923C MA5923C 1982-08 → 1985-01 Figure MA8119C MA8119C 1985-01 → — Figure MA4490B MA4490B 1981-07 → 1985-01 Figure MA5964C MA5964C 1982-08 → 1985-01 Figure MA8183A MA8183A 1985-01 → — Figure MA9500 MA9500 1981-07 → — Figure MA5605 MA5605 1982-02 → 1983-08 Figure MA6821 MA6821 1983-08 → — Figure MA5275C MA5275C 1981-07 → 1983-08 Figure MA6819 MA6819 1983-08 → — Figure MA5174A MA5174A 1981-07 → — Figure MA9500 MA9500 1981-07 → — Figure MA5285B MA5285B 1981-07 → 1982-08 Figure MA9500 MA9500 1981-07 → — Figure MA5270G MA5270G 1981-07 → 1985-07 Figure MA5678D MA5678D 1981-07 → 1985-07 Figure MA9500 MA9500 1981-07 → — Figure MA3506F MA3506F 1981-07 → 1983-08 Figure MA5271A MA5271A 1981-07 → 1983-08 Figure MA6155G MA6155G 1982-10 → 1985-07

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17561 Stay(FOR AIR HOSE)
17561A Clamp(FOR AIR HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
21908 Actuator Sub-assy, Idle-up
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
