Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor

51 part groups · 2 illustrations

Illustrations

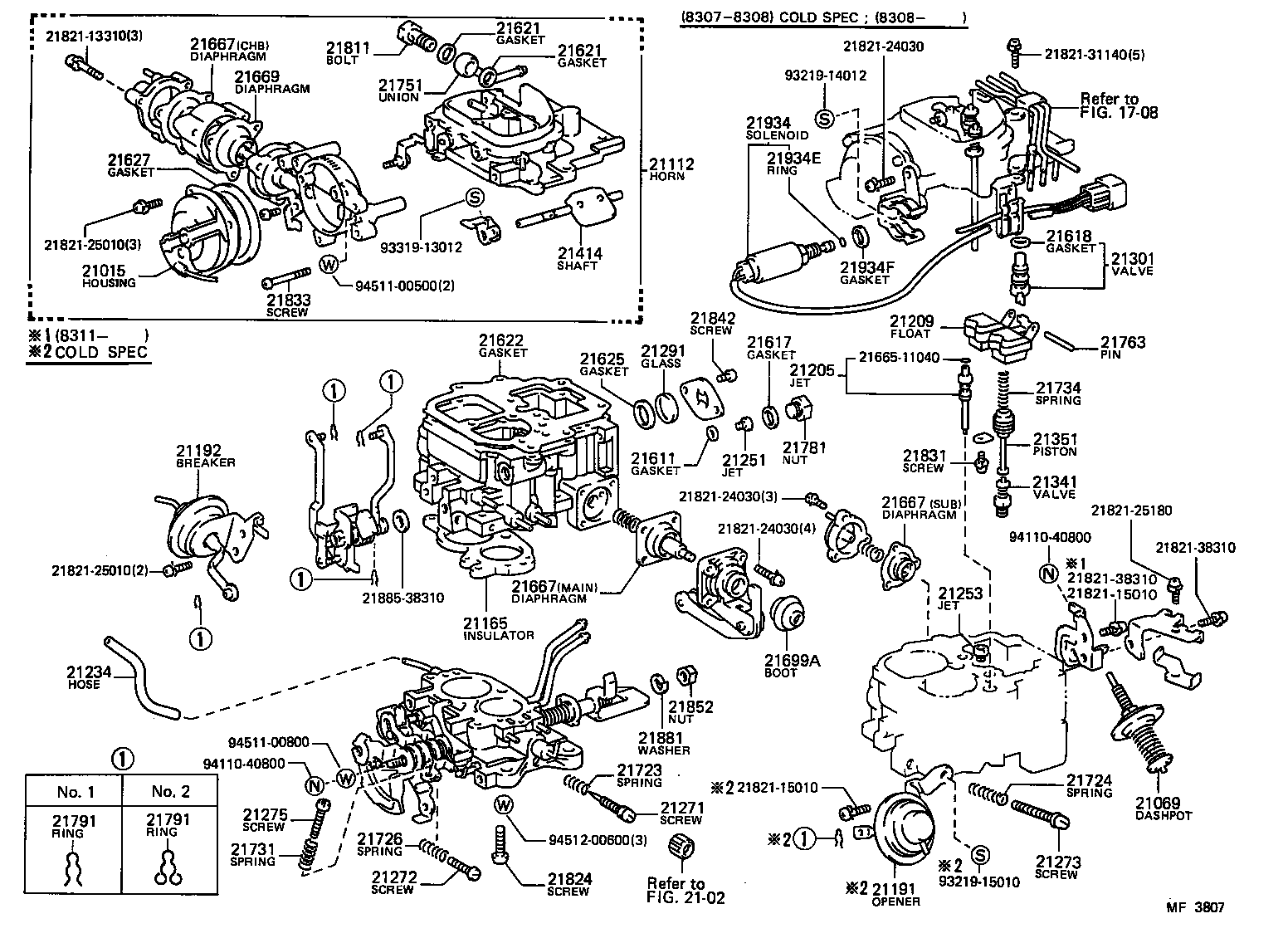

Figure MF2691F MF2691F 1981-07 → 1983-08 Figure MF3807 MF3807 1981-07 → 1985-07

Part groups

PNCDescription
21015 Housing Sub-assy, Coil
21069 Dash Pot Sub-assy
21112 Horn, Air
21165 Insulator
21191 Opener
21192 Breaker
21205 Jet Sub-assy, Slow
21209 Float Sub-assy
21234 Pipe OR Hose
21251 Jet, 1ST Main
21253 Jet, 2ND Main
21271 Screw, Idle Adjusting
21272 Screw, 1ST Idle Adjusting
21273 Screw, Throttle Adjusting
21275 Screw, Adjusting
21291 Glass, Level Gage
21301 Valve Sub-assy, Needle
21341 Valve, Power
21347 Valve, Solenoid
21351 Piston, Power
21414 Shaft, Choke
21611 Gasket, Main Jet
21617 Gasket, Main Passage Plug
21618 Gasket, Needle Valve Seat
21621 Gasket, Union Nipple
21622 Gasket, Air Horn
21625 Gasket, Level Gage
21627 Gasket, Coil Housing
21641 Gasket(FOR THERMOSTATIC VALVE COVER)
21667 Diaphragm
21669 Diaphragm
21699A Boot(FOR ACCELERATION PUMP)
21723 Spring, Idle Adjusting
21724 Spring, Throttle Adjusting
21726 Spring, 1ST Idle Adjusting
21731 Spring, Dash Pot OR Positioner Adjusting
21734 Spring, Power Piston
21751 Union, Nipple
21763 Pin, Float Lever
21781 Plug, Main Passage(FOR CARBURETOR JET)
21791 Ring, Snap, NO.1(FOR CARBURETOR LINK)
21811 Bolt, Union Nipple
21824 Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET)
21831 Screw, Power Piston Stop
21833 Screw, Set, NO.1(FOR CARBURETOR BODY SET)
21842 Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852 Nut, Throttle Lever Set
21881 Washer, Lock(FOR THROTTLE SHAFT)
21934 Solenoid, Throttle Valve
21934E Ring, O(FOR SOLENOID VALVE)
21934F Gasket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
