Toyota Celica
1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan
Discontinued model
Data version 1986-05

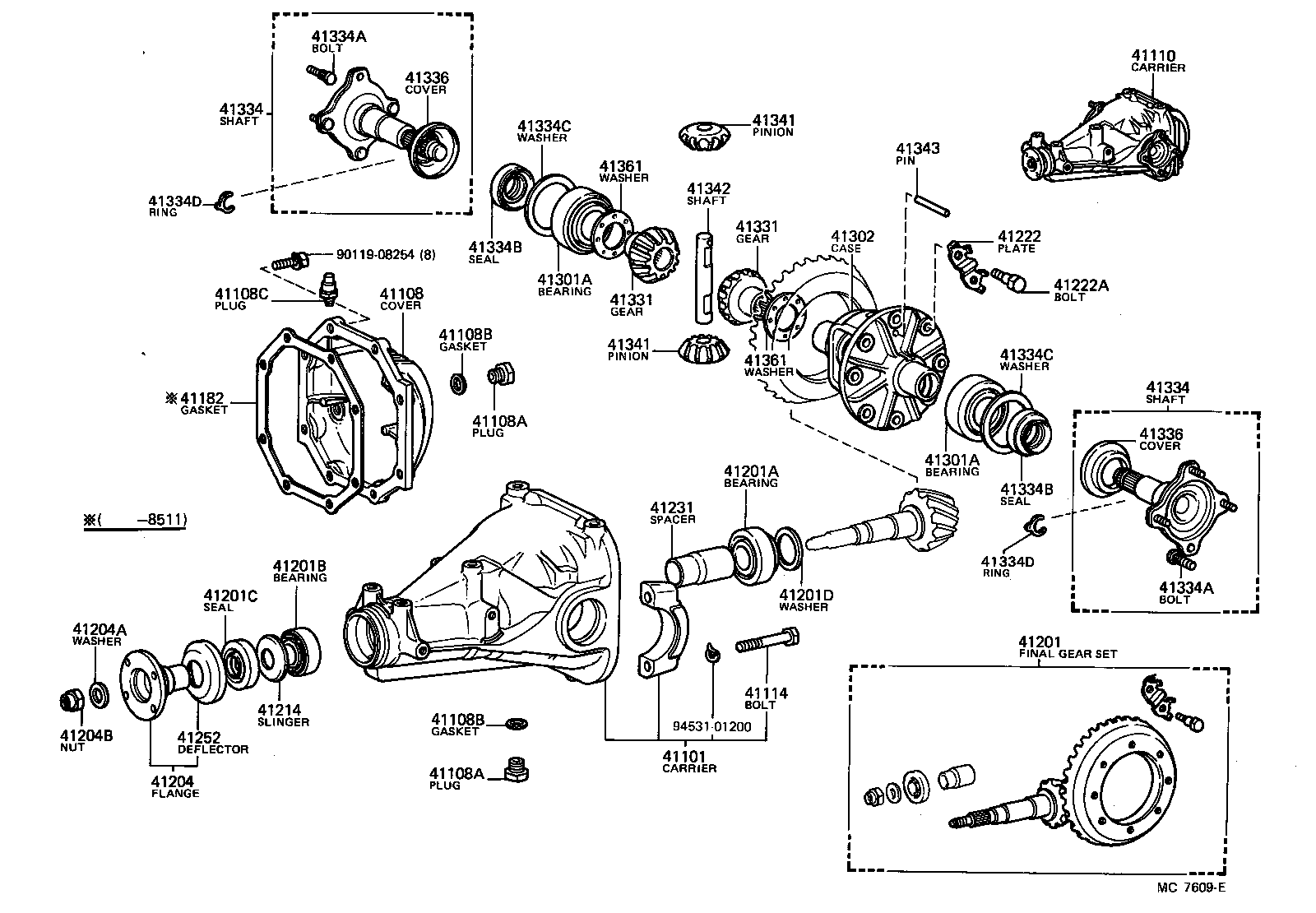

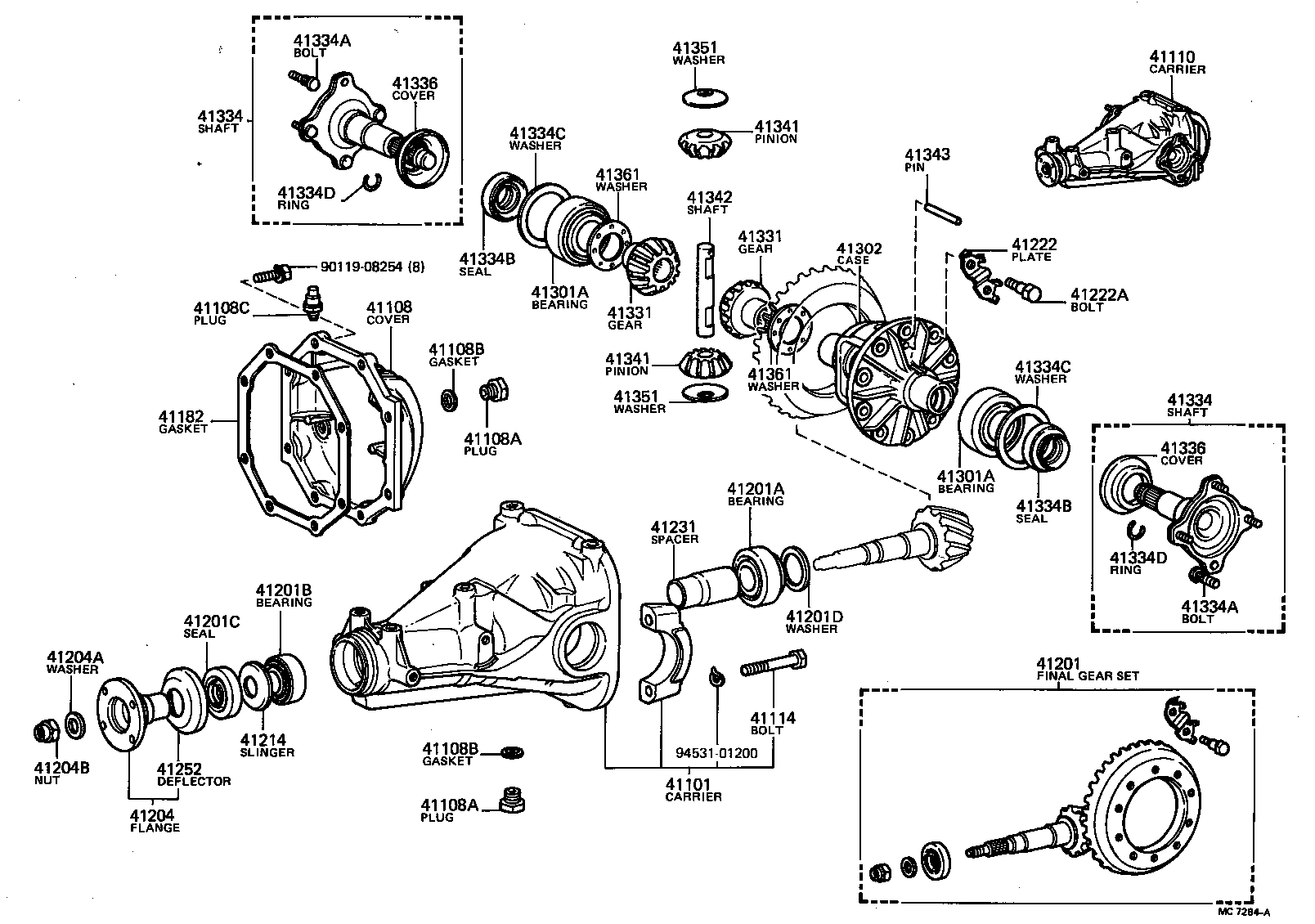

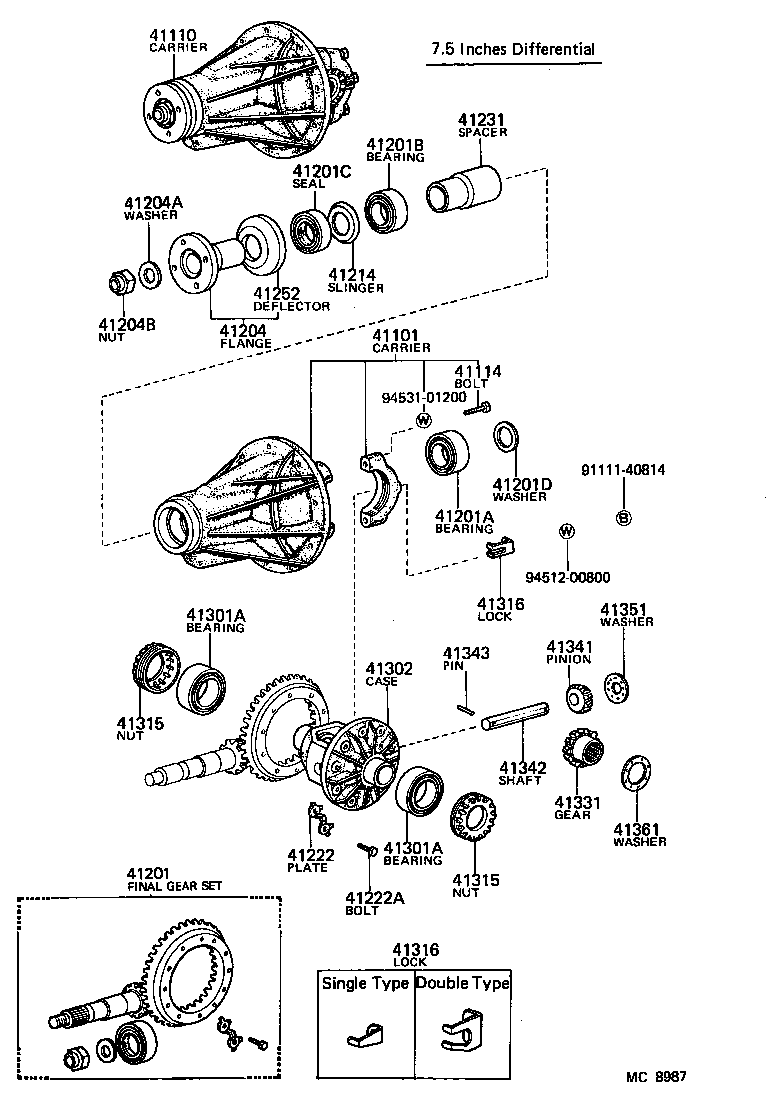

Rear Axle Housing & Differential
56 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41108 | Cover Sub-assy, Rear Differential Carrier |
| 41108A | Plug (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41108B | Gasket (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41108C | Plug, Breather (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41182 | Gasket, Differential Carrier Cover |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204A | Washer, Plate (FOR REAR DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41302B | Washer, Spring(FOR REAR DIFFERENTIAL CASE) |

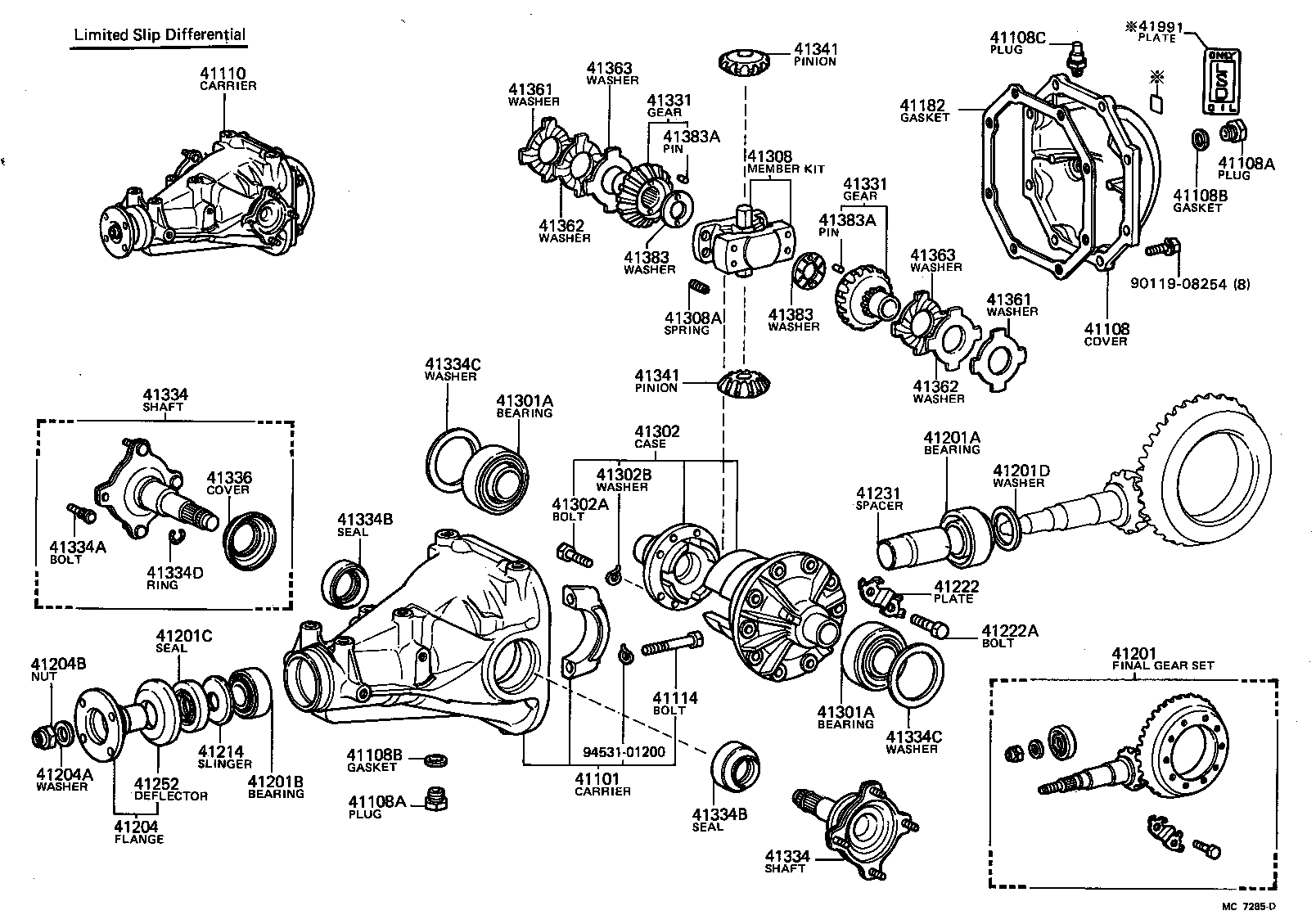

| 41308 | Member Kit, Clutch |
| 41308A | Spring, Compression (FOR CLUTCH MEMBER) |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41331 | Gear, Rear Differential Side |
| 41334 | Shaft, Rear Differential Side Gear |
| 41334A | Bolt, Serration (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334B | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334C | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334D | Ring, Shaft Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41336 | Cover, Dust(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41362 | Washer, Rear Differential Side Gear Thrust, NO.2 |
| 41363 | Washer, Rear Differential Side Gear Thrust, NO.3 |
| 41383 | Washer, Clutch Member Thrust |
| 41383A | Pin (FOR CLUTCH MEMBER THRUST WASHER STOP) |
| 41991 | Caution Plate, Rear Differential |

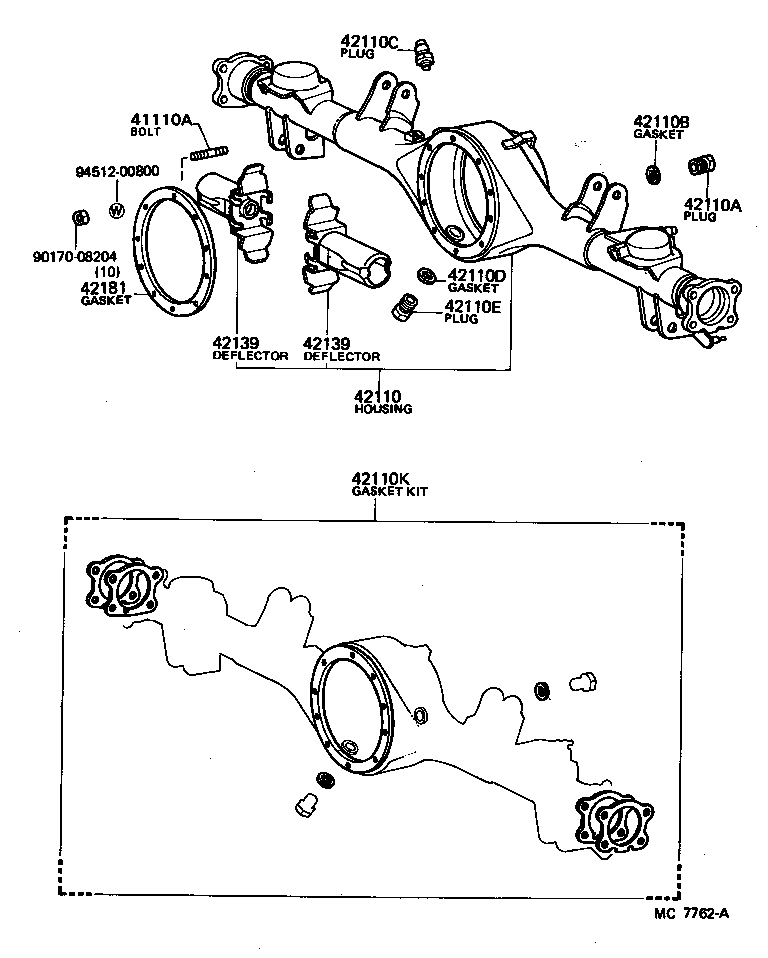

| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42110K | Gasket Kit, Differential Carrier |
| 42139 | Deflector, Rear Axle Housing Oil |
| 42181 | Gasket, Rear Differential Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
