Toyota Celica
1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan
Discontinued model
Data version 1986-05
Front Fender Apron & Dash Panel

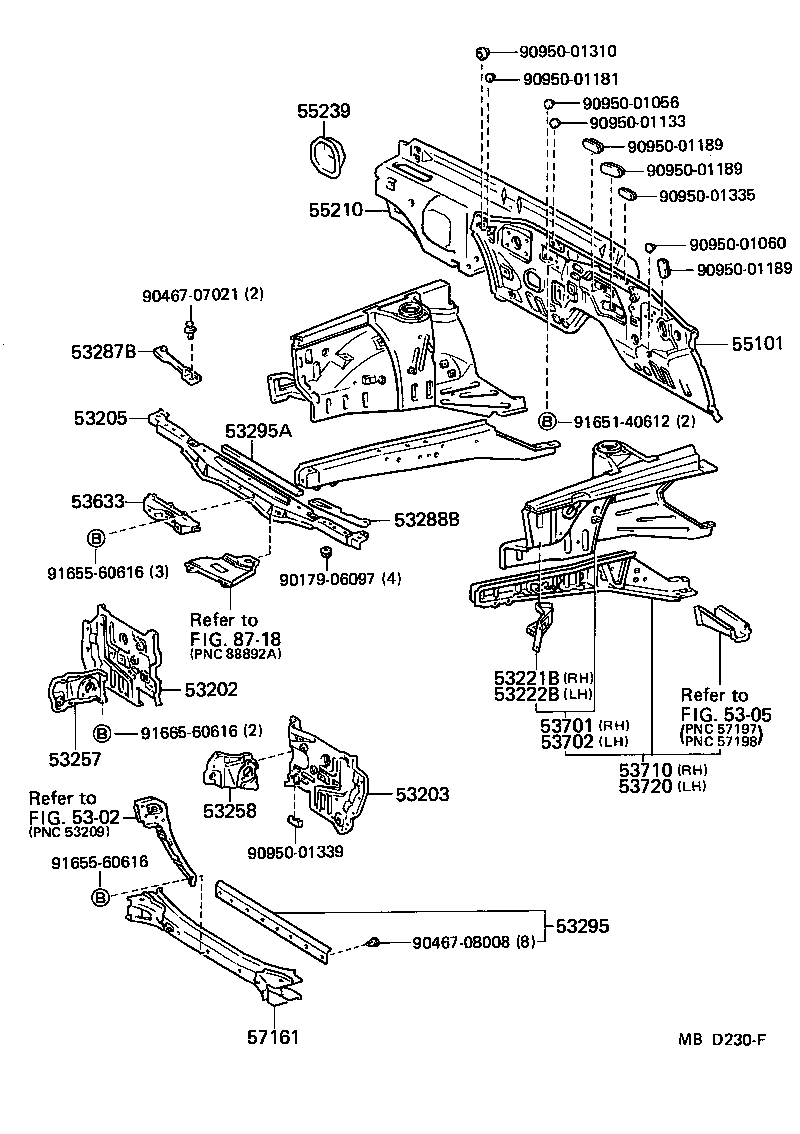

23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53221B | Brace, Radiator Support Apron, RH |
| 53222B | Brace, Radiator Support Apron, LH |
| 53257 | Bracket, Front End Panel Mounting, RH |
| 53258 | Bracket, Front End Panel Mounting, LH |
| 53287B | Extension, Radiator Support, RH |
| 53288 | Cover, Power Steering Pipe Hole |
| 53288B | Extension, Radiator Support, LH |
| 53291C | Seal, Radiator Support TO Frame |
| 53295 | Deflector, Radiator Lower Air |
| 53295A | Deflector, Radiator Upper Air |
| 53633 | Shield, Hood Lock Control Cable |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53710 | Apron Assy, W/Front Side Member, RH |
| 53720 | Apron Assy, W/Front Side Member, LH |
| 53791 | Cover, Cool Air Intake Hole |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55239 | Silencer, Steering Column Hole Cover |
| 57161 | Crossmember, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
