Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05

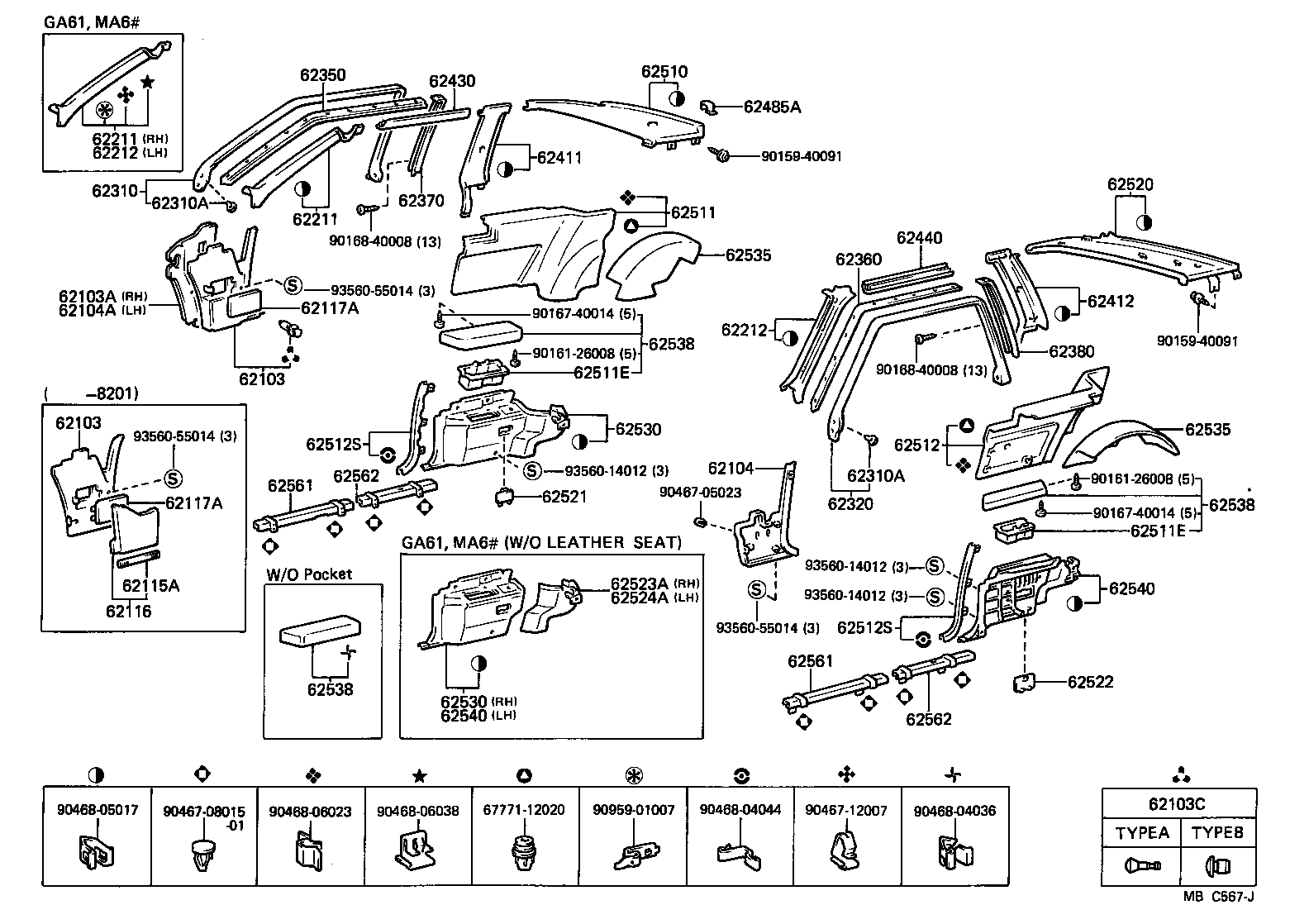

Inside Trim Board & Door Opening Trim Moulding

39 part groups · 2 illustrations

PNC	Description
62103	Board Sub-assy, Cowl Side Trim, RH
62103A	Insulator Sub-assy, Cowl Side, RH
62103C	Clip, Cowl Side Trim Board Set
62104	Board Sub-assy, Cowl Side Trim, LH
62104A	Insulator Sub-assy, Cowl Side, LH
62115A	Band, Cowl Side Trim
62116	Cover, Cowl Side Trim, Lower
62117A	Cover, Cowl Side Trim Service Hole
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62310	Weatherstrip, Roof Side Rail, RH
62310A	Clip, Roof Side Rail Weatherstrip
62320	Weatherstrip, Roof Side Rail, LH
62350	Retainer Assy, Roof Side Rail Weatherstrip Front, RH
62360	Retainer Assy, Roof Side Rail Weatherstrip Front, LH
62370	Retainer Assy, Roof Side Rail Weatherstrip, RH
62380	Retainer Assy, Roof Side Rail Weatherstrip, LH
62411	Garnish, Center Pillar, RH
62412	Garnish, Center Pillar, LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62485A	Retainer, Roof Side Inner Garnish
62510	Cover Assy, Back Window Side Garnish, RH
62511	Board, Quarter Inside Trim, RH
62511E	Pocket, Quarter Trim
62512	Board, Quarter Inside Trim, LH
62512S	Base, Quarter Trim, Front
62520	Cover Assy, Back Window Side Garnish, LH
62521	Cover, Quarter Inside Service Hole, RH
62522	Cover, Quarter Inside Service Hole, LH
62523A	Cover, Quarter Trim, Lower RH
62524A	Cover, Quarter Trim, Lower LH
62530	Panel Assy, Quarter Trim, Lower RH
62535	Pad, Quarter Wheel House Trim
62538	Panel, Quarter Trim Armrest
62540	Panel Assy, Quarter Trim, Lower LH
62561	Protector, Rocker Panel, Inner Front
62562	Protector, Rocker Panel, Inner Rear
62581	Retainer, Quarter Trim

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
