Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

13 part groups · 2 illustrations

Illustrations

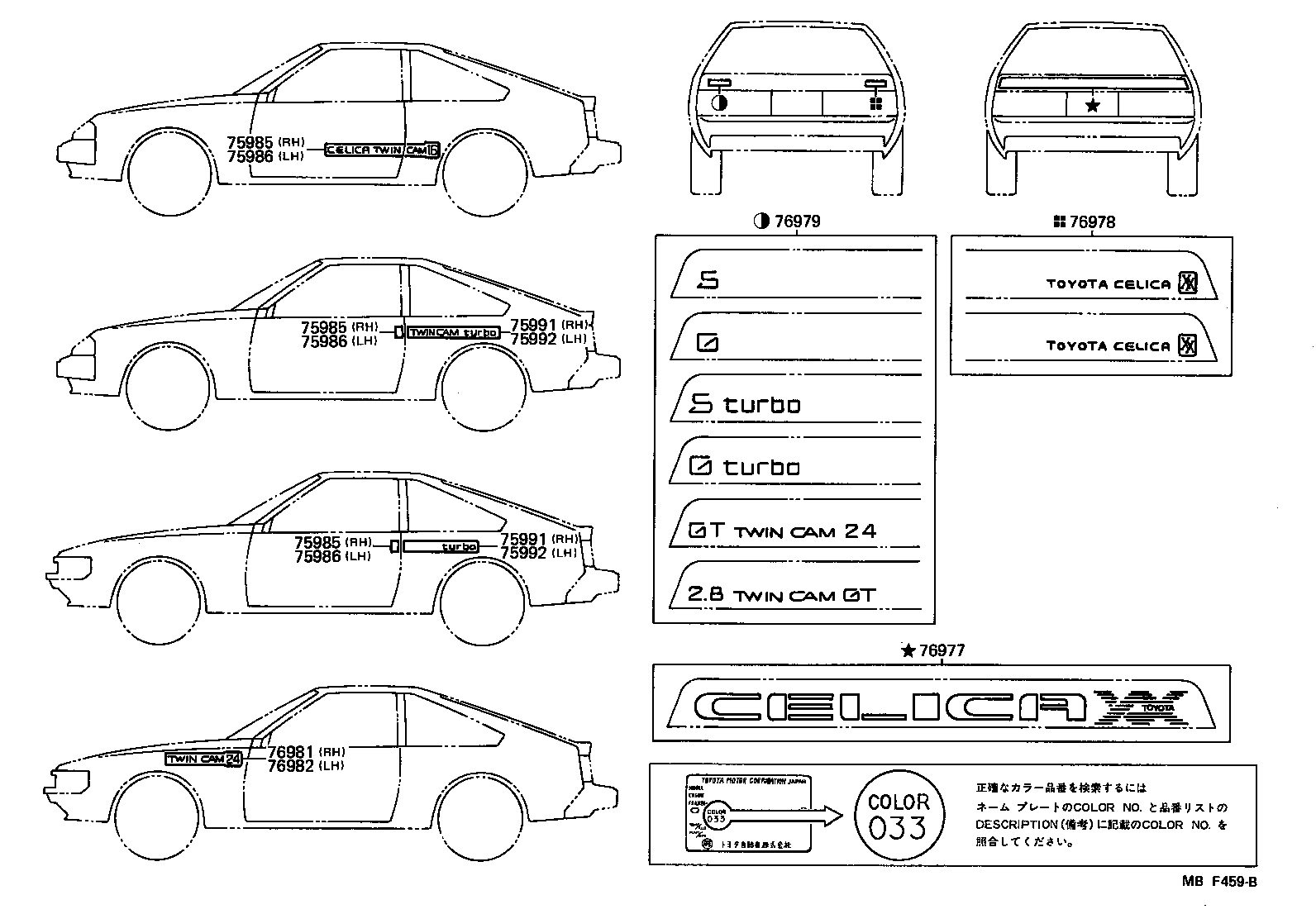

Figure MBC597E MBC597E 1981-07 → 1983-08 Figure MBF459B MBF459B 1983-08 → —

Part groups

PNCDescription
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
76977 Stripe, Rear Body Back
76978 Stripe, Rear Body Back, RH
76979 Stripe, Rear Body Back, LH
76981 Stripe, Front Fender Mark, RH
76982 Stripe, Front Fender Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
