Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

21 part groups · 6 illustrations

Illustrations

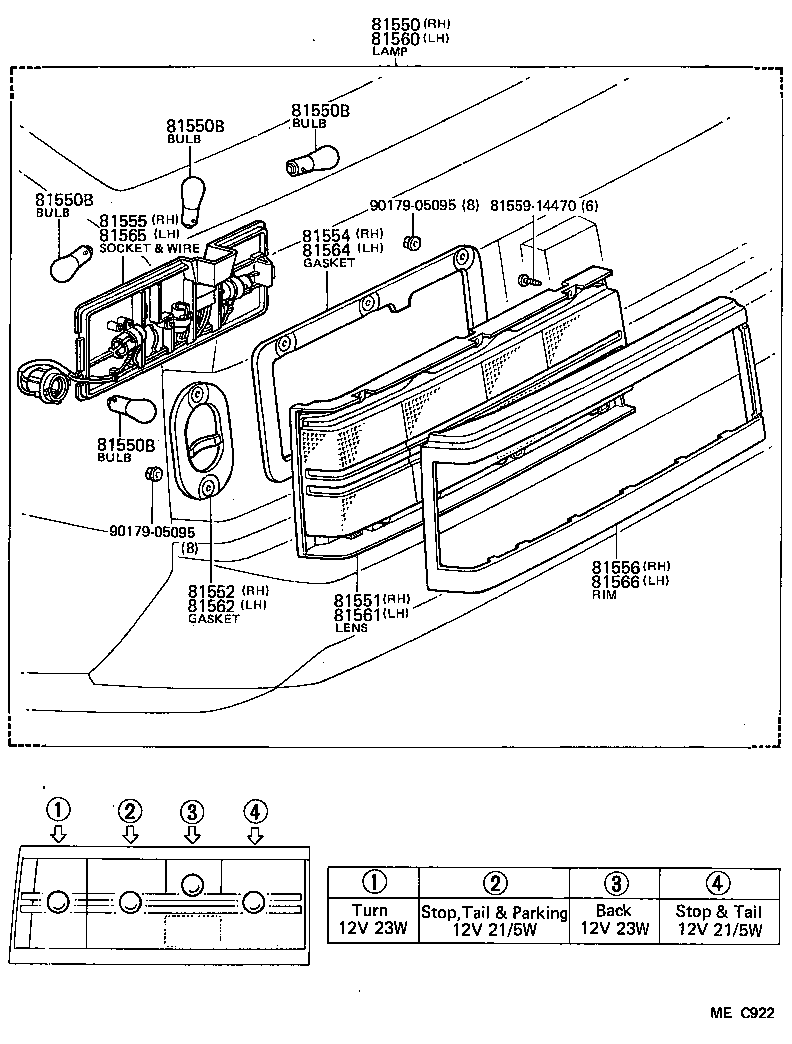

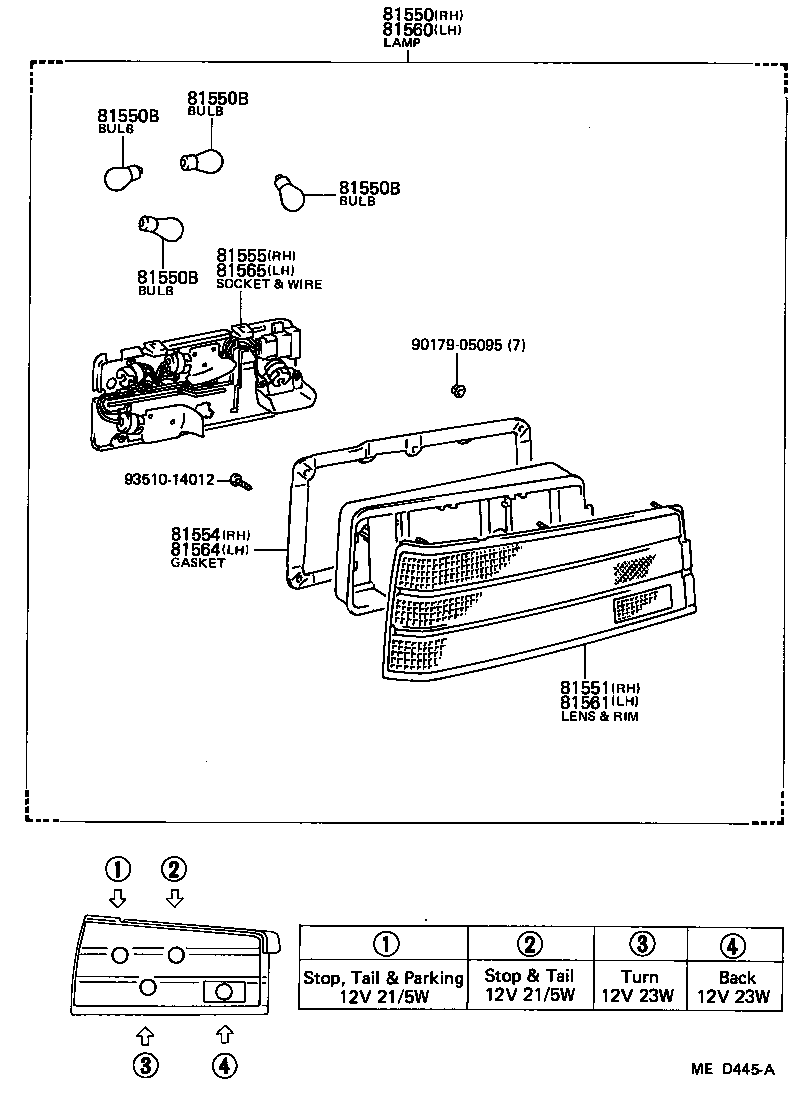

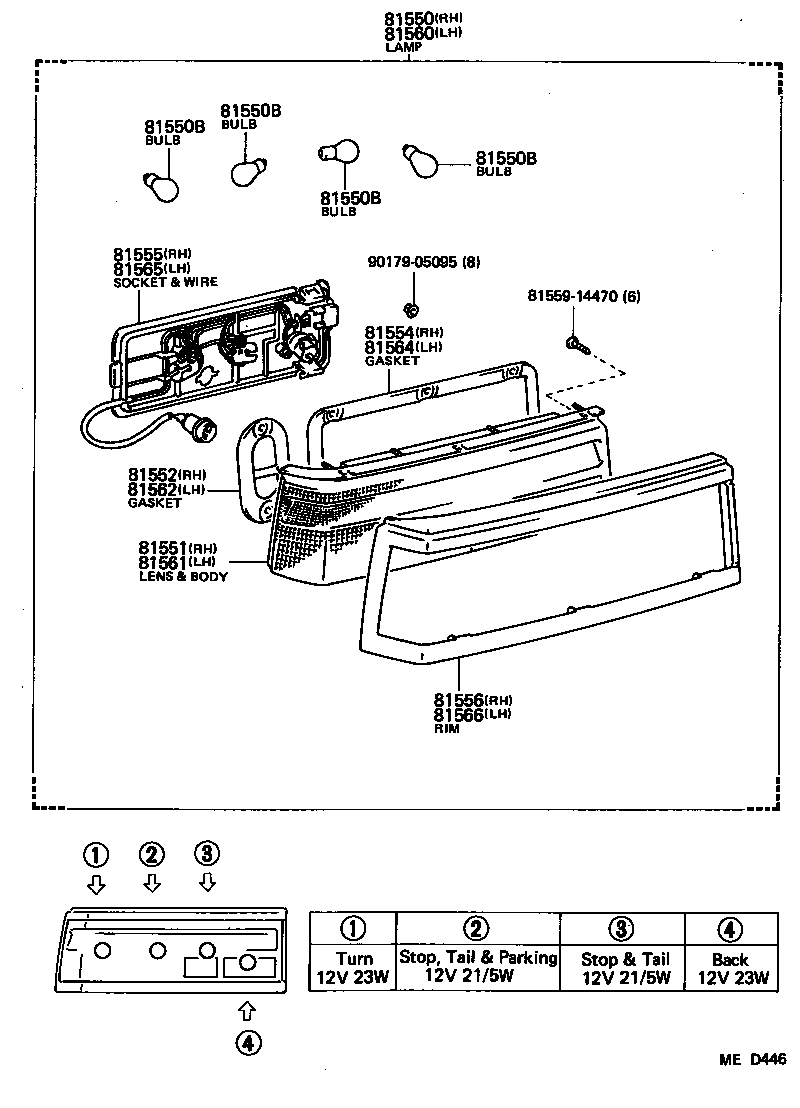

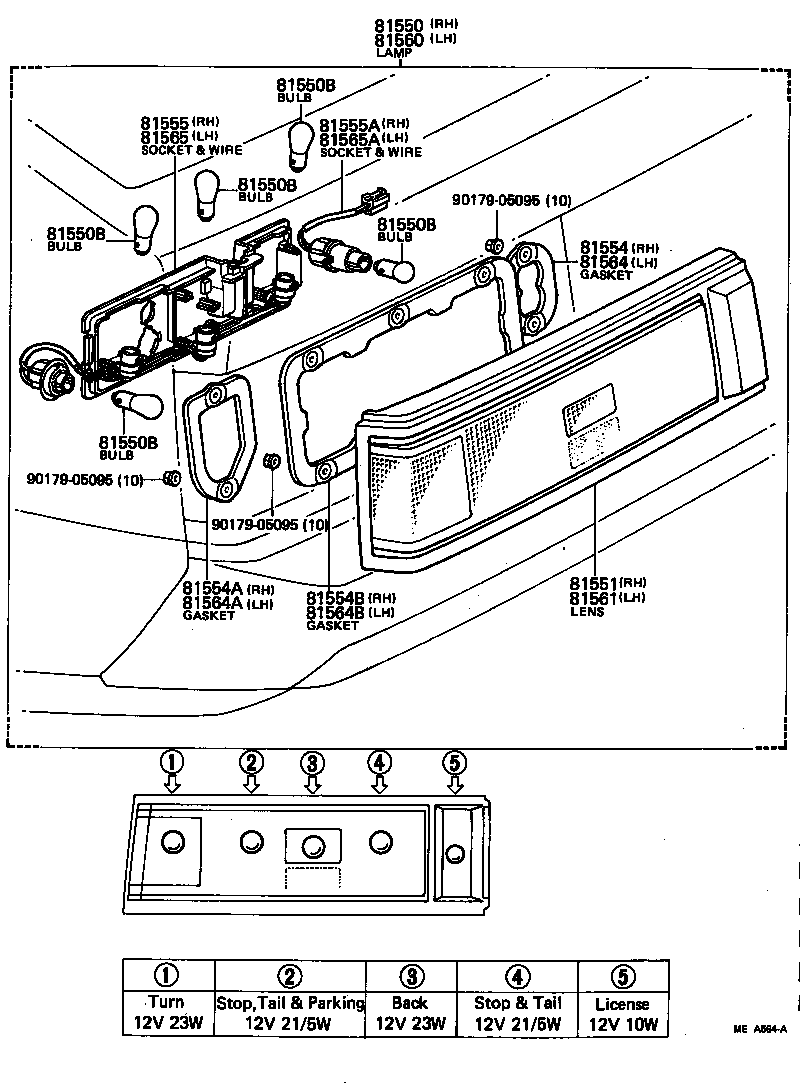

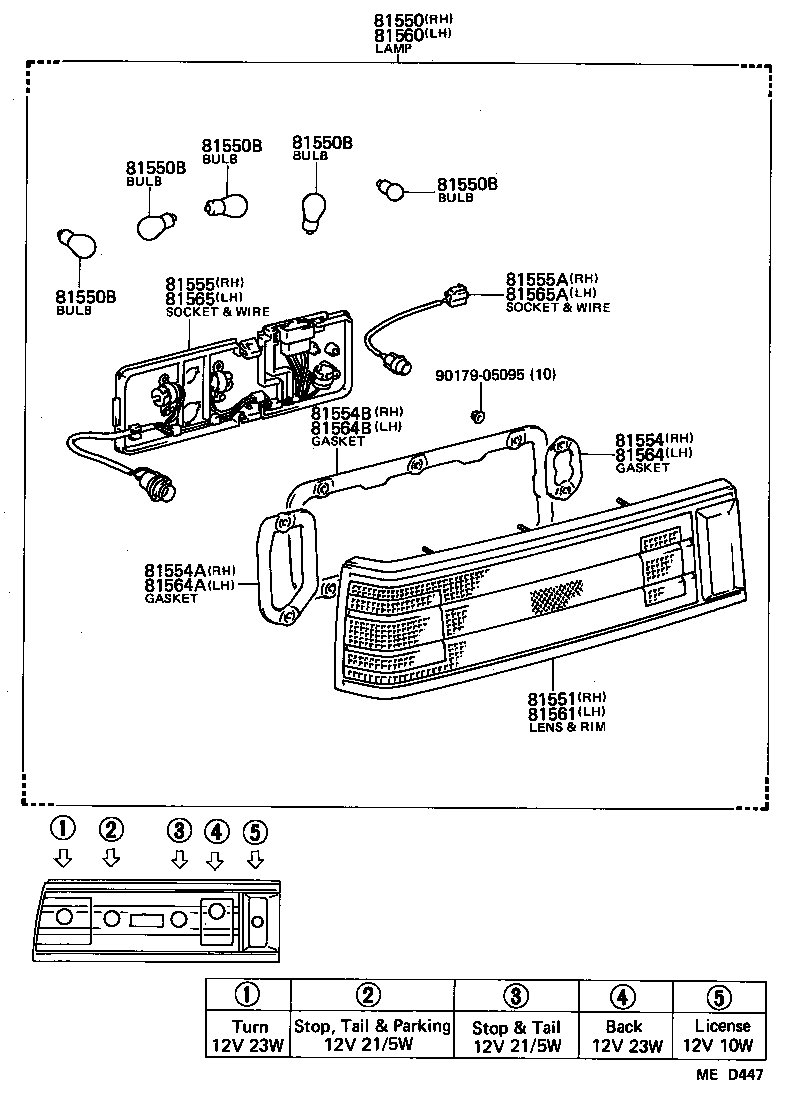

Figure MEA562A MEA562A 1981-07 → 1983-08 Figure MED445A MED445A 1983-08 → 1985-07 Figure MEC922 MEC922 1981-07 → 1983-08 Figure MED446 MED446 1983-08 → 1985-07 Figure MEA564A MEA564A 1981-07 → 1983-08 Figure MED447 MED447 1983-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81554A Gasket, Rear Combination Lamp Body, NO.1 RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81564A Gasket, Rear Combination Lamp Body, NO.1 LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
