Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

28 part groups · 3 illustrations

Illustrations

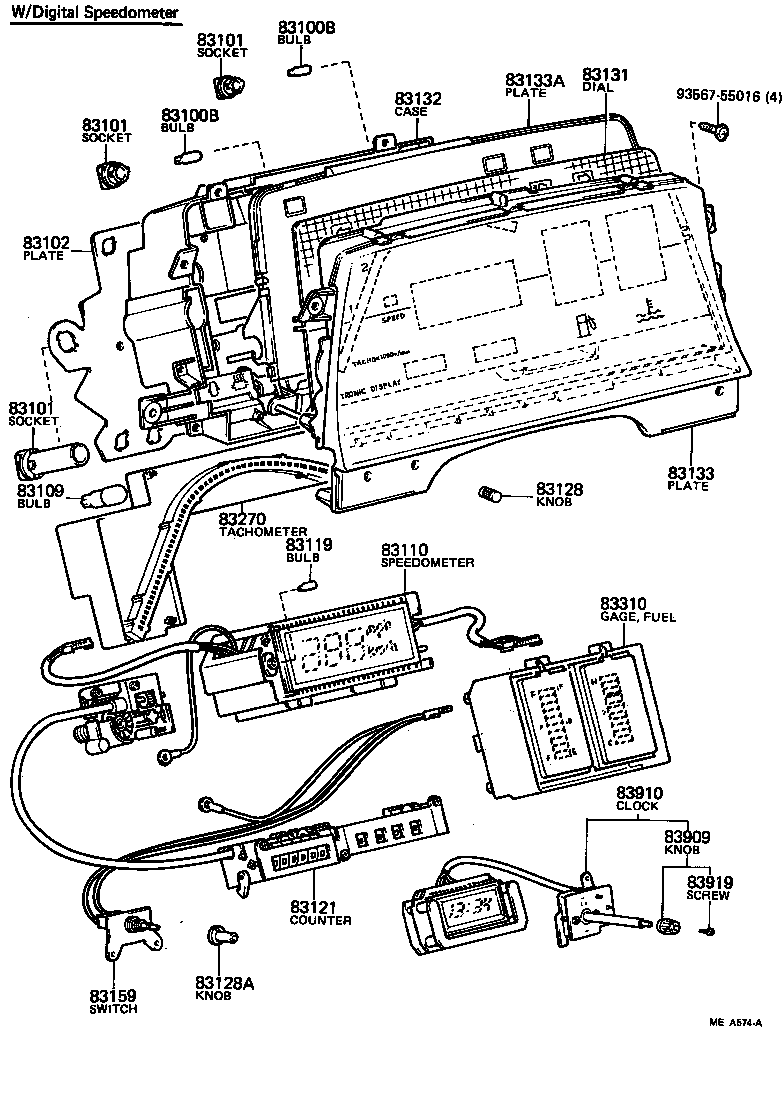

Figure MEA573F MEA573F 1981-07 → — Figure MEA574A MEA574A 1981-07 → — Figure MEA575B MEA575B 1981-07 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83119 Bulb, Combination Meter, NO.3
83121 Counter, Total
83128 Knob, Trip Counter
83128A Knob, Meter
83131 Dial, Meter, NO.1
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83133A Plate, Combination Meter, NO.2
83159 Switch, Meter, NO.1
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83490 Gage Assy, Air Pressure Receiver
83510 Gage Assy, Oil Pressure Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710D Clamp (FOR SPEEDOMETER CABLE)
83770 Adapter Assy, Speedometer Cable
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
83960 Memorizer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
