Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

15 part groups · 6 illustrations

Illustrations

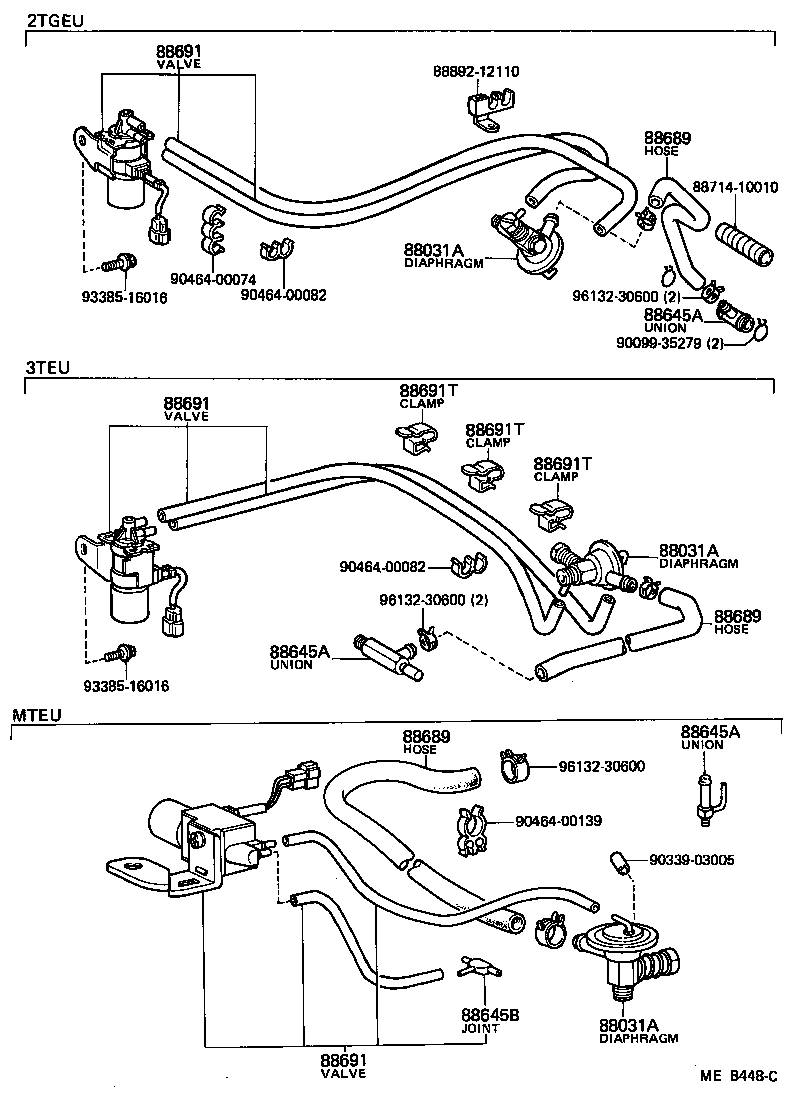

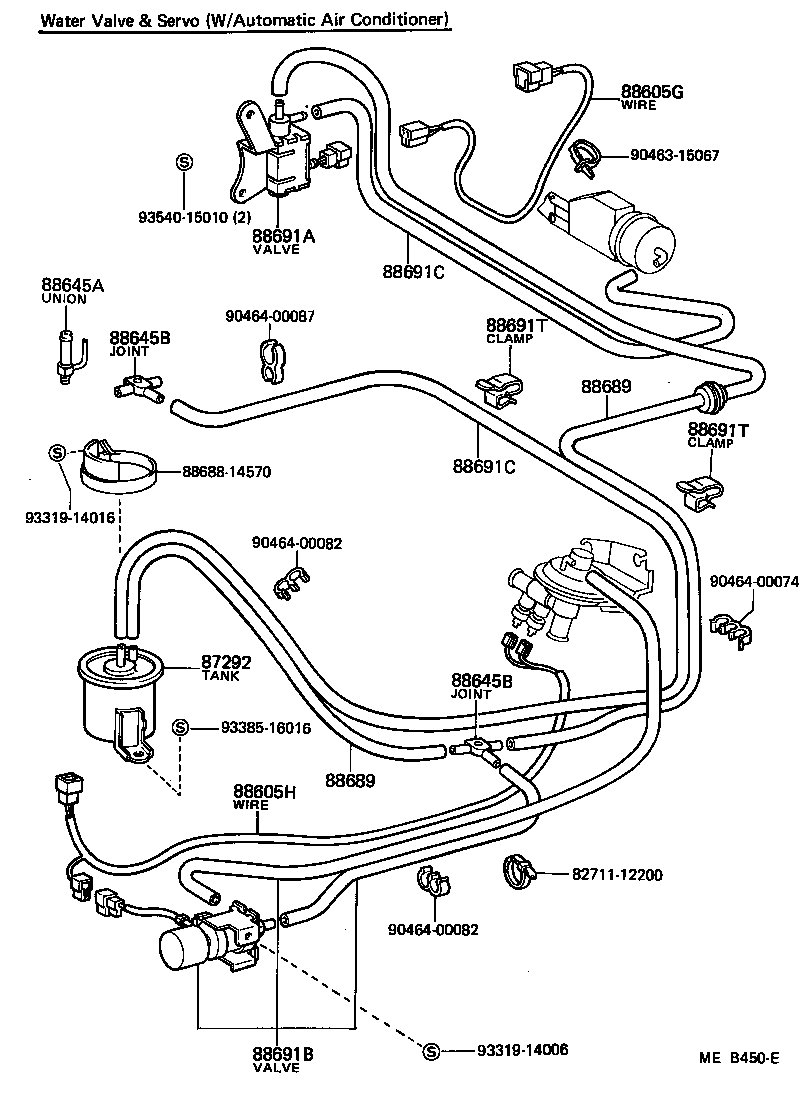

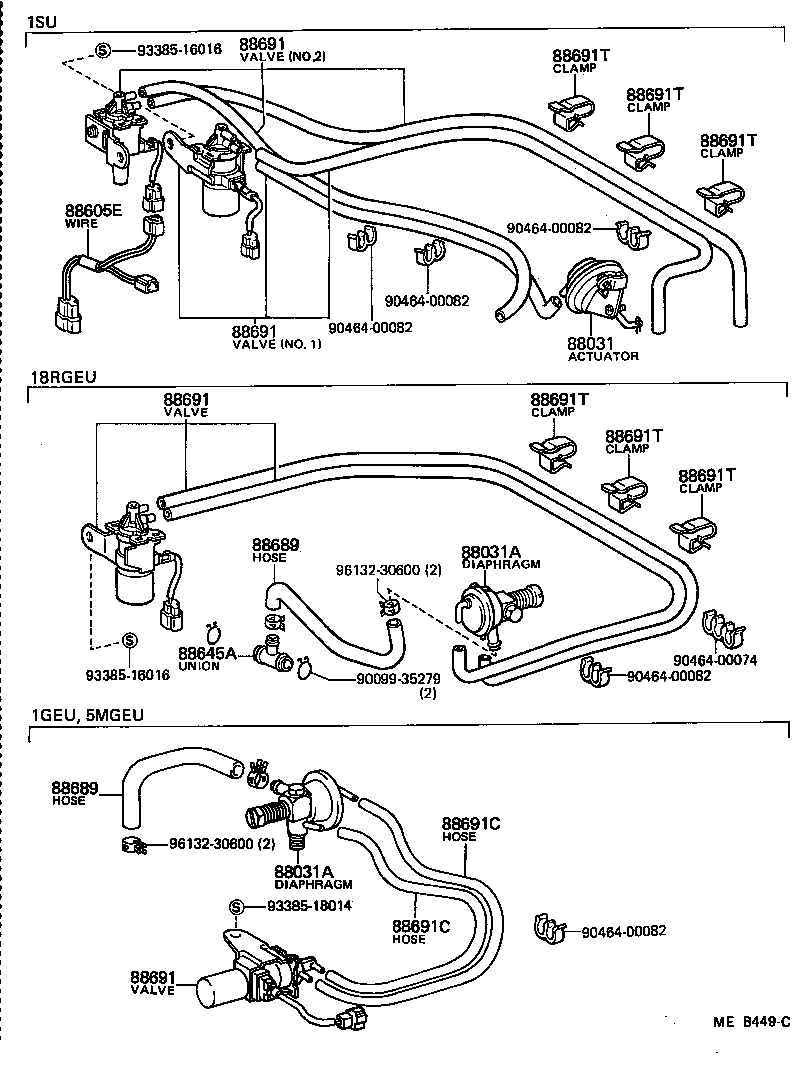

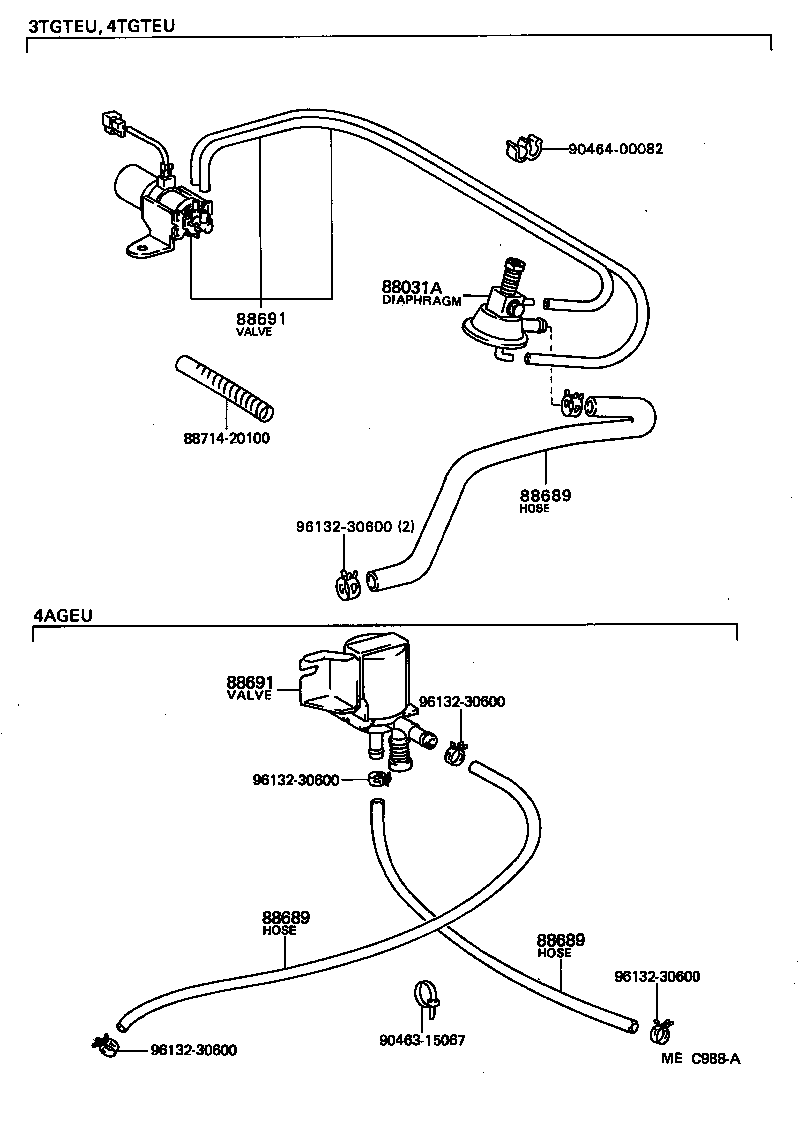

Figure MEB498 MEB498 1982-10 → 1985-07 Figure MEB448C MEB448C 1981-07 → 1983-08 Figure MEB449C MEB449C 1981-07 → — Figure MEC988A MEC988A 1982-10 → 1985-07 Figure MEC988A MEC988A 1983-08 → 1985-07 Figure MEB450E MEB450E 1981-07 → —

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605E Wire, Air Conditioner, NO.1
88605G Wire, Air Conditioner, NO.2
88605H Wire, Air Conditioner, NO.3
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691S Clamp (FOR IDLE UP DIVICE), NO.1
88691T Clamp (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
