Heating & Air Conditioning - Cooler Piping

25 part groups · 8 illustrations

Illustrations

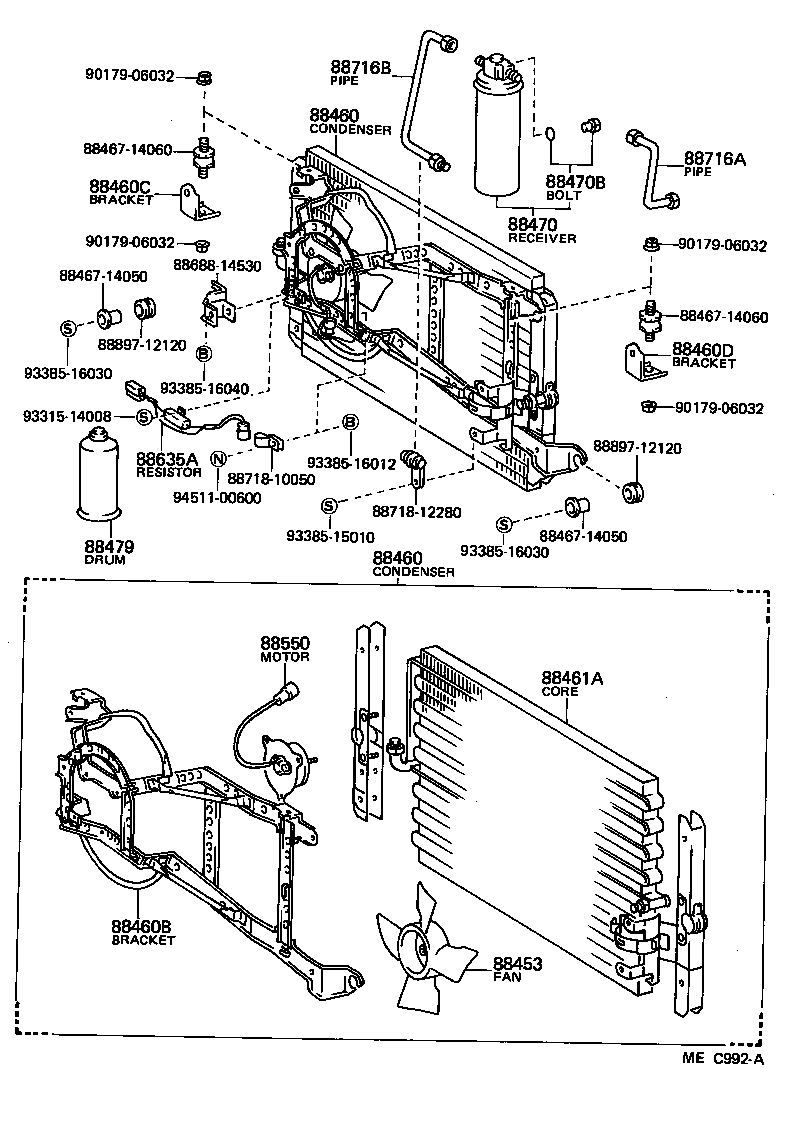

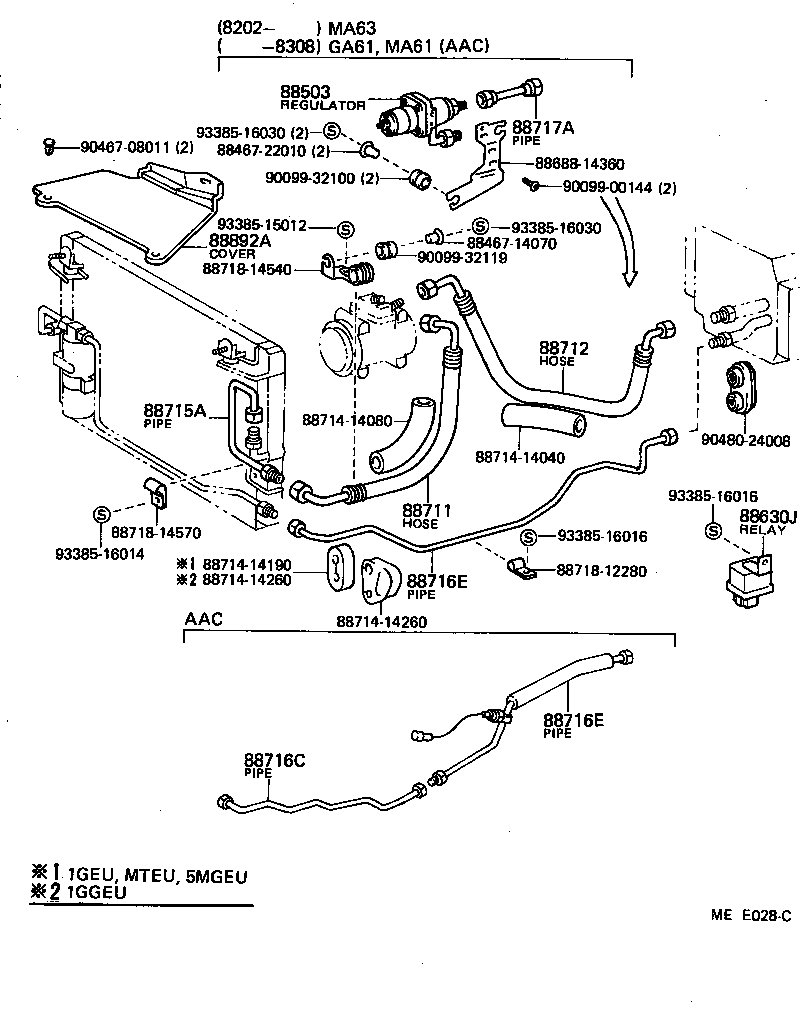

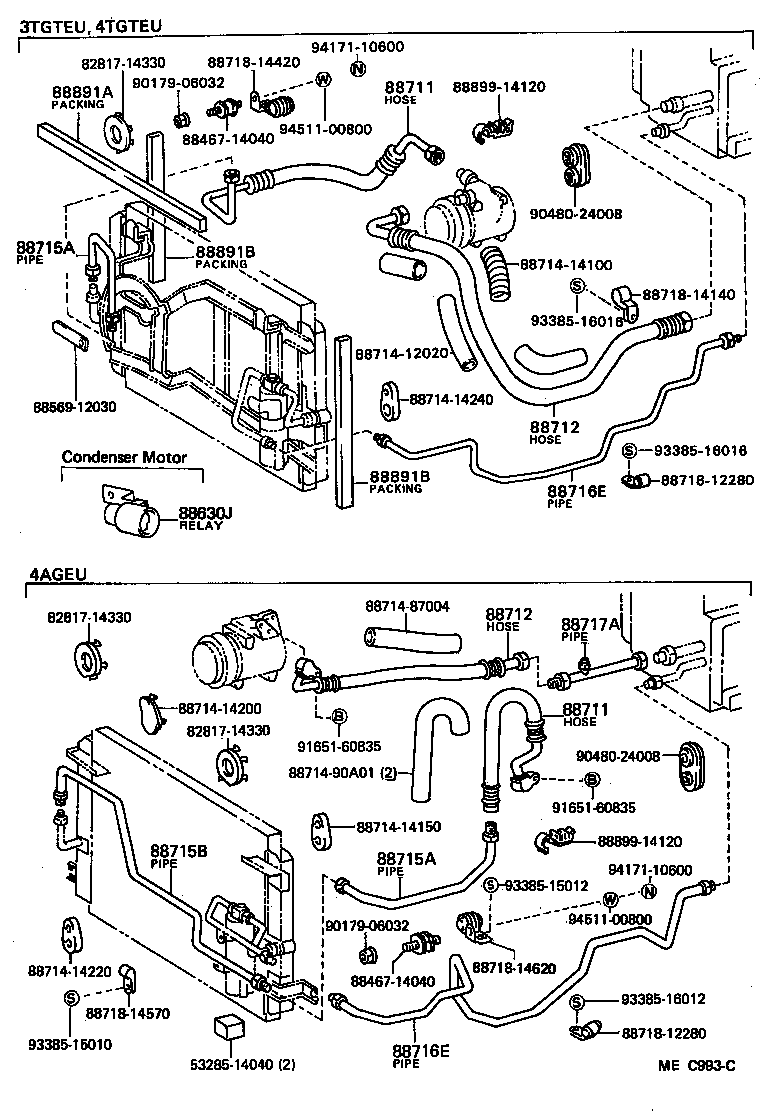

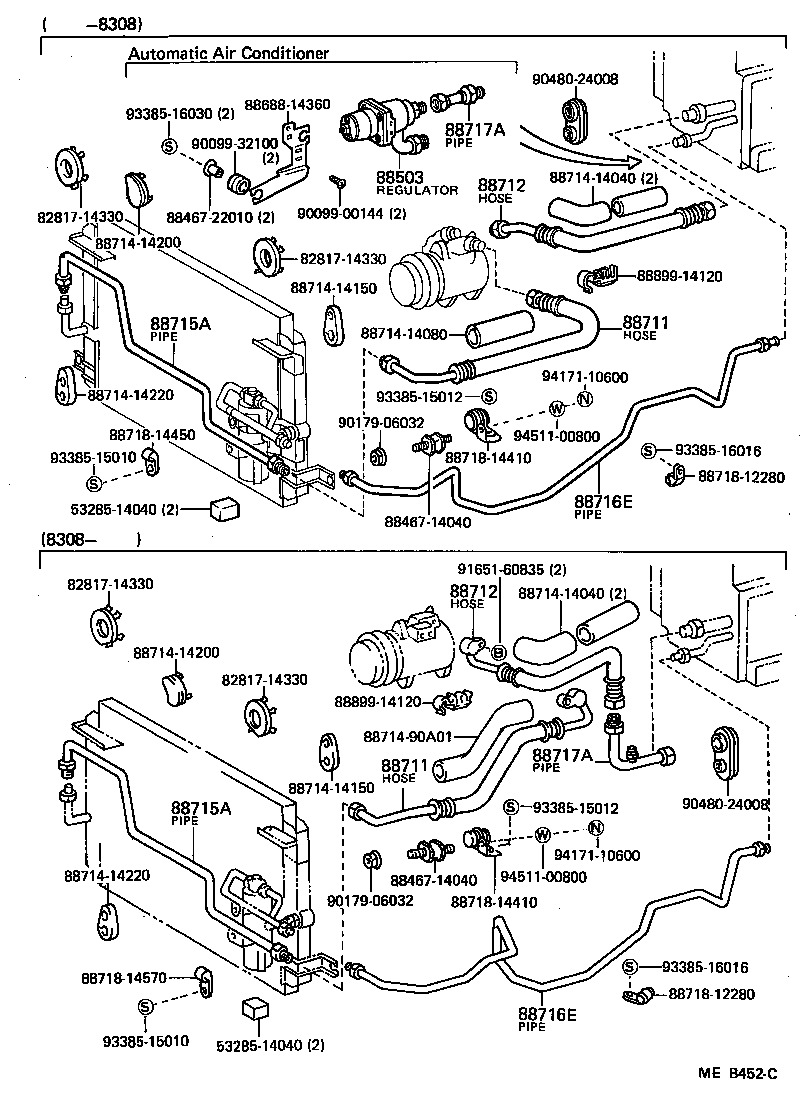

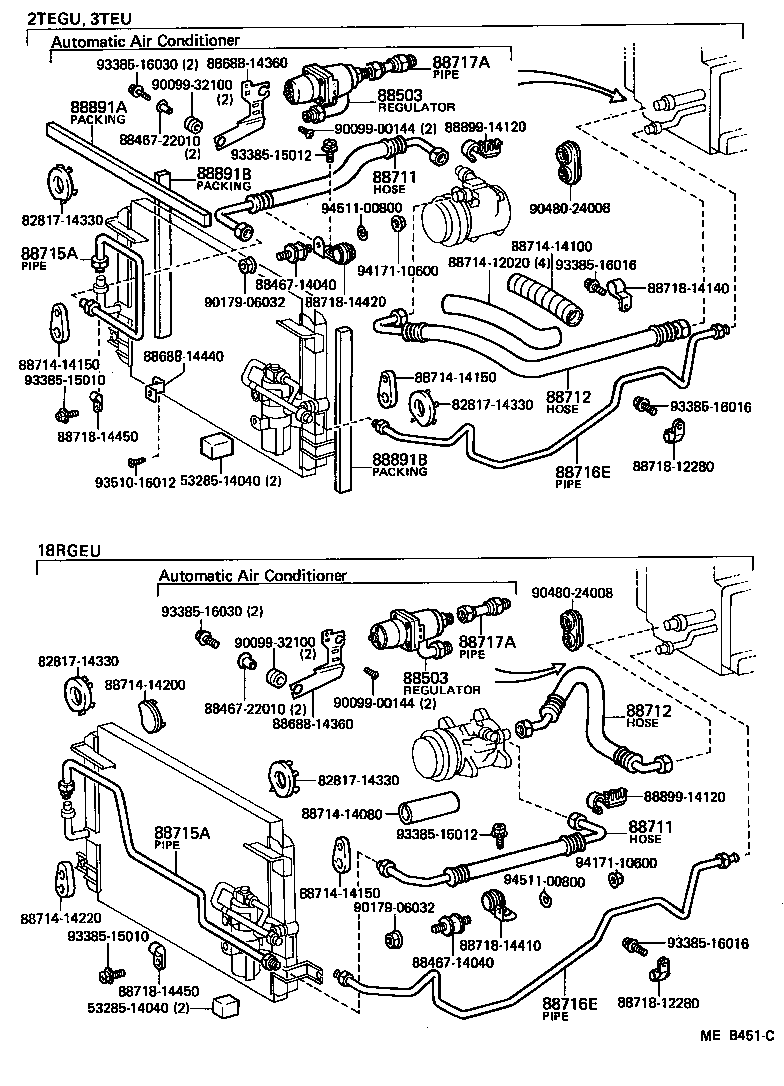

Figure MEB444E MEB444E 1981-07 → — Figure MEB444E MEB444E 1983-08 → 1985-07 Figure MEC992A MEC992A 1982-10 → 1985-07 Figure MEB451C MEB451C 1981-07 → 1983-08 Figure MEB452C MEB452C 1981-07 → 1985-07 Figure MEC993C MEC993C 1982-10 → 1985-07 Figure MEC993C MEC993C 1983-08 → 1985-07 Figure MEE028C MEE028C 1981-07 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88630J Relay Assy (FOR CONDENSER MOTOR)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88892A Bracket, Cooler Evaporator Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
