Toyota Celica

1981-07 → 1985-12 · chassis AA63,TA6#,SA60,RA63,GA61,MA6# · catalogue 252130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 9 illustrations

Illustrations

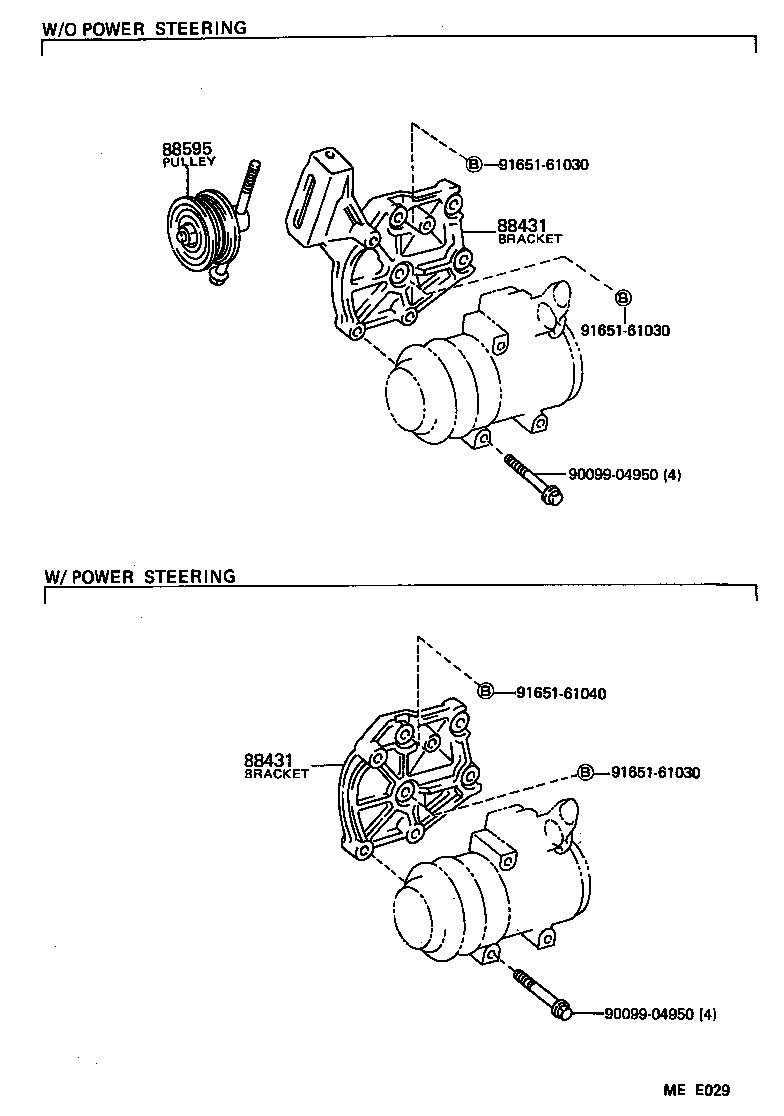

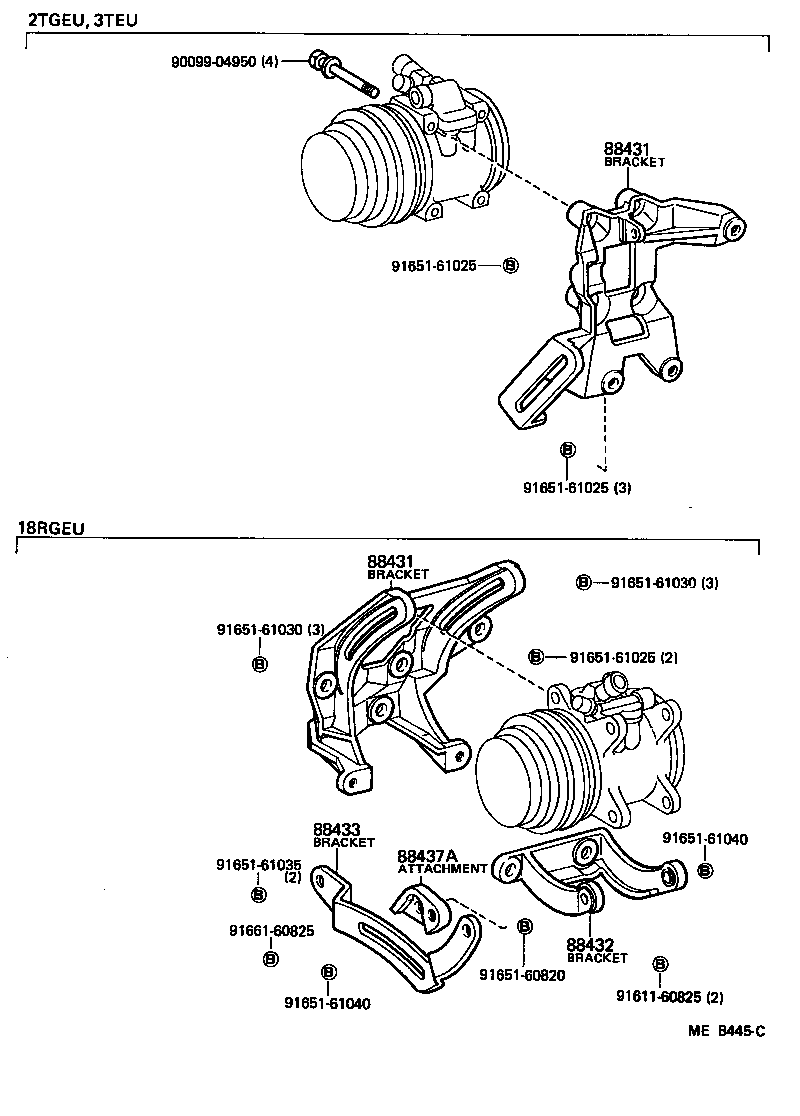

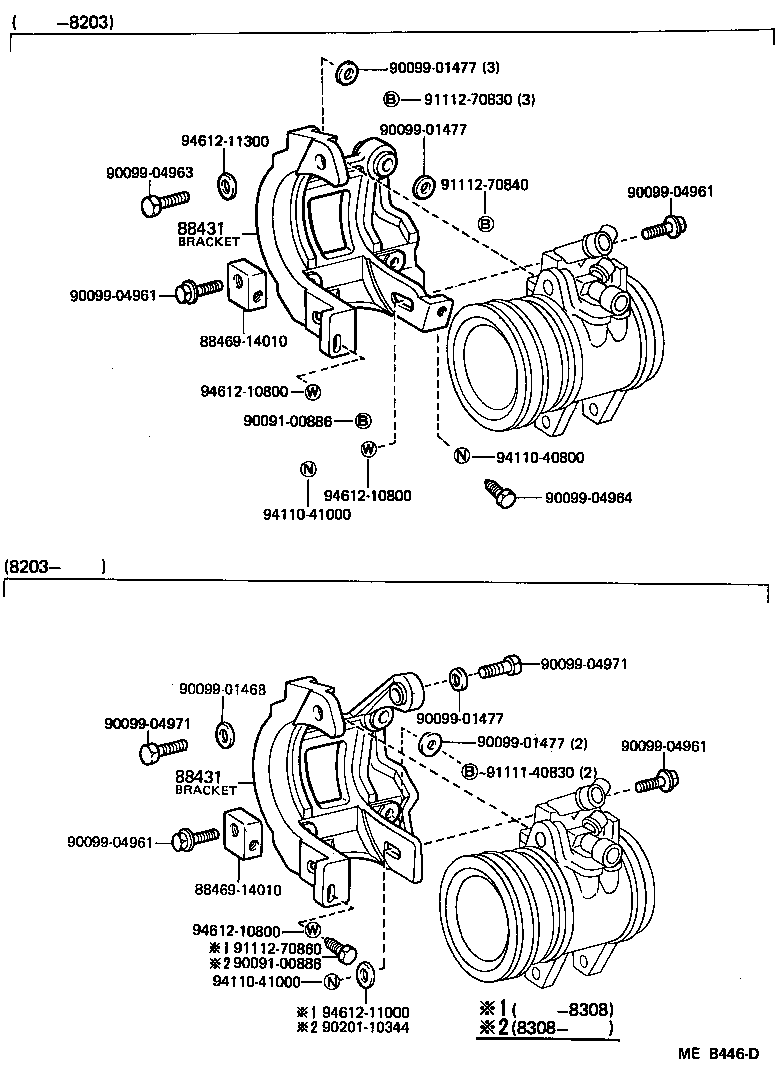

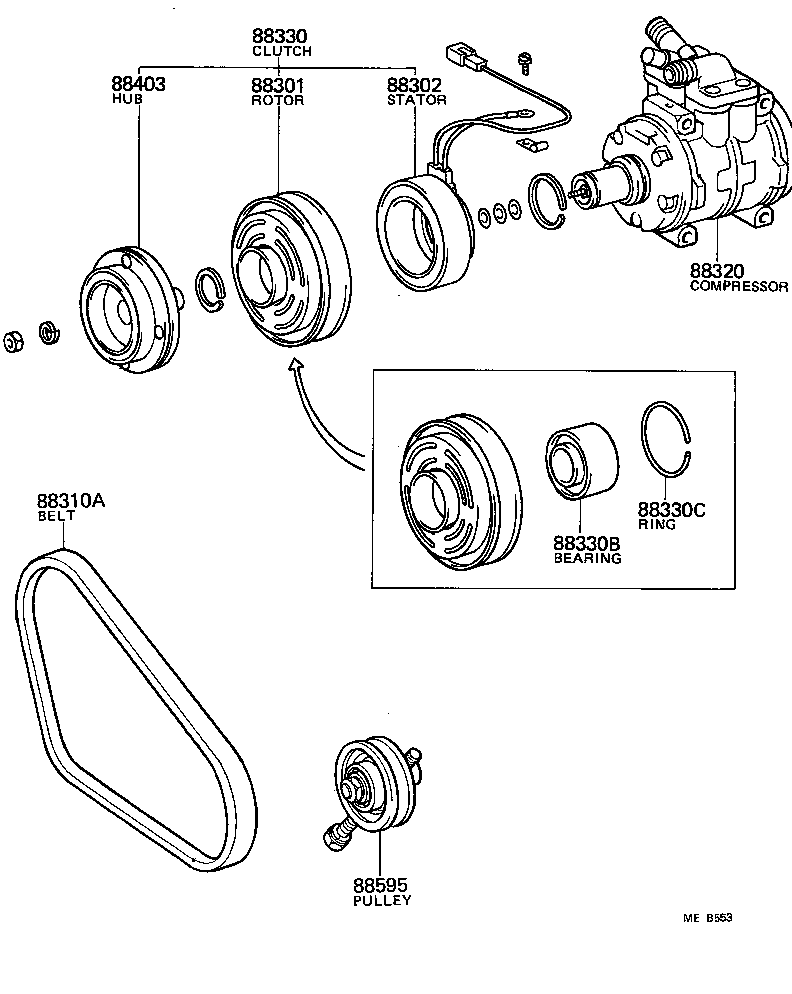

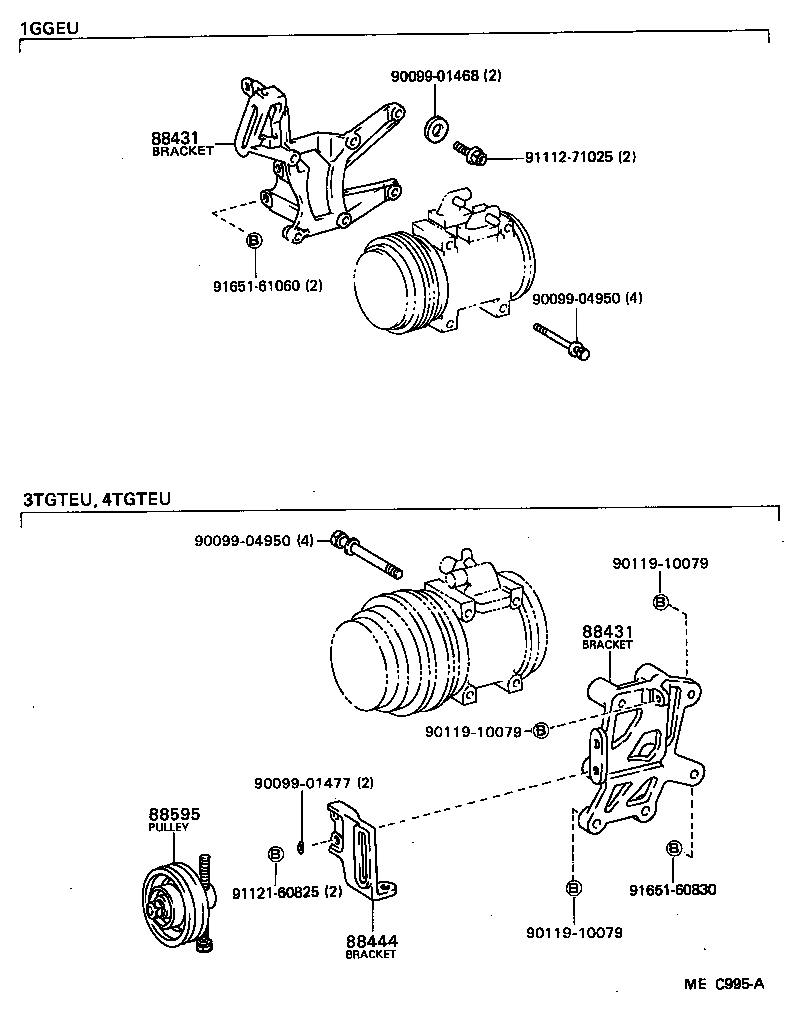

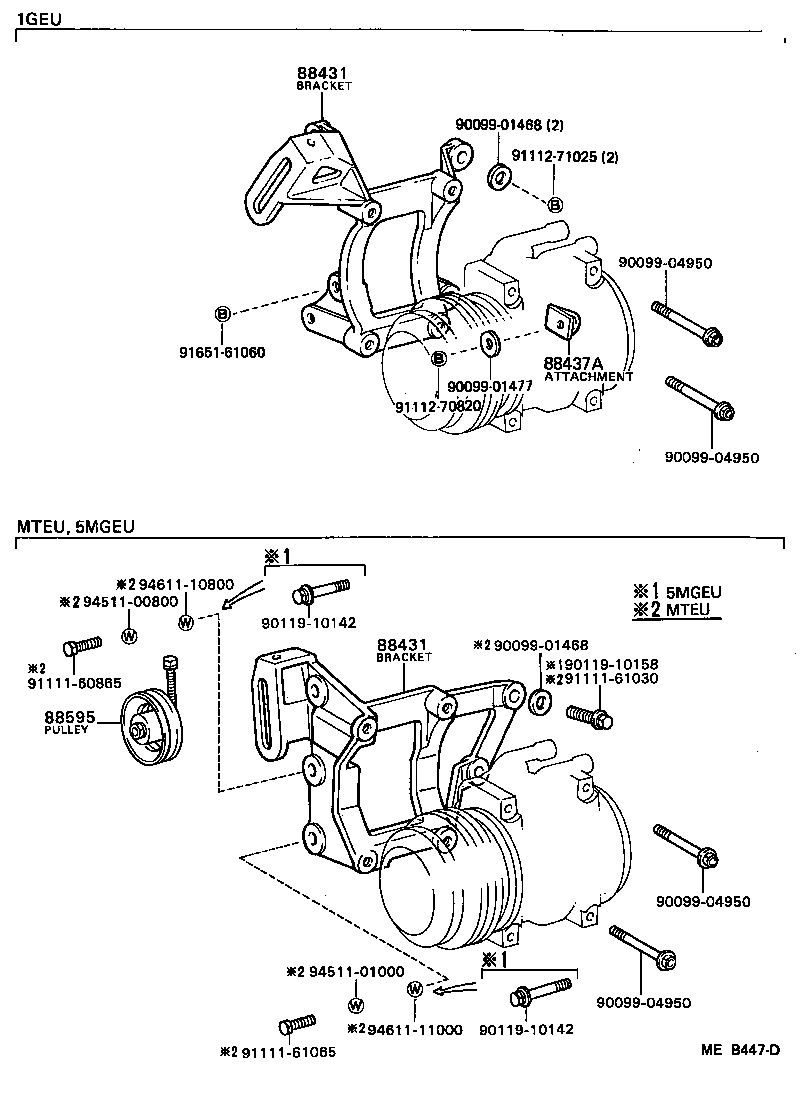

Figure MEC364 MEC364 1981-07 → — Figure MEC363A MEC363A 1981-07 → — Figure MEB553 MEB553 1981-07 → — Figure MEB445C MEB445C 1981-07 → 1983-08 Figure MEB446D MEB446D 1981-07 → 1985-07 Figure MEB447D MEB447D 1981-07 → — Figure MEC995A MEC995A 1982-08 → — Figure MEC995A MEC995A 1982-10 → 1985-07 Figure MEE029 MEE029 1983-08 → 1985-07

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88437A Attachment, Compressor
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
