Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 6 illustrations

Illustrations

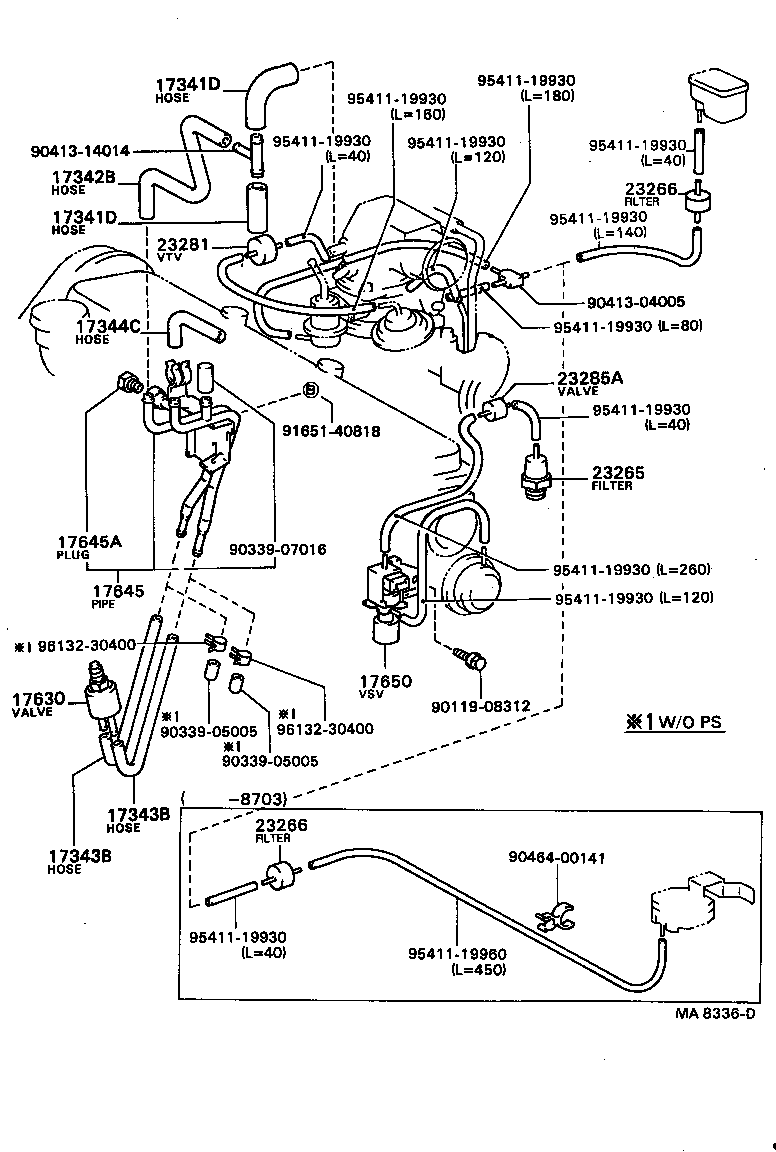

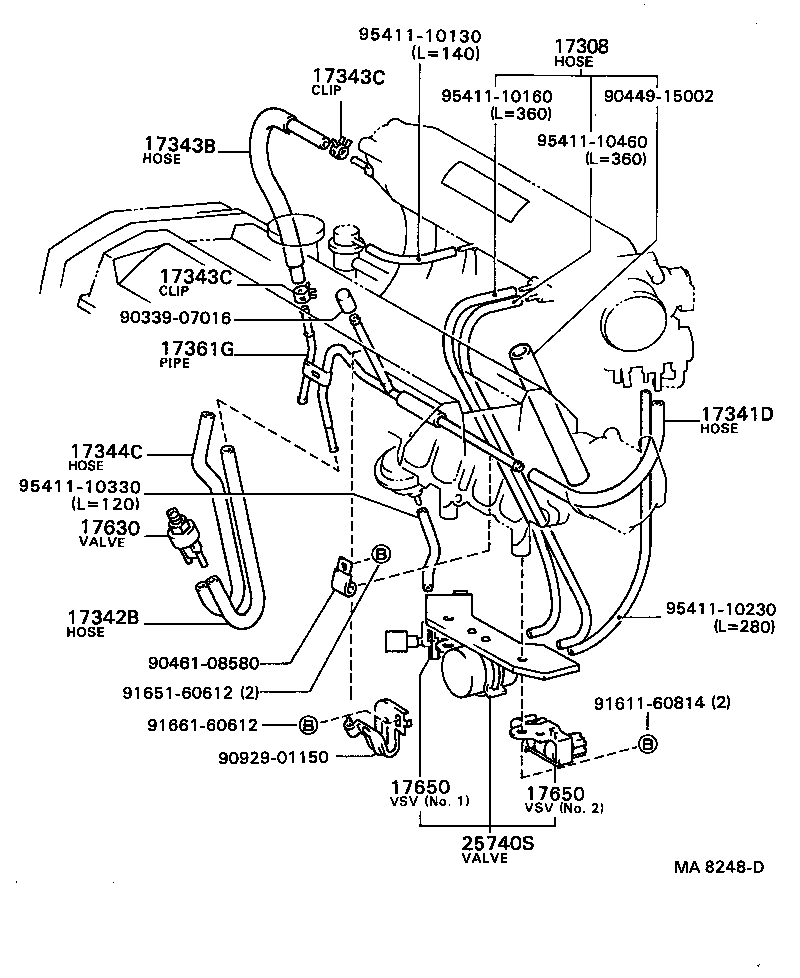

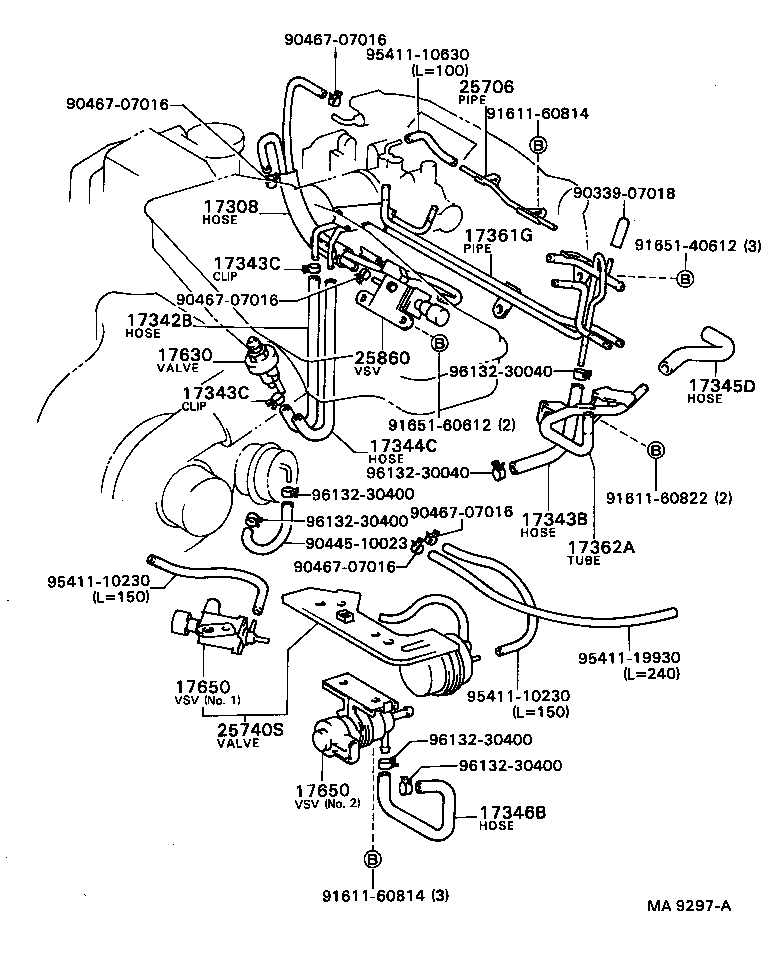

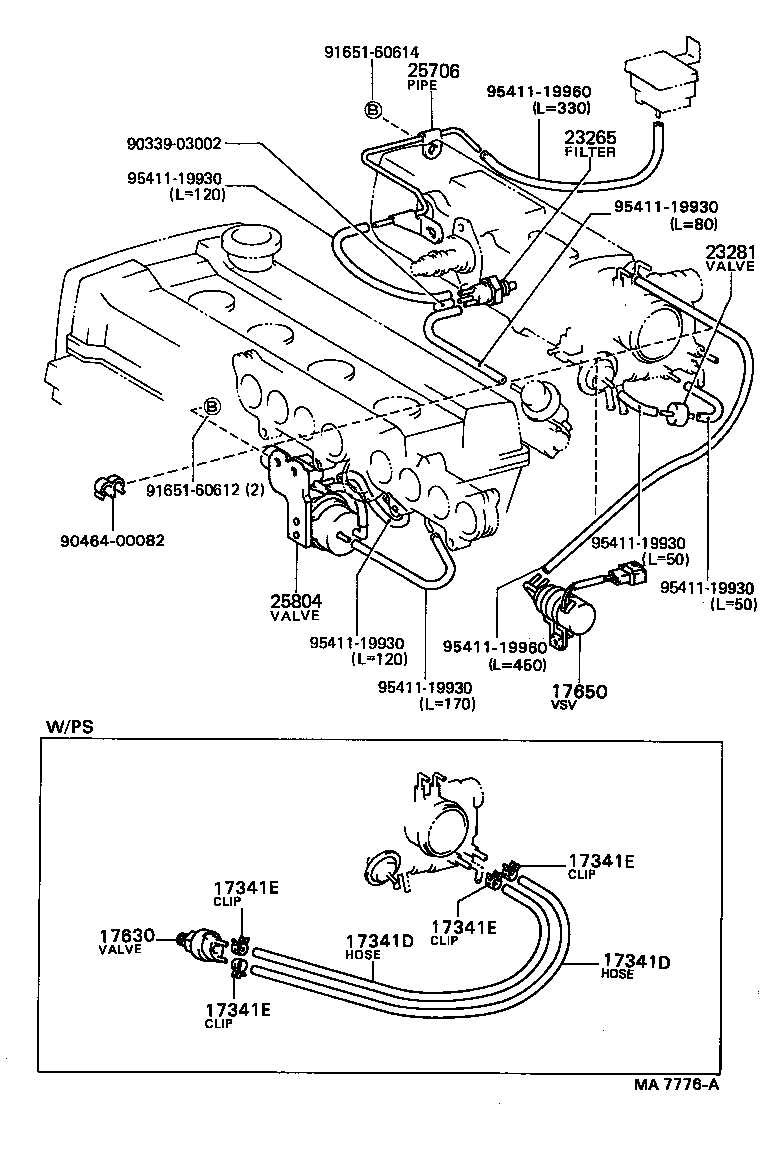

Figure MA9503 MA9503 1985-08 → — Figure MA7776A MA7776A 1985-08 → — Figure MA9503 MA9503 1985-08 → — Figure MA8336D MA8336D 1985-08 → — Figure MA8248D MA8248D 1985-08 → — Figure MA9297A MA9297A 1986-10 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17645A Plug(FOR IDLE UP PIPE)
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
