Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

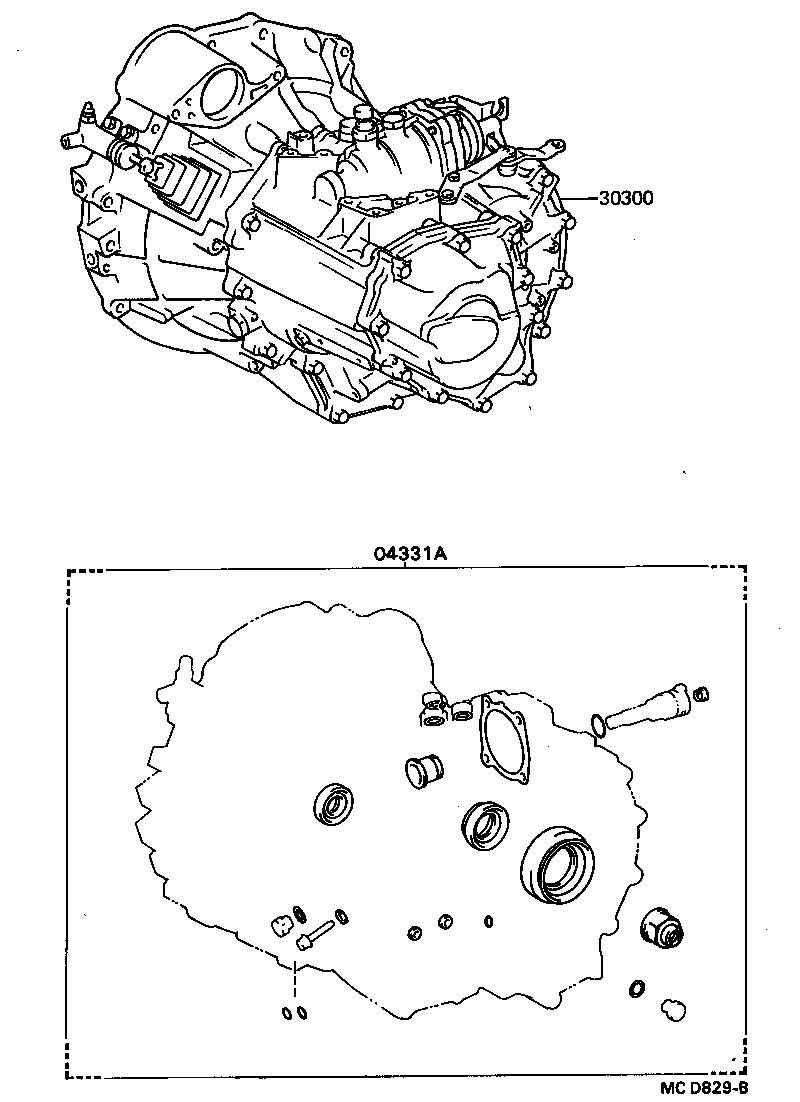

Figure MC9629B MC9629B 1985-08 → — Figure MC8337C MC8337C 1985-08 → — Figure MCD829B MCD829B 1986-10 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
