Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 2 illustrations

Illustrations

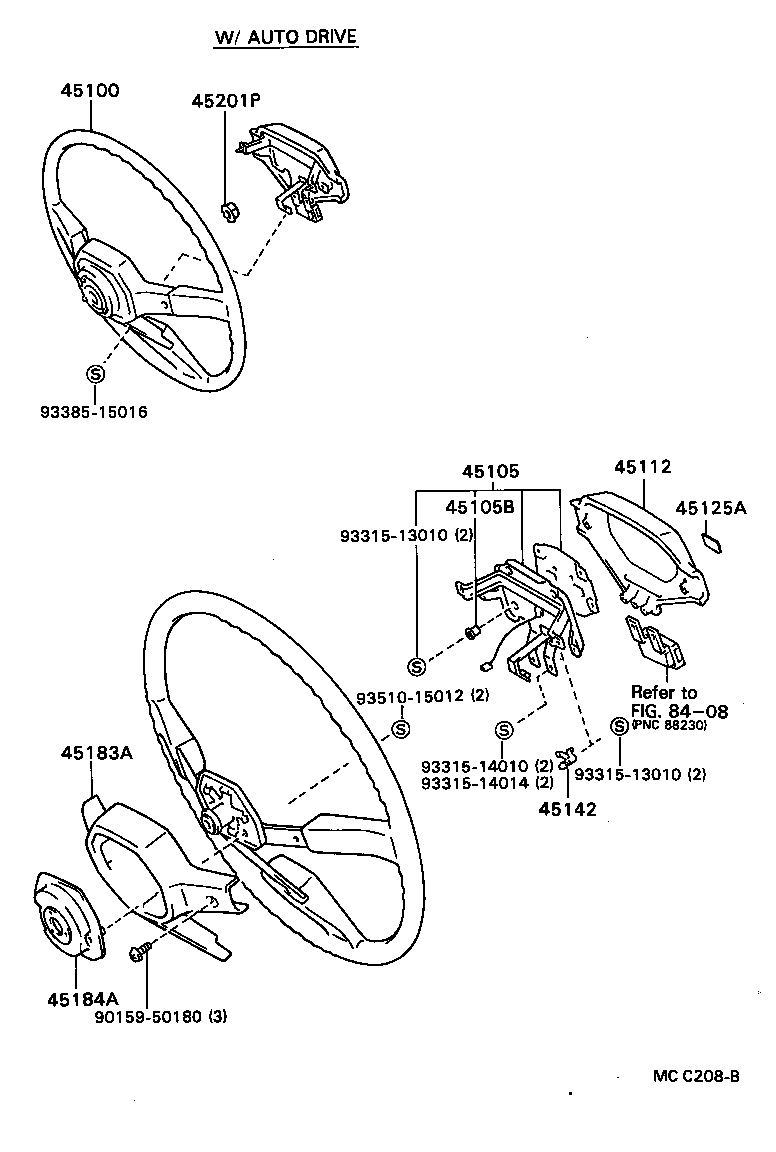

Figure MCC207A MCC207A 1985-08 → — Figure MCC208B MCC208B 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125A Mark, Horn
45142 Seat, Horn Button Contact, NO.1
45183A Cover, Steering Wheel Boss, Lower NO.1
45184A Cover, Steering Wheel Boss, Lower NO.2
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
