Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan
Discontinued model
Data version 1987-12

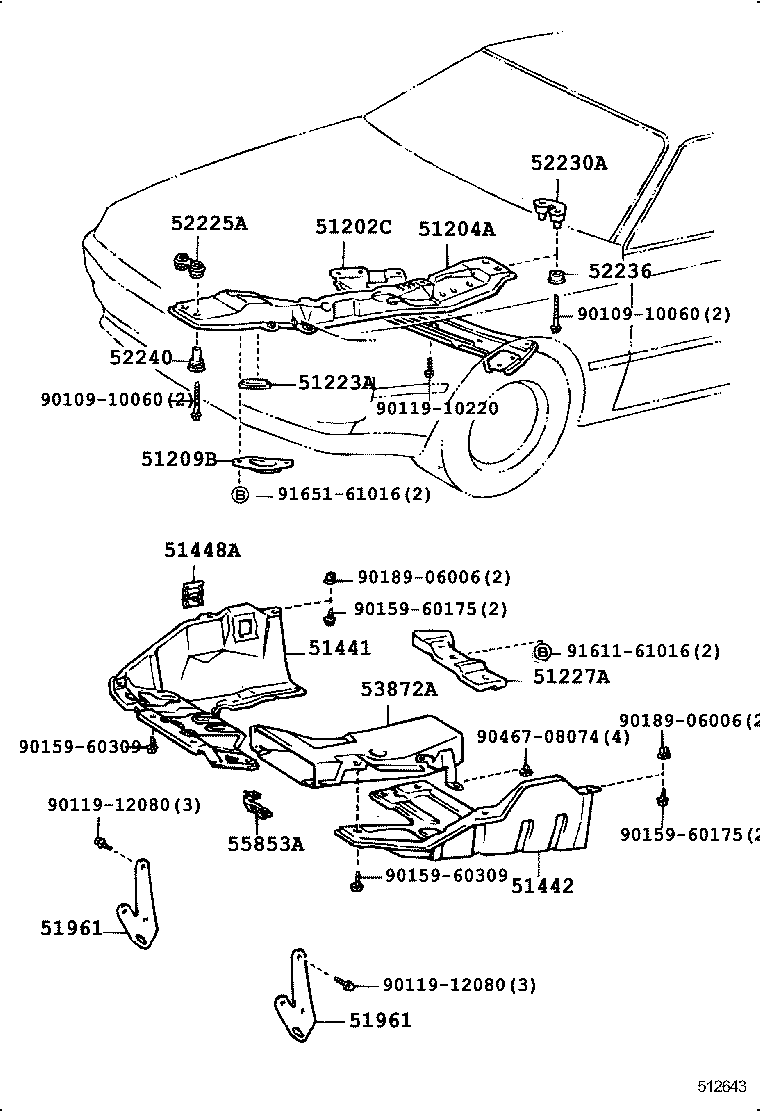

Suspension Crossmember & Under Cover
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51202C | Crossmember Sub-assy, Front Suspension, Lower |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51206A | Member Sub-assy, Rear Suspension |
| 51207A | Member Sub-assy, Differential Support |
| 51209B | Protector Sub-assy, Center Member, Front |
| 51223A | Cover, Engine Mounting Hole |
| 51227A | Weight, Front Suspension Member Damper, RH |
| 51277A | Weight, Differential Support Member |
| 51291A | Member, Frame Rear Cross |
| 51441 | Cover, Engine Under, NO.1 |
| 51442 | Cover, Engine Under, NO.2 |
| 51442A | Cover, Engine Under, Front NO.3 |
| 51448A | Cover, Engine Side Under, RH |
| 51961 | Hook, NO.1 |
| 52225A | Cushion, Center Member Mounting, Front Upper |
| 52230A | Cushion Assy, Center Member Mounting, Rear Upper |
| 52236 | Cushion, Center Member Mounting, Rear Lower |
| 52240 | Cushion Assy, Center Member Mounting, Front Lower |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52277A | Retainer, Rear Suspension Member Lower Stopper, RH |
| 52278A | Retainer, Rear Suspension Menber Lower Stopper, LH |
| 52281 | Cushion, Differential Support Member |
| 52282 | Stopper, Differential Support Member, Upper |
| 52283 | Stopper, Differential Support Member, Lower |
| 52285 | Bolt, Differential Support Member Mounting, NO.1 |
| 52286 | Bolt, Differential Support Member Mounting, NO.2 |
| 52291C | Cushion, Differential Support Member, Rear |
| 53872A | Duct, Air, Lower |
| 55853A | Retainer, Air Duct, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
