Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

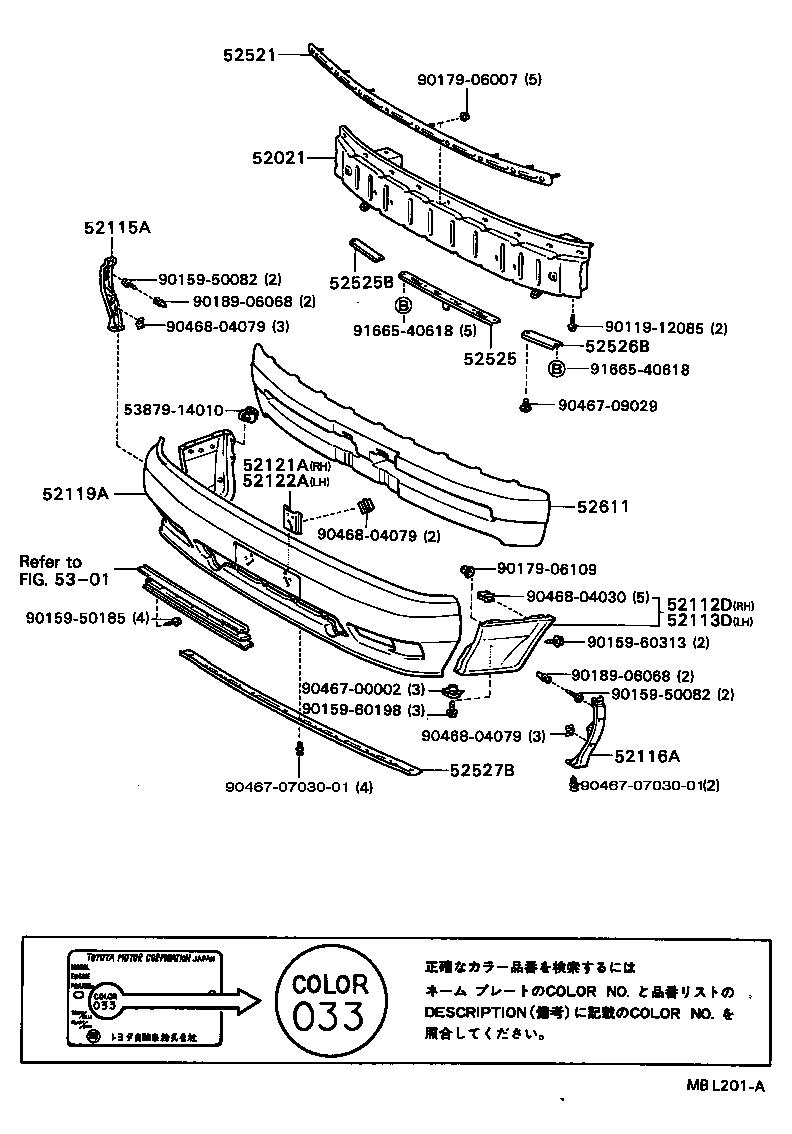

Figure MBJ384B MBJ384B 1985-08 → — Figure MBL201A MBL201A 1986-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52122A Bracket, Front License Plate Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52527B Retainer, Front Bumper, Lower NO.2
52611 Absorber, Front Bumper Energy
53112A Grille, Radiator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
