Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan
Discontinued model
Data version 1987-12

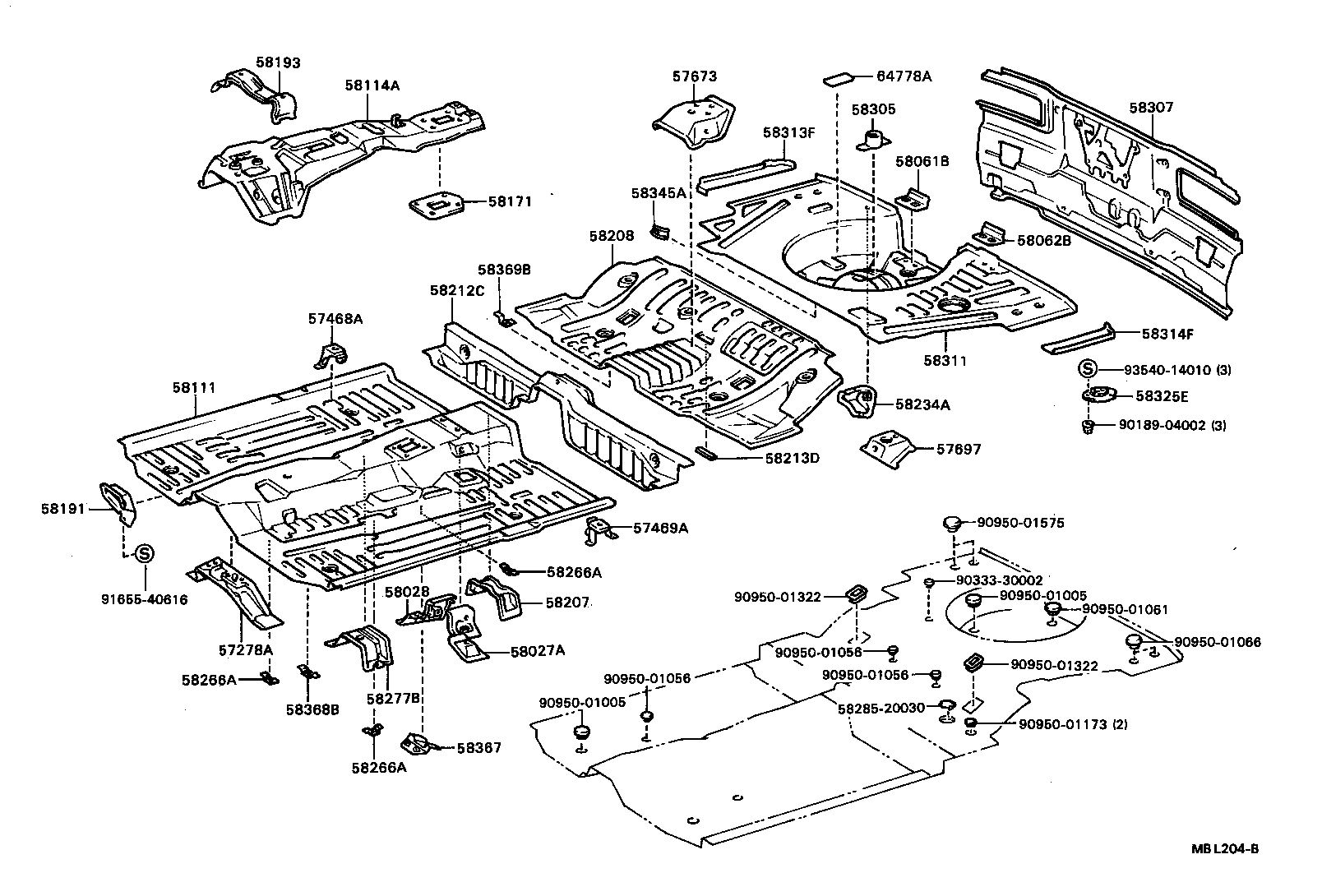

Floor Pan & Lower Back Panel
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57278A | Bracket, Catalytic Converter Support |
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57686A | Bracket, Fuel Tank Mounting, Rear RH |
| 57697 | Retainer, Rear Seat Cushion |
| 58015 | Reinforcement, Belt Anchor TO Floor Pan, RH |
| 58016 | Reinforcement, Belt Anchor TO Floor Pan, LH |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58028 | Reinforcement Sub-assy, Seat Belt Anchor, NO.2 |
| 58061B | Bracket Sub-assy, Fuel Tank Mounting, RH |
| 58062B | Bracket Sub-assy, Fuel Tank Mounting, LH |
| 58111 | Pan, Front Floor |
| 58114A | Reinforcement, Front Floor Panel |
| 58123A | Support, Shift & Select Lever |
| 58131 | Bracket, Front Floor Heat Insulator, NO.1 |
| 58171 | Reinforcement, Parking Brake Base |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58207 | Bracket Sub-assy, Parking Brake Cable, NO.1 |
| 58208 | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58213D | Reinforcement, Center Floor Panel |
| 58234A | Bracket, Exhaust Pipe Mounting, Inner |
| 58266A | Bracket, Fuel Tube Clamp |
| 58277B | Reinforcement, Drive Shaft Center Support |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58345A | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58352A | Bracket, Rear Floor Stay |
| 58367 | Bracket, Fuel Tube Clamp |
| 58368B | Bracket, Fuel Tube, NO.2 |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58397 | Cover, Lower Back, Outer RH |
| 58398 | Cover, Lower Back, Outer LH |
| 64778A | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
