Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 252140 · Japan
Discontinued model
Data version 1987-12
Cruise Control (AUTO DRIVE)

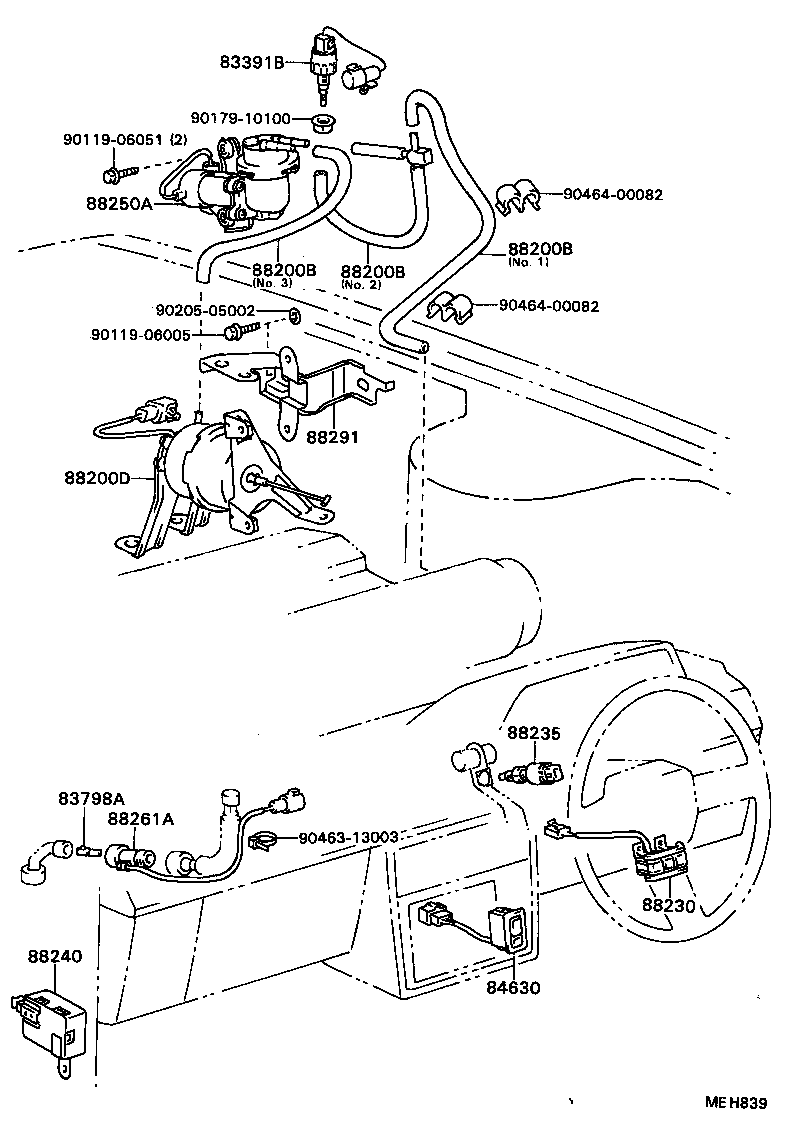

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391B | Switch, Auto Drive Vacuum |
| 83798A | Key, Speedometer Cable Adapter |
| 84630 | Switch Assy, Cruise Control Main |
| 88200A | Union OR Way, Cruise Control Vacuum |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88235 | Switch Assy, Cruise Control(AUTO DRIVE) Release |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88261A | Sensor, Speed Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
