Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 5 illustrations

Illustrations

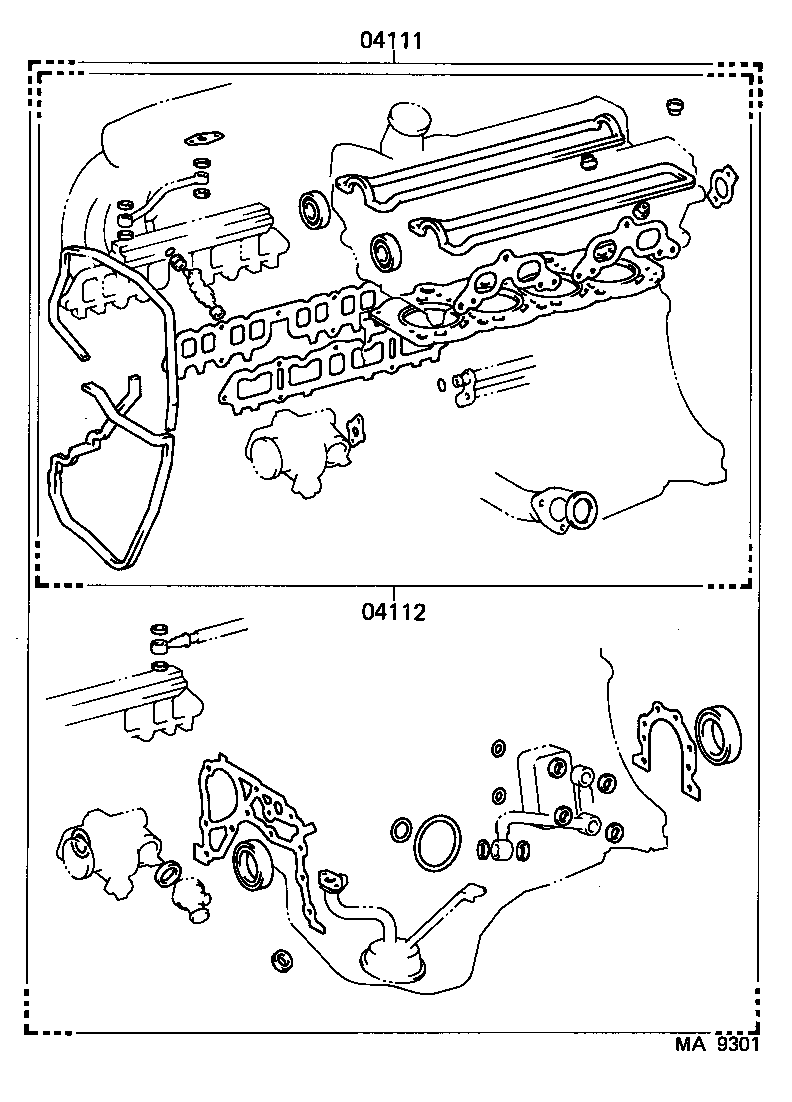

Figure MA7235 MA7235 1987-08 → 1988-05 Figure MA7463 MA7463 1987-08 → — Figure NA0486 NA0486 1988-05 → — Figure MA9167C MA9167C 1987-08 → — Figure MA9301 MA9301 1987-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
