Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 6 illustrations

Illustrations

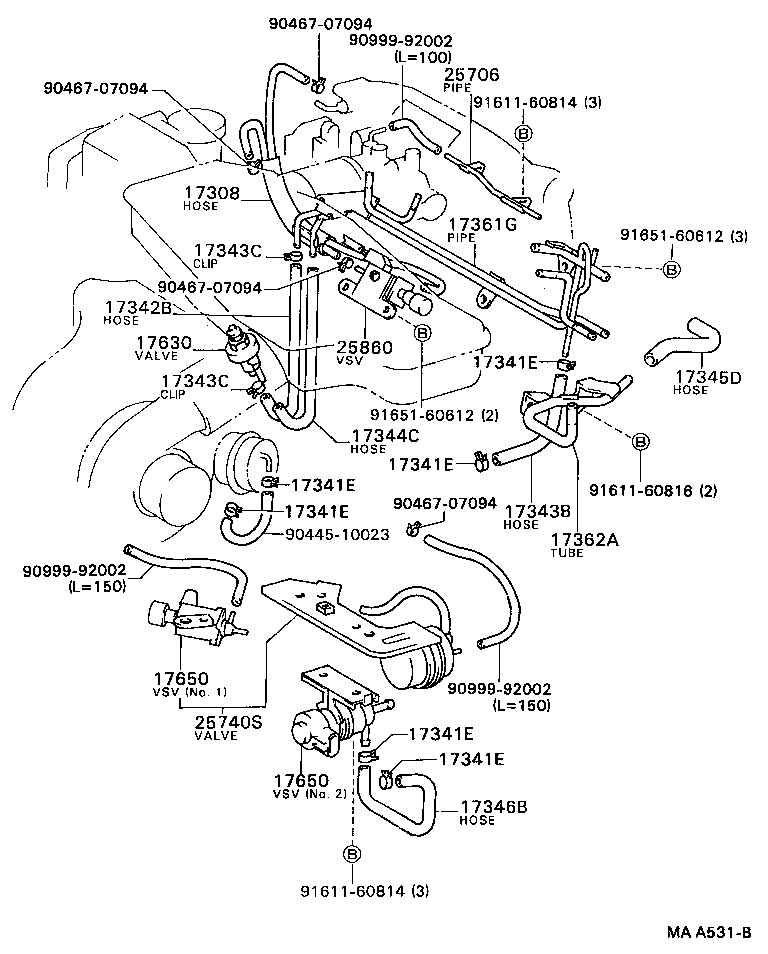

Figure MA9503A MA9503A 1987-08 → — Figure MA9747A MA9747A 1987-08 → 1988-05 Figure MA8248E MA8248E 1987-08 → — Figure MAA753B MAA753B 1988-05 → — Figure MA9748B MA9748B 1987-08 → — Figure MAA531B MAA531B 1987-10 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17645A Plug(FOR IDLE UP PIPE)
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
