Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

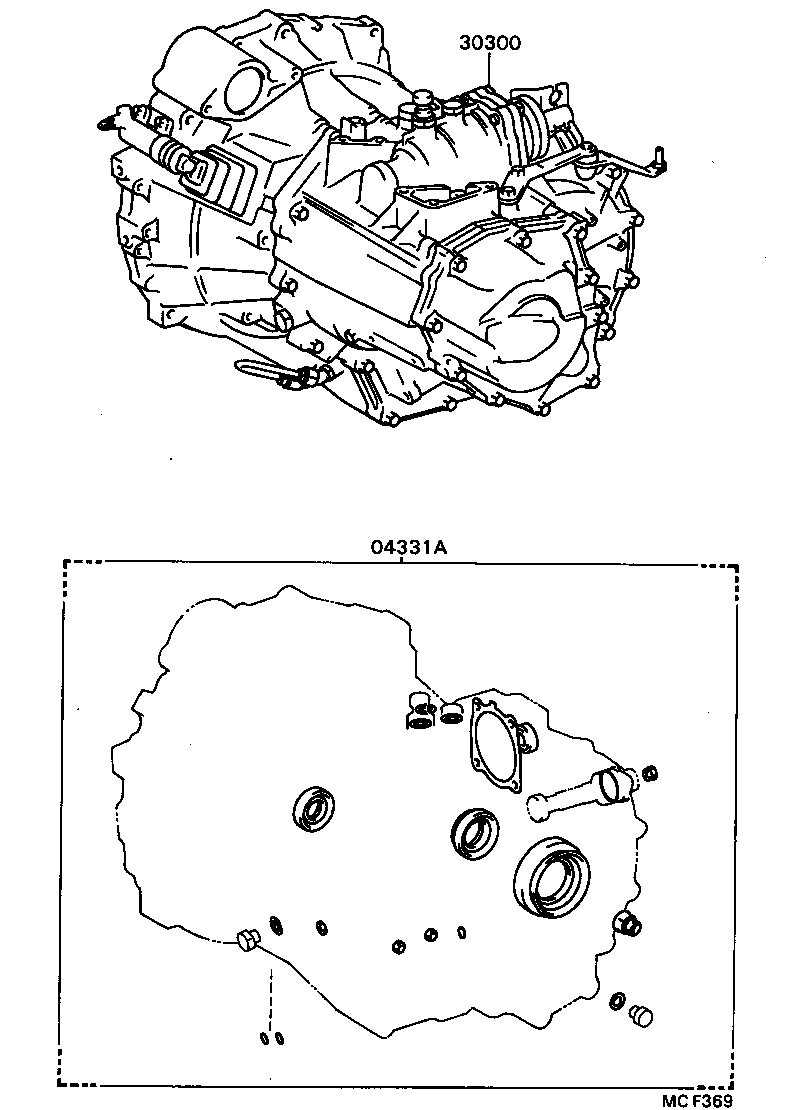

Figure MCD538B MCD538B 1987-08 → — Figure MCF369 MCF369 1987-10 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
