Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

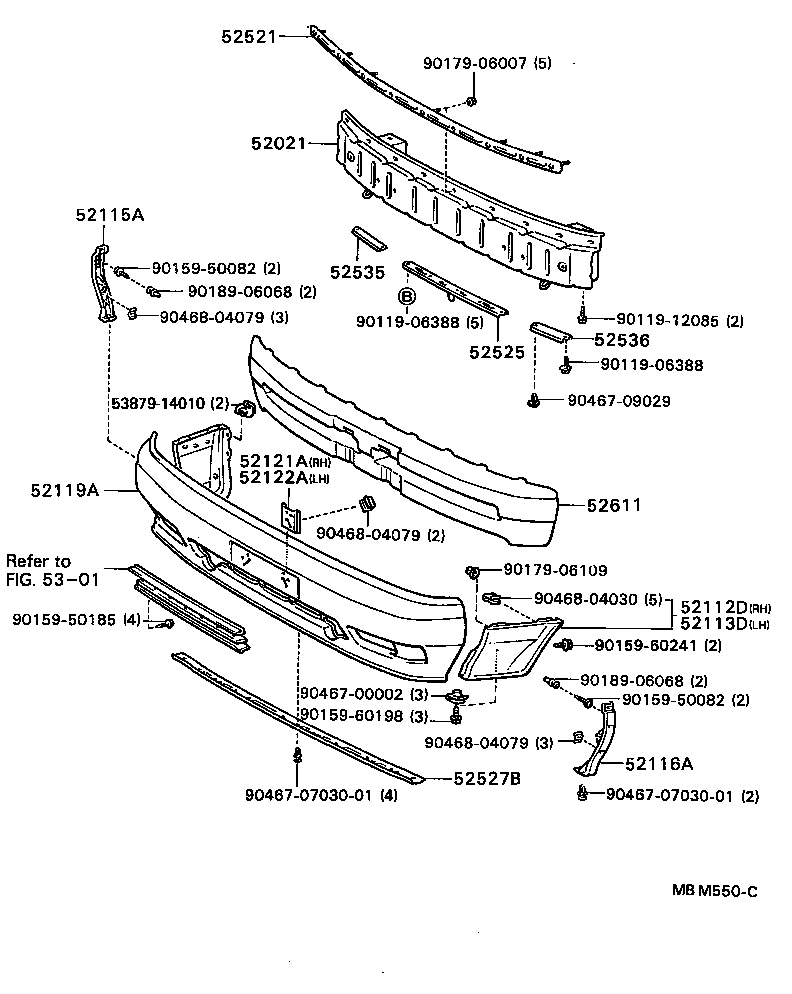

Figure MBL612A MBL612A 1987-08 → — Figure MBM550C MBM550C 1987-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52122A Bracket, Front License Plate Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112A Grille, Radiator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
