Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 2 illustrations

Illustrations

MBL656C 1987-08 → —

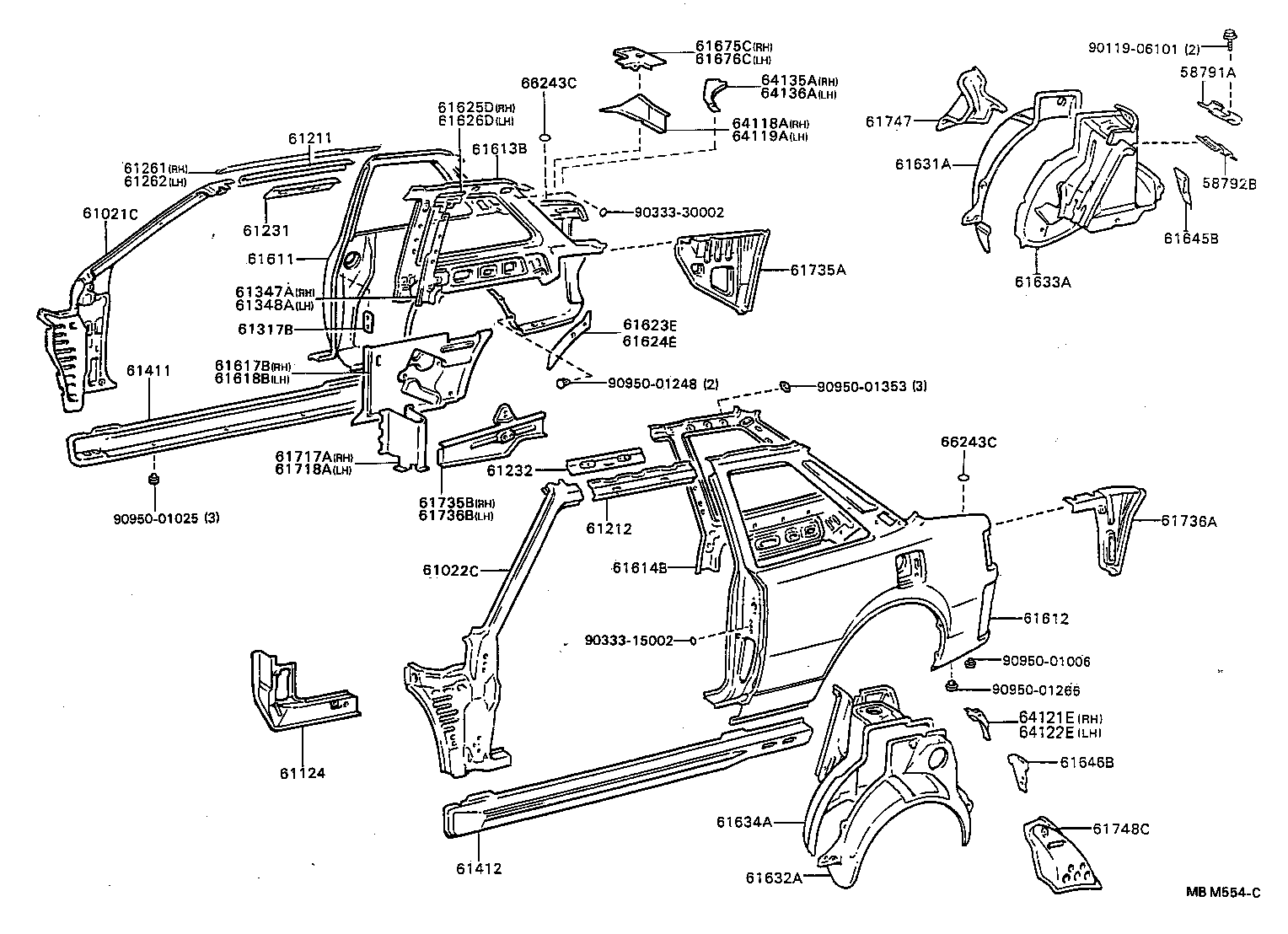

MBM554C 1987-10 → —

Part groups

PNC	Description
58791A	Carrier, Jack
58792B	Support, Jack Carrier
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61124	Panel, Cowl Side Lower, LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61283A	Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61284A	Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61317B	Retainer, Door Lock
61345B	Pillar, Center Body, Inner Lower RH
61346B	Pillar, Center Body, Inner Lower LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61365A	Reinforcement, Belt Anchor TO Center Pillar, NO.3
61367	Reinforcement, Belt Anchor TO Center Pillar, Lower
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613B	Panel, Quarter, Inner Front RH
61614B	Panel, Quarter, Inner Front LH
61617A	Panel, Quarter Inner, Rear RH
61617B	Panel, Quarter Inner, Lower RH
61618A	Panel, Quarter, Inner Rear LH
61618B	Panel, Quarter, Inner Lower LH
61623E	Extension, Quarter Inner Panel, Rear RH
61624E	Extension, Quarter Inner Panel, Rear LH
61625D	Extension, Quarter Panel, Upper Front RH
61626D	Extension, Quarter Panel, Upper Front LH
61627C	Reinforcement, Quarter Inner Panel, RH
61628C	Reinforcement, Quarter Inner Panel, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61637C	Brace, Quarter Wheel House, NO.2 RH
61638C	Brace, Quarter Wheel House, NO.2 LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61667C	Seal, Qaurter Panel, NO.1
61675C	Reinforcement, Quarter Wheel House, Inner Rear RH
61676C	Reinforcement, Quarter Wheel House, Inner Rear LH
61677	Reinforce, Seat Belt Anchor, NO.2 Lower RH
61678	Reinforce, Seat Belt Anchor, NO.2 Lower LH
61682A	Extension, Rear Wheel Opening, LH
61713A	Extension, Roof Side, Outer RH
61714A	Extension, Roof Side, Outer LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61735A	Panel, Roof Side, Inner Rear RH
61735B	Extension, Quarter Panel, Inner RH
61736A	Panel, Roof Side, Inner Rear LH
61736B	Extension, Quarter Panel, Inner LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748C	Brace, Roof Side Inner TO Wheel House, LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61768B	Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61769B	Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
61773A	Patch, Back Door Opening, Lower RH
61774A	Patch, Back Door Opening, Lower LH
62612A	Pad, Quarter Wheel House, NO.2
62615A	Pad, Quarter Wheel House, NO.3
62623E	Pad, Quarter Wheel House, Inner Rear RH
62624E	Pad, Quarter Wheel House, Inner Rear LH
64118A	Reinforcement, Upper Back, NO.4 RH
64119A	Reinforcement, Upper Back, NO.4 LH
64121E	Bracket, Luggage Compartment Door Hinge, RH
64122E	Bracket, Luggage Compartment Door Hinge, LH
64135A	Reinforcement, Back Corner, Outer RH
64136A	Reinforcement, Back Corner, Outer LH
66243C	Protector, Rear Body, NO.1
67812A	Pad, Quarter Panel Silencer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
