Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan
Discontinued model
Data version 1990-03

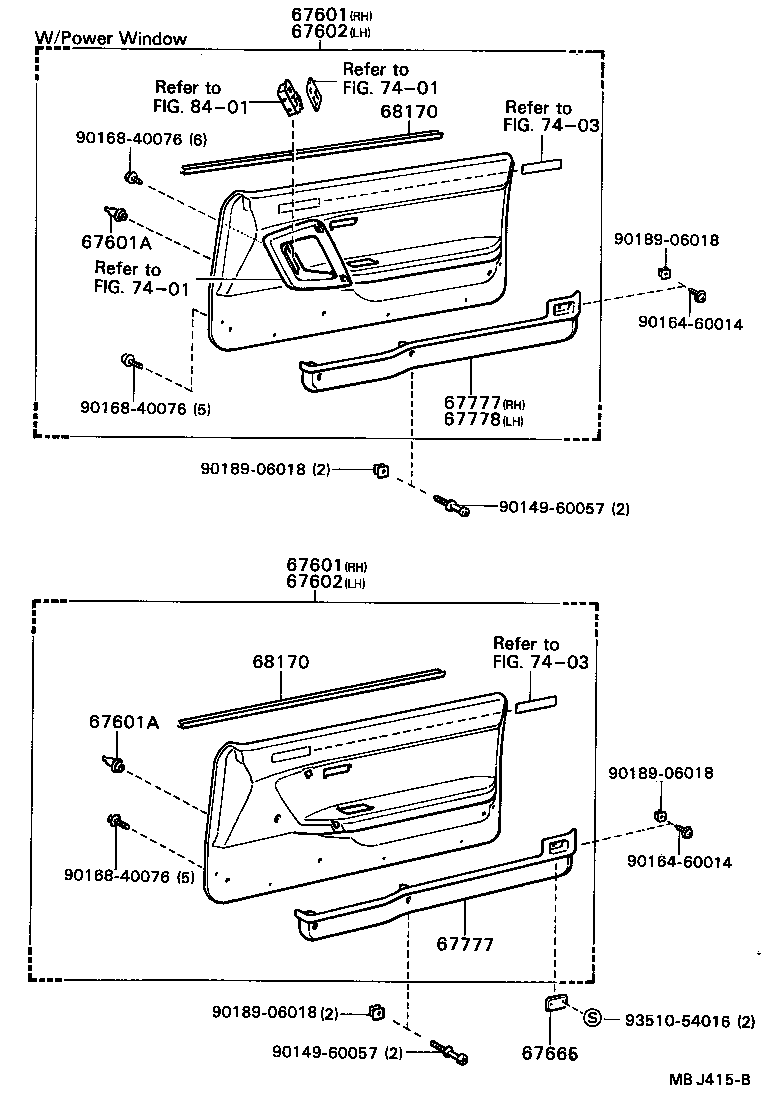

Front Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67496A | Cover, Front Door Front Lower Frame, Upper LH |
| 67513 | Bracket, Front Door Mirror, RH |
| 67514 | Bracket, Front Door Mirror, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67665 | Reflector, Front Door Trim, RH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
