Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

32 part groups · 2 illustrations

Illustrations

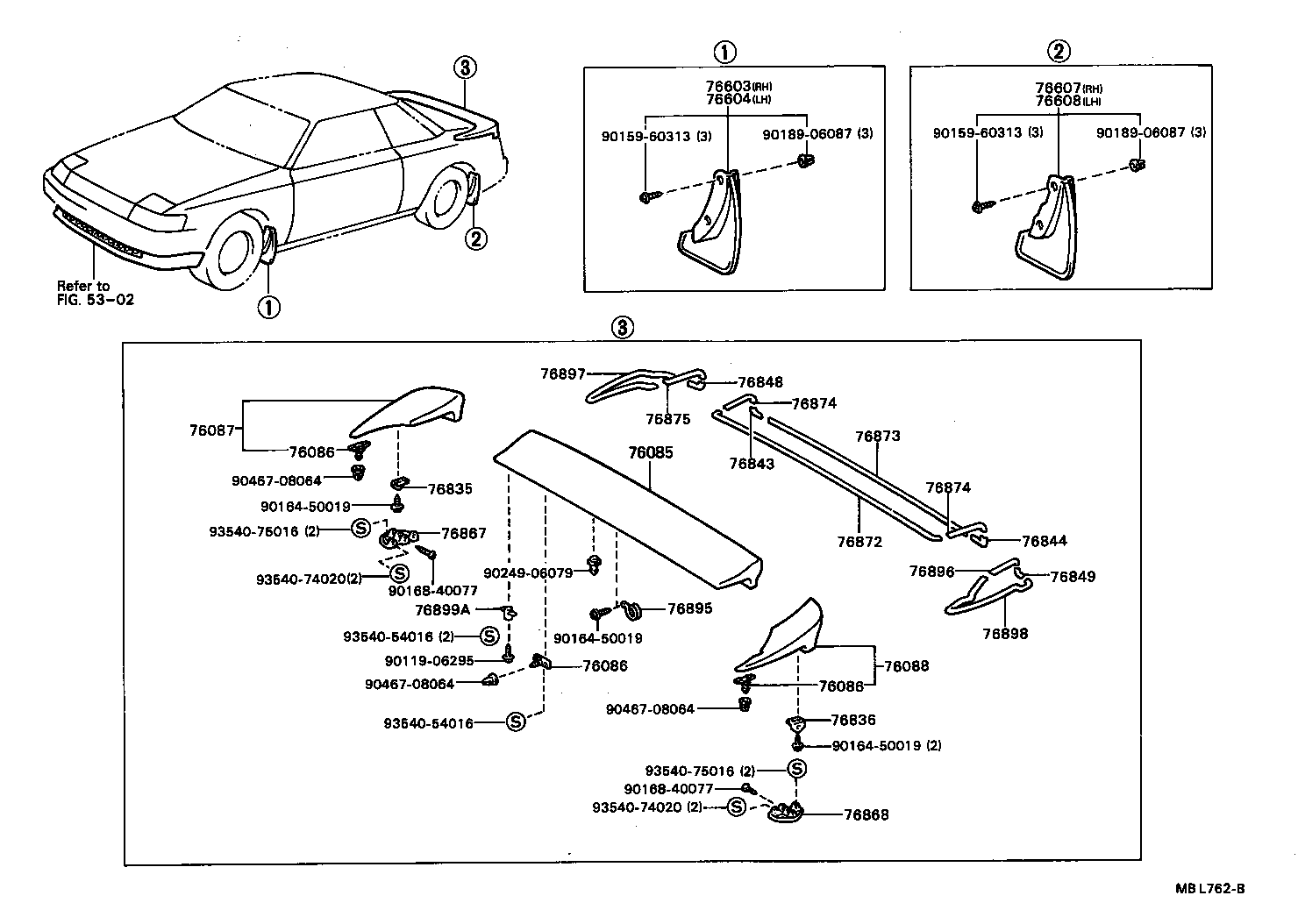

Figure MBS091A MBS091A 1987-08 → — Figure MBL762B MBL762B 1987-10 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76086 Retainer Sub-assy, Rear Spoiler
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76835 Retainer, Rear Spoiler Side, NO.1
76836 Retainer, Rear Spoiler Side, NO.2
76841 Protector, Rear Spoiler Side, NO.5 RH
76842 Protector, Rear Spoiler Side, NO.5 LH
76843 Protector, Rear Spoiler, NO.11 RH
76844 Protector, Rear Spoiler, NO.11 LH
76848 Protector, Rear Spoiler, NO.12 RH
76849 Protector, Rear Spoiler, NO.12 LH
76865 Retainer, Rear Spoiler, NO.1
76867 Retainer, Rear Spoiler Side, RH
76868 Retainer, Rear Spoiler Side, LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76885 Retainer, Rear Spoiler, NO.5
76886 Retainer, Rear Spoiler, NO.6
76895 Protector, Rear Spoiler, NO.5
76896 Protector, Rear Spoiler, NO.6
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76899A Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
